Rockwell Automation Publication 57RF-UM001A-EN-P - September 2011 73
Chapter
7
Software

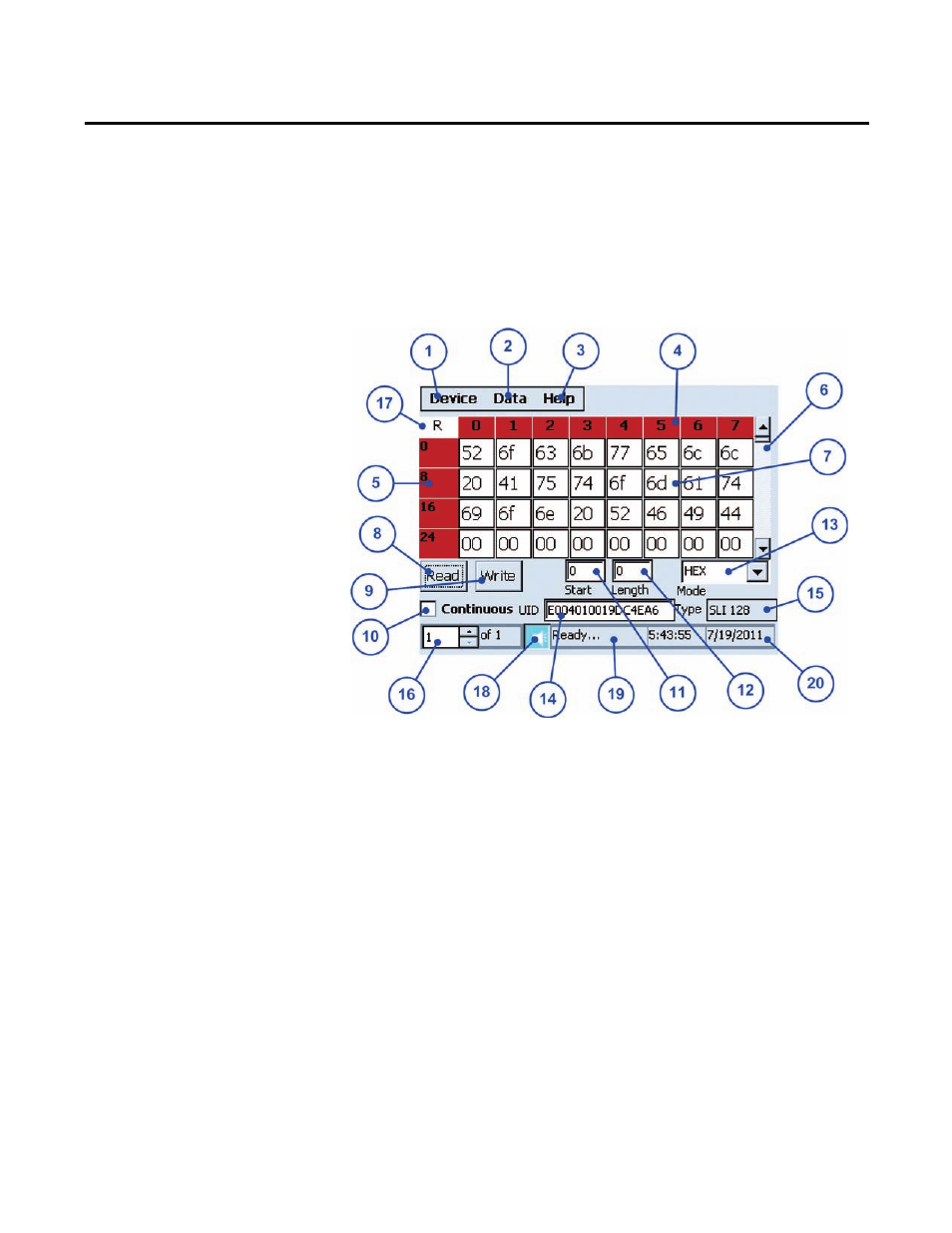

User Interface Screen Elements
1. Device Menu – Use the device menu to change settings, minimize, or exit
the program.
2. Data Menu – Use the data menu to access additional functions such as
Erase, Clear Tag History, Tag Properties, and ASCII characters.
3. Help Menu – Access error codes, version information, and technical
support.
4. Column Headers – Column headers correspond to the byte numbers of
the cells in the top row (0…7).
5. Row Headers – Row headers correspond to the byte number of the cell in
the first column.
6. Scroll Bar – Use to scroll up and down to view tag data displayed on the
screen.
7. Data – The screen displays the data from the last read/write operation. For
decimal, hex, and ASCII mode, eight bytes are shown in each row, and four
rows can be displayed on the screen at a time. If data is displayed in Binary
mode, each row will show 1 byte of data. Individual cells can be edited by
selecting the cell and typing new data using the keypad.
