Using the compact flash slot, Rfid read range – Rockwell Automation 57RF RFID ICODE Handheld Interface User Manual User Manual
Page 27
Rockwell Automation Publication 57RF-UM001A-EN-P - September 2011
27
Chapter 4

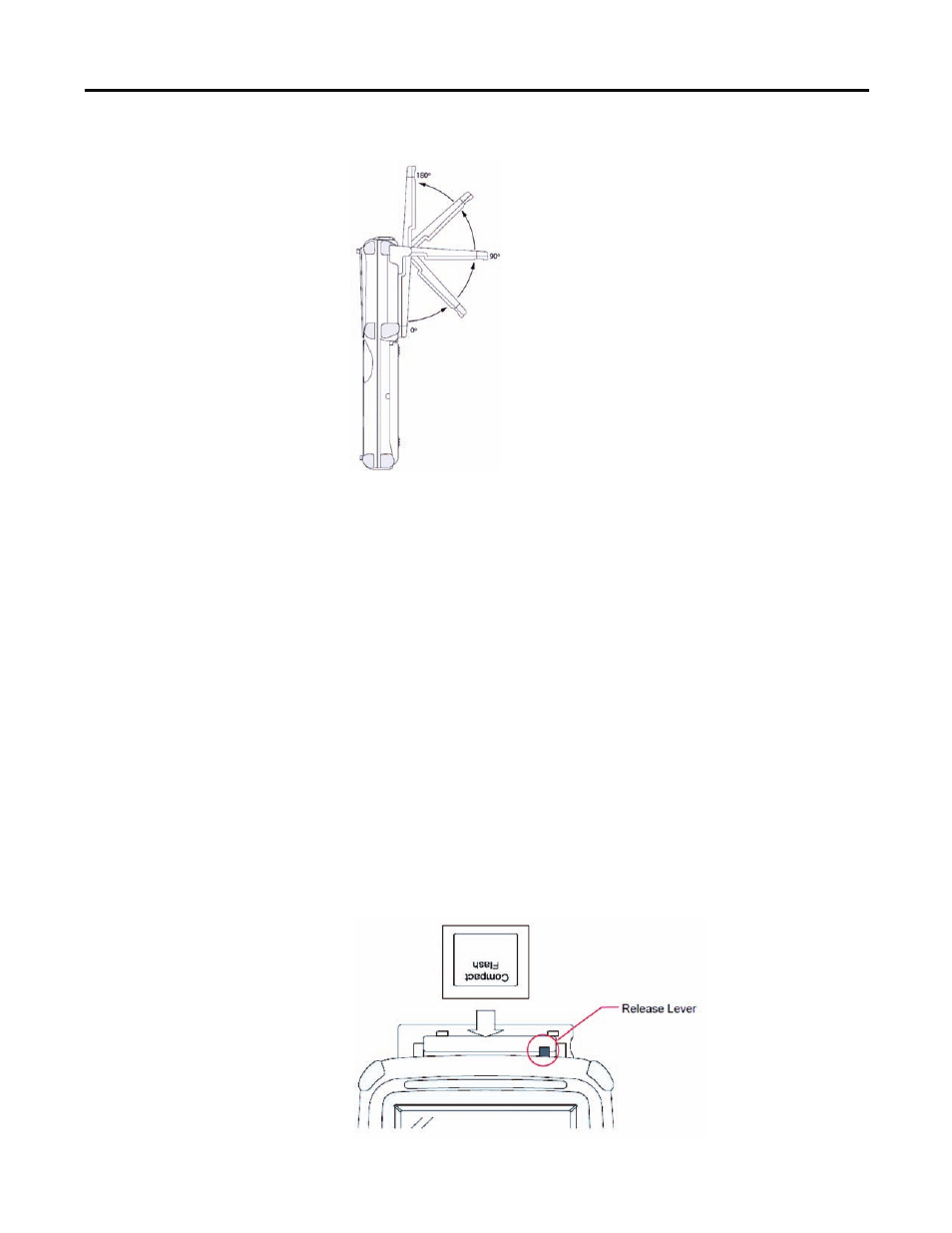

Figure 21 - RFID Read Range
Using the Compact Flash Slot
The Compact Flash slot located on top of the RFID ICODE handheld interface
enables you to utilize Compact Flash and device cards.
If you intend to use a device card, it may also be necessary to install a driver. If so,
make sure the card is Windows CE 5.0 compatible and you have the necessary
drivers. If you are not sure, check with the card manufacturer before attempting
to install the card.
To use the compact flash slot:
1.
If needed, remove any screws from the cover to access the Compact Flash
slot.
2.
Insert the compact flash card into the slot with the front of the display
facing you and the top of the card pointed to the slot until it clicks and the
release lever moves upward.
Figure 22 - Using the Compact Flash Slot
