28 Rockwell Automation Publication 57RF-UM001A-EN-P - September 2011
Chapter 4
3. Close the cover.
4. When inserting memory cards, a “UserCF” folder will appear when you
open My Computer. You can then copy and paste the contents of UserCF
to the other folders on the RFID ICODE handheld interface.
When inserting device cards, the RFID ICODE handheld interface will
attempt to recognize the device. If it finds a driver for the device, the RFID
ICODE handheld interface will display a dialog box for that device.

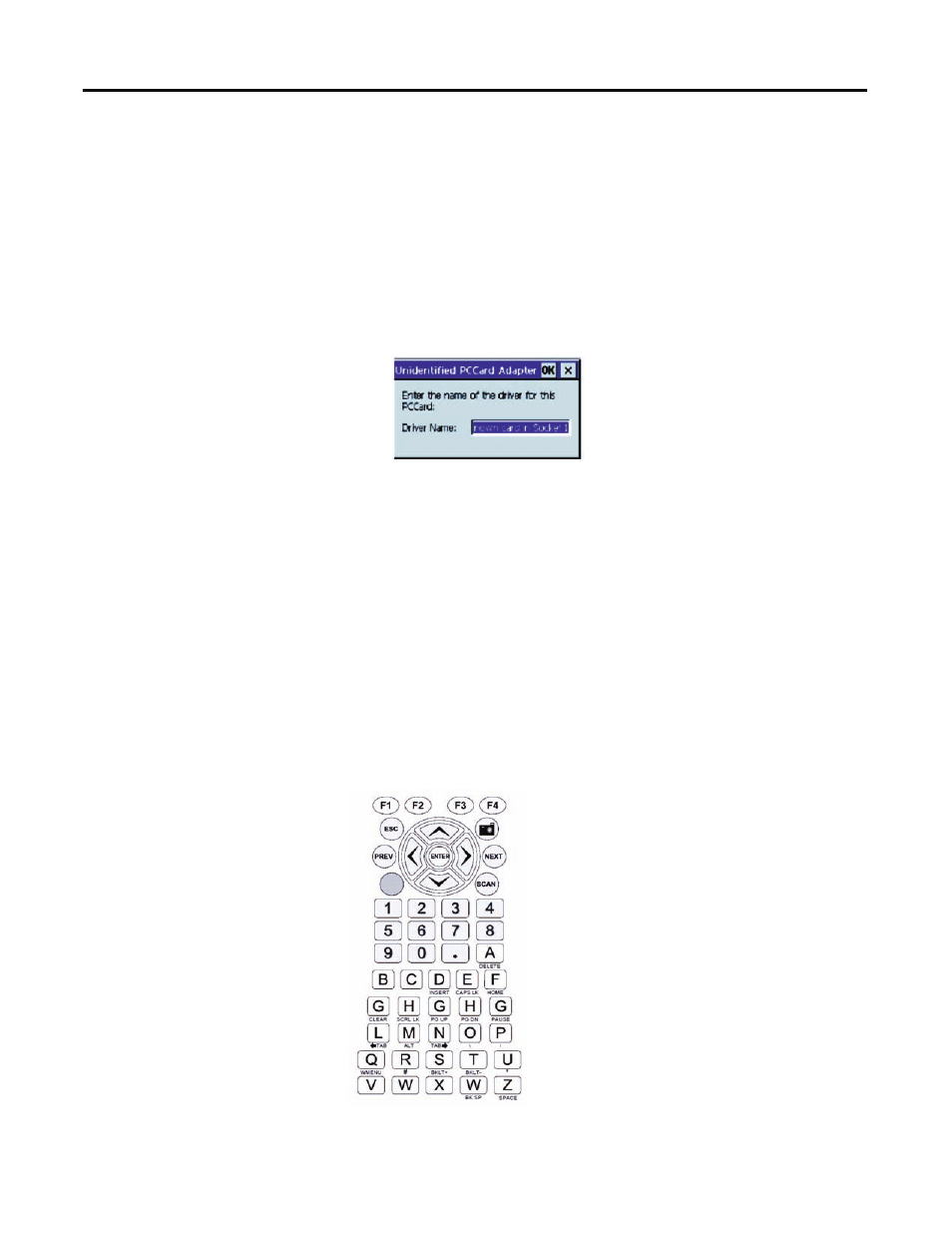

If the RFID ICODE handheld interface cannot find a driver for the
device, it will display the following dialog box:
5. If the correct card type appears, you can enter the appropriate information
in the dialog box required and then click OK to complete the installation.
6. To remove a card from the slot, simply push the card release lever down and
remove the card.
Data Entry Keypads
52-Key Pads
This joystick style keypad with bezel nomenclature features easy screen
navigation and alphanumeric keypad entry and four programmable function keys.
Users can also access navigation keys and backlight control via the SHIFT key.
Figure 23 - Standard 52-key Pad
