Rockwell Automation 57RF RFID ICODE Handheld Interface User Manual User Manual
Page 22
22
Rockwell Automation Publication 57RF-UM001A-EN-P - September 2011
Chapter 4
To charge the Nickel Metal Hydride (NiMH) battery pack:
1.
Plug the power jack of the battery charger/power supply into the
corresponding cables connector as shown below.

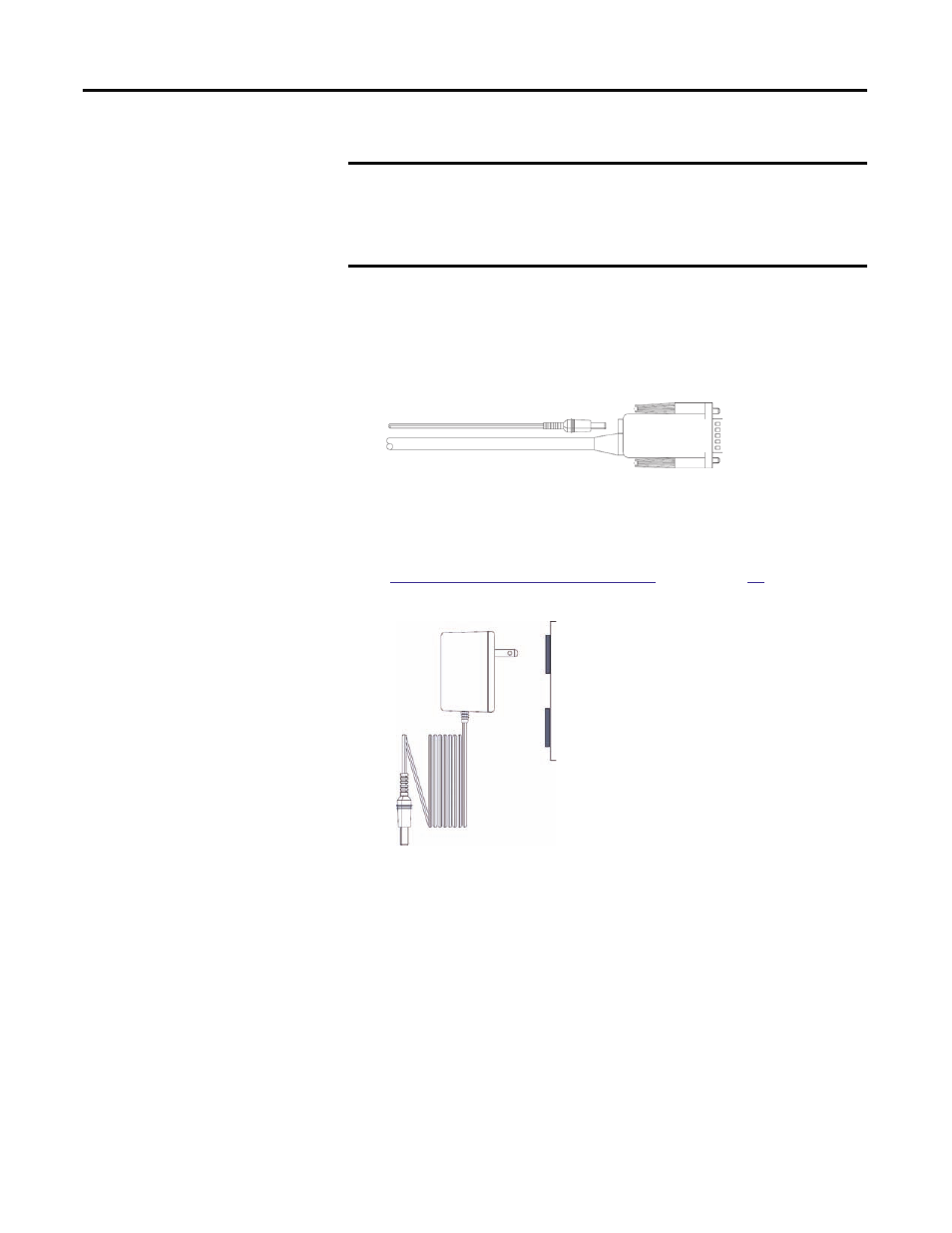

Figure 17 - Power Jack
2.
Plug the interface cable into the connector on the bottom of the RFID
ICODE handheld interface.
3.
Plug the battery charger/power supply into a power outlet. The Charge
LED should turn on, indicating that the batteries are charging (see
Charge/Low Battery Indicator Functions
table on page
Figure 18 - Power Supply and Outlet
4.
Once the battery is fully charged (approximately four hours), you can
disconnect the power supply and run the RFID ICODE handheld
interface exclusively on battery power.
IMPORTANT
Because the internal battery charger senses several conditions,
including temperature, you should charge the unit away from any
known, or potential, heat sources. Units exposed to temperatures in
excess of 110 °F (43.3 °C) during the charge cycle may experience
incomplete charging and reduced operating time per charge.
Power Supply/Battery Charger
To Unit
