12 Rockwell Automation Publication 57RF-UM001A-EN-P - September 2011
Chapter 2
ii. Plug one end of the detachable AC cord into the power supply and
the other end into a power outlet as shown below.

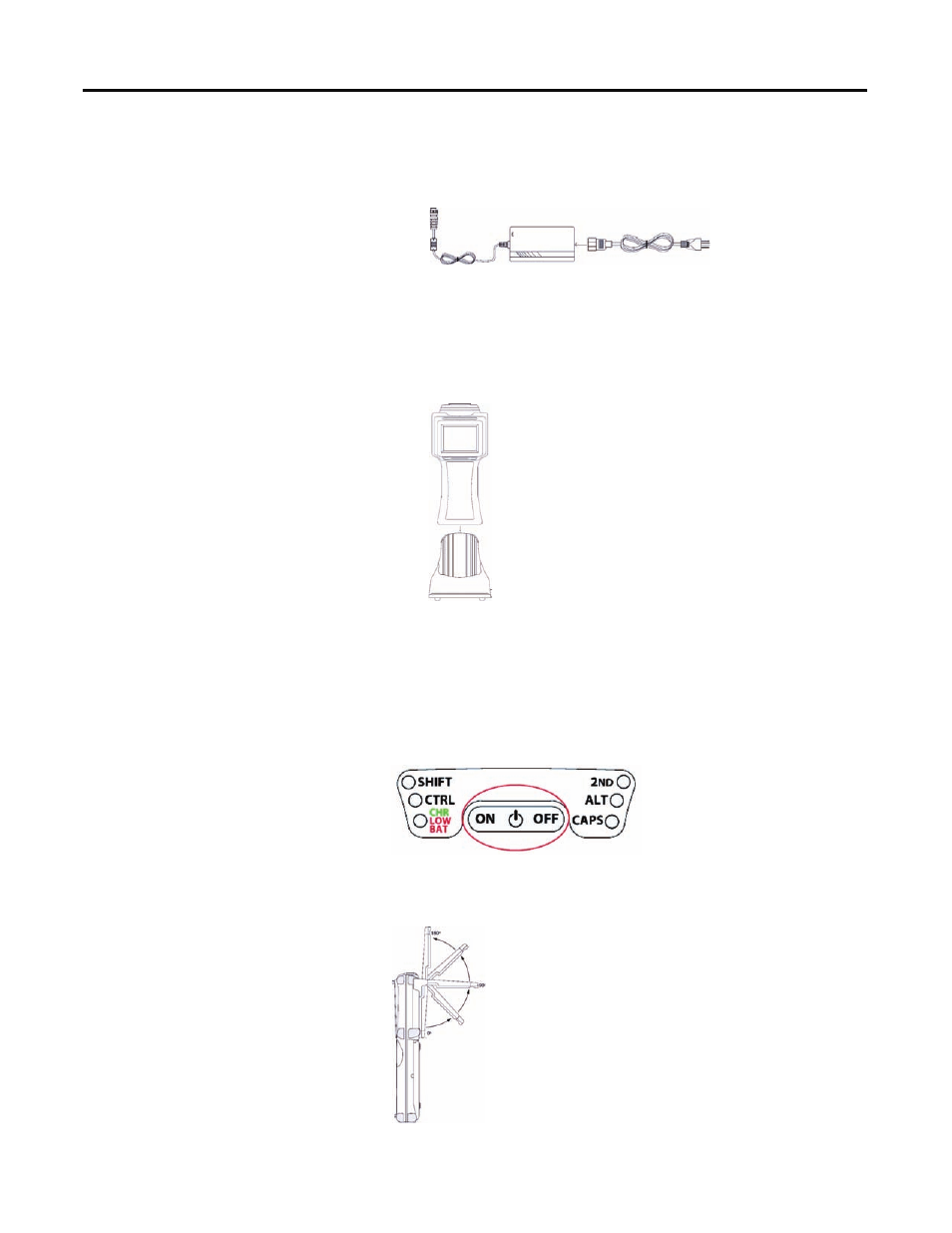

Figure 4 - Power Supply Cord
iii. Remove the rubber cover from the RS-232 connector on the bottom
of the RFID ICODE handheld interface.
iv. Place the RFID ICODE handheld interface in the charging cradle as
shown below. The Charge LED should turn on, indicating that the
batteries are charging.
Figure 5 - Interface into Charging Cradle
2. The Charge LED will blink green when the RFID ICODE handheld
interface is fully charged. Unplug the unit or remove it from the charging
cradle.
3. Press and hold the On/Off switch for one second.
The unit should turn on and begin displaying the boot-up process. After
approximately 15 seconds, the Windows CE 5.0 desktop should appear.
Figure 6 - On/Off Switch
4. Flip the RFID module 180° as shown below. This will provide optimal tag
reading performance.
Figure 7 - RFID Module
