11 Setup program
90
11.6 OnlineChart
The OnlineChart function is available as an option for the setup program (from version
216.03.xx). You can use this function to plot a maximum of 8 analog and 4 binary channels
(sampling rate of 5 seconds) and record them over period of 14 days. The recorded data is
saved together with the setup file.
To activate the OnlineChart, use the menu S
CREEN
> O
NLINE
C
HART
for example.

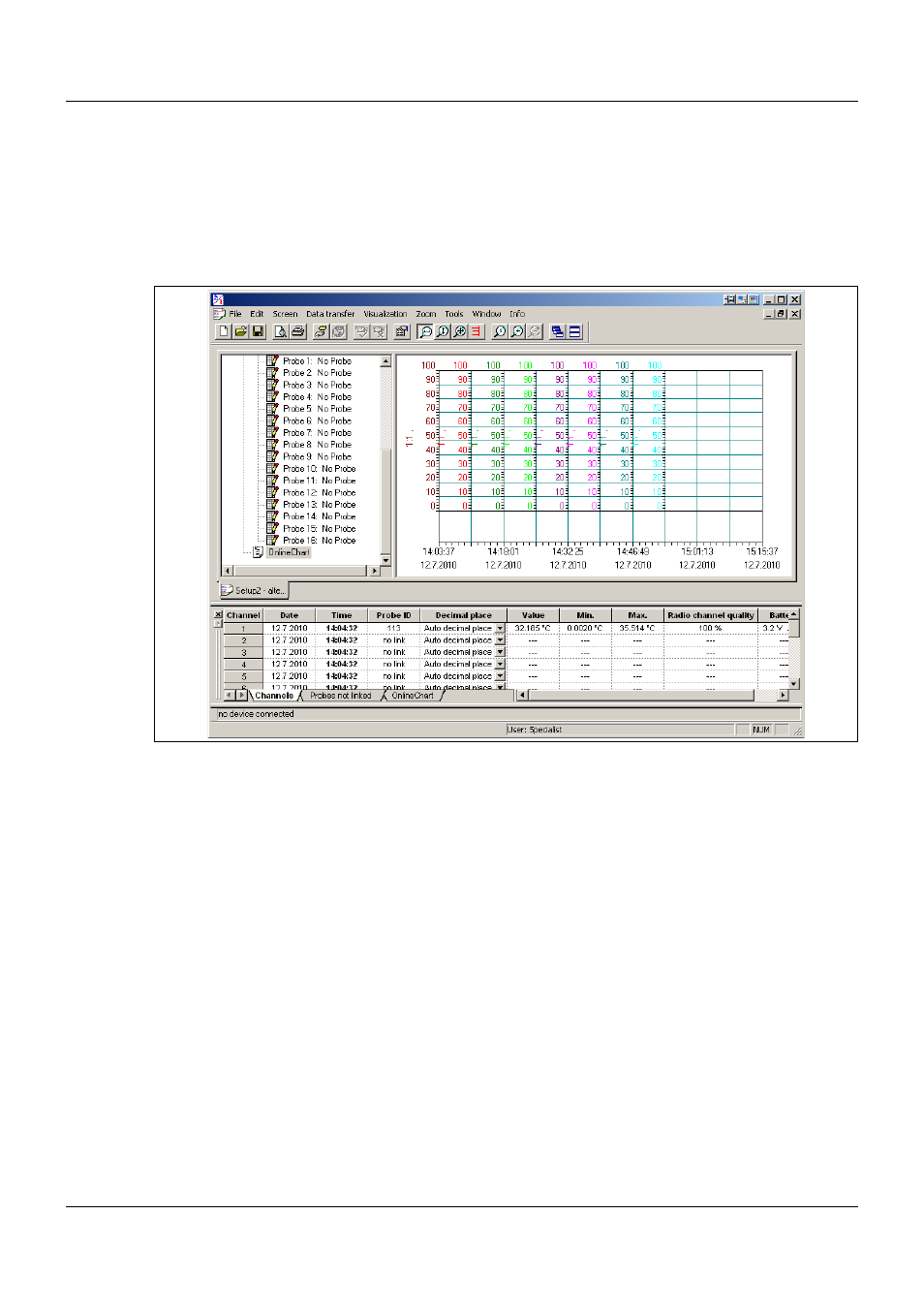

Figure 40: OnlineChart after the first start
