9 Term definition
72
9.1.6 Modbus remote control values FLOAT 1 to 4
Remote control values can be transmitted via the interface by a Modbus master (e.g. PLC) and
displayed and processed by a receiver.

Operating manual B 902931.2.0 "Modbus interface description"
If the analog outputs are directed to these control variables via a selector, the Wtrans receiver
can also be used as a 4-channel analog output module.
This means that control variables calculated by a PC program can be supplied in the process.
Simultaneous operation as a 16-channel wireless reception module and 4-channel analog out-
put module is also possible (see Figure 31).

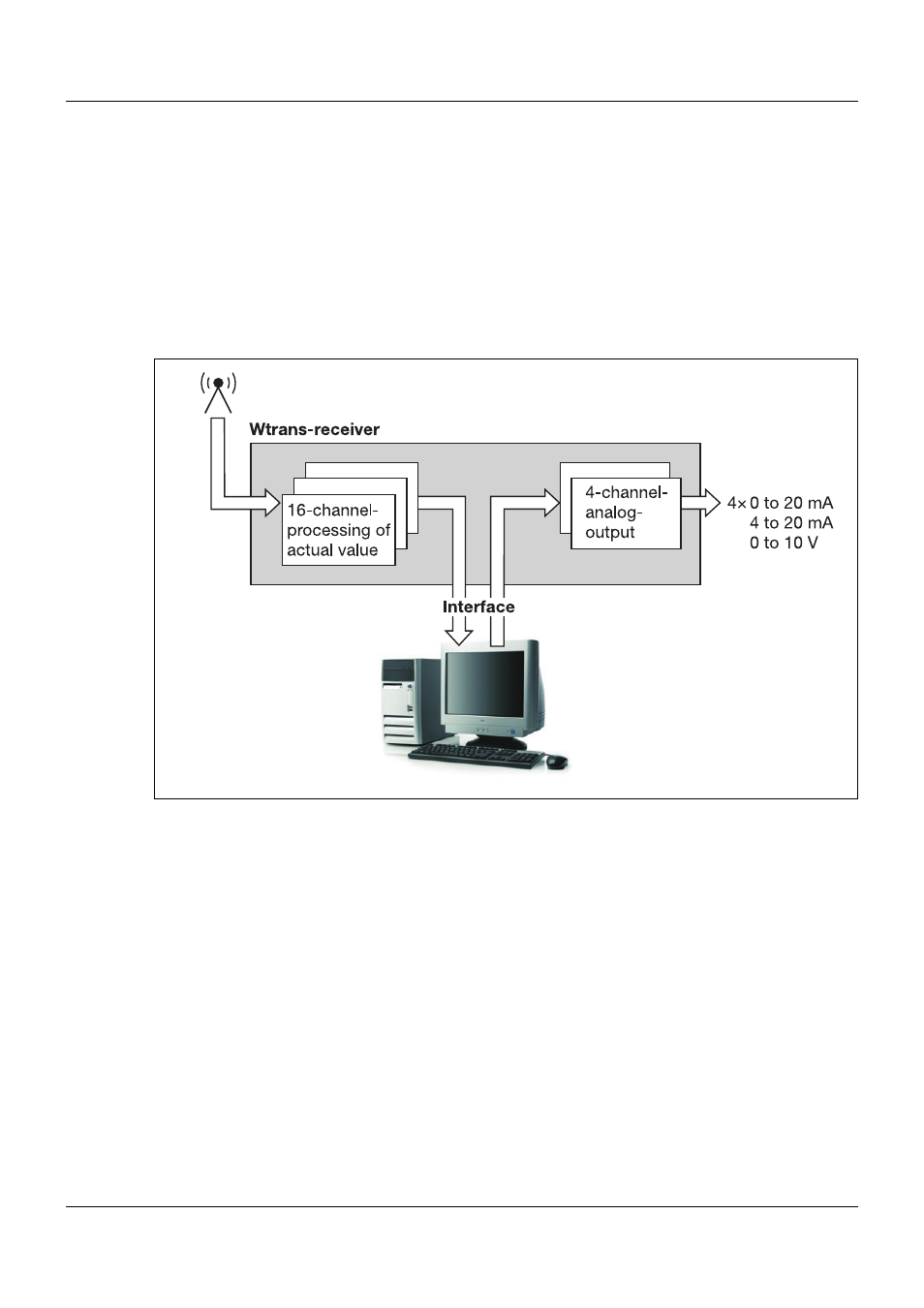

Figure 31: PC with visualization/control software
