4 Mounting
26
4.3 Mounting the receiver

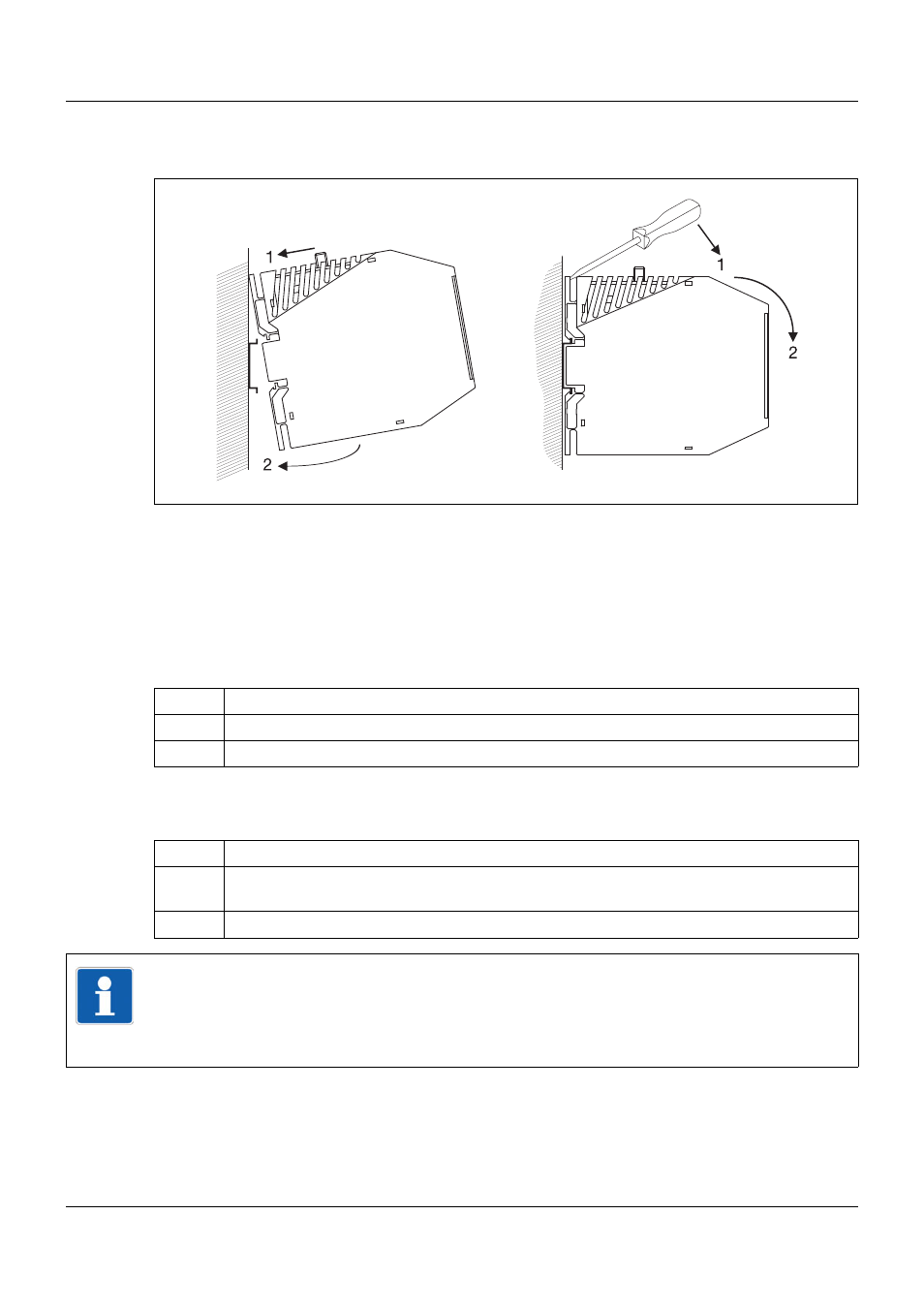

Figure 12: Mounting (left) and dismounting (right) of the receiver
Fastening the receiver on the DIN rail
The receiver is intended for mounting on a 35 mm DIN rail according to DIN EN 60715. The
receiver is mounted/dismounted as follows:
Mounting
Procedure:
Dismounting
Procedure:
Step Action
1 Hook the case into the DIN rail from above.
2 Swing the case downward and against the wall until it engages.
Step Action
1 Insert a suitable screwdriver into the unlocking slot
and push toward the device.
2 Swing the device out of the DIN rail from below and remove.
TIP!
At the mounting site, ensure a minimum clearance of 100 mm above the device to allow the
access to the unlocking slot required for dismounting with a screwdriver. Maintain a minimum
clearance of 150 mm if the antenna is fitted directly on the receiver. Several receivers can be
mounted next to each other.
