6 Display and key functions
6.2 Startup level (In)
(Allocating the transmitter ID to a channel)

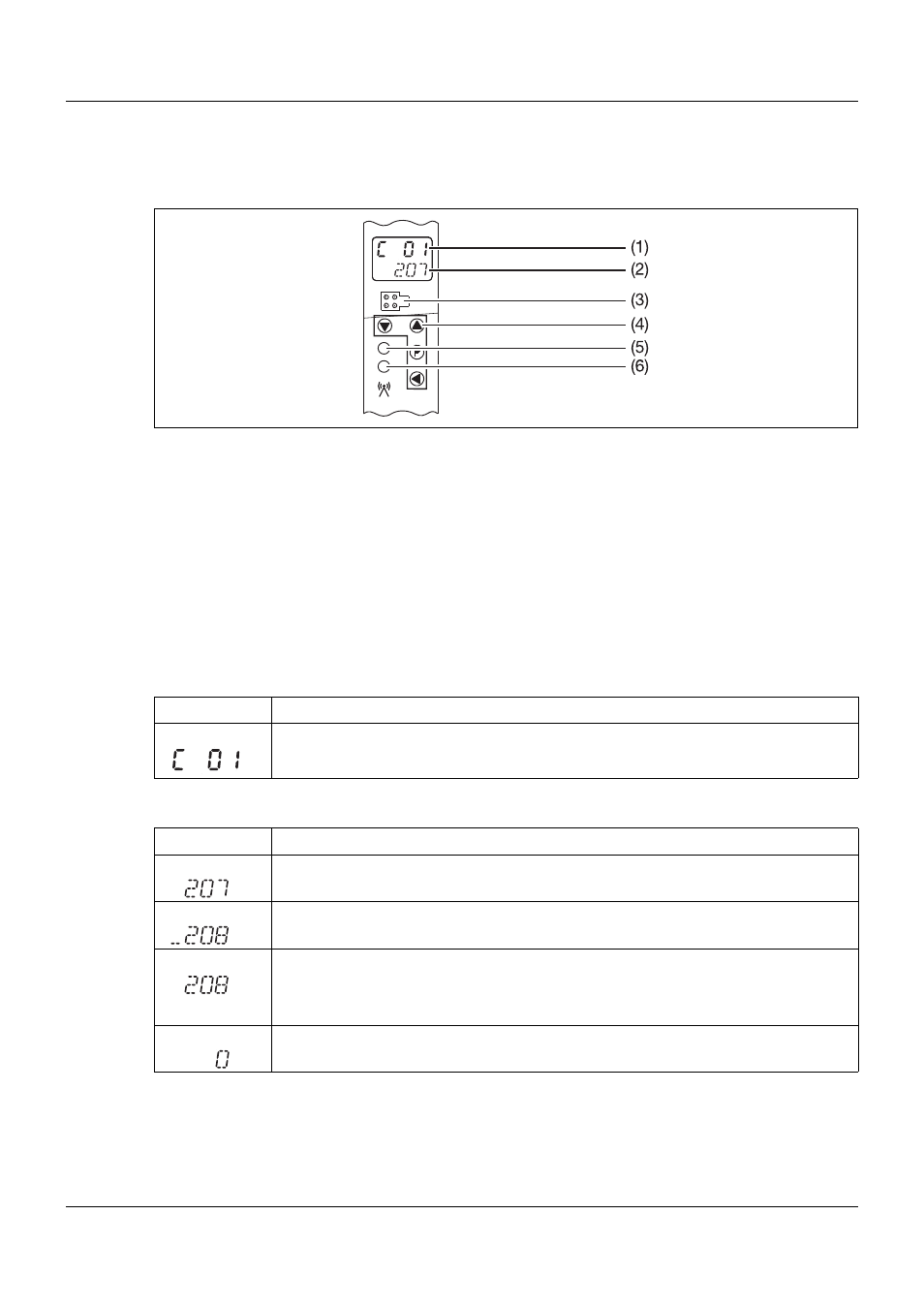

Figure 17: Partial front view of the receiver in the startup level
Top line, 4 digits
Bottom line, 5 digits
(1) 7 segment LCD display,
4.5 mm, 4 digits
(4) Function keys and key combinations
(2) 16 segment LCD display,
4.0 mm, 5 digits
(5) Bicolor LED
- Green light = operating display
- Red flashing light = collective alarm
(3) Setup interface (6) Yellow LED briefly flashing
- Receipt monitoring for each wireless tele-
gram from the transmitter
Display Function
Display of the current channel C01 to C16
Display Function
Display of the transmitter ID linked to the current channel
Position display when transmitter ID is specified by editing digit by digit
(flashing)
Display of the transmitter ID from the list of IDs received but not yet linked
Display when the transmitter ID list is empty or when no transmitters on the channel
are linked
