11 Setup program
11.3 Establishing the connection between the PC and receiver
The receiver and PC are connected via a PC interface TTL/RS232 converter and adapter
(socket), or USB/TTL converter and adapter (socket).
TTL/RS232

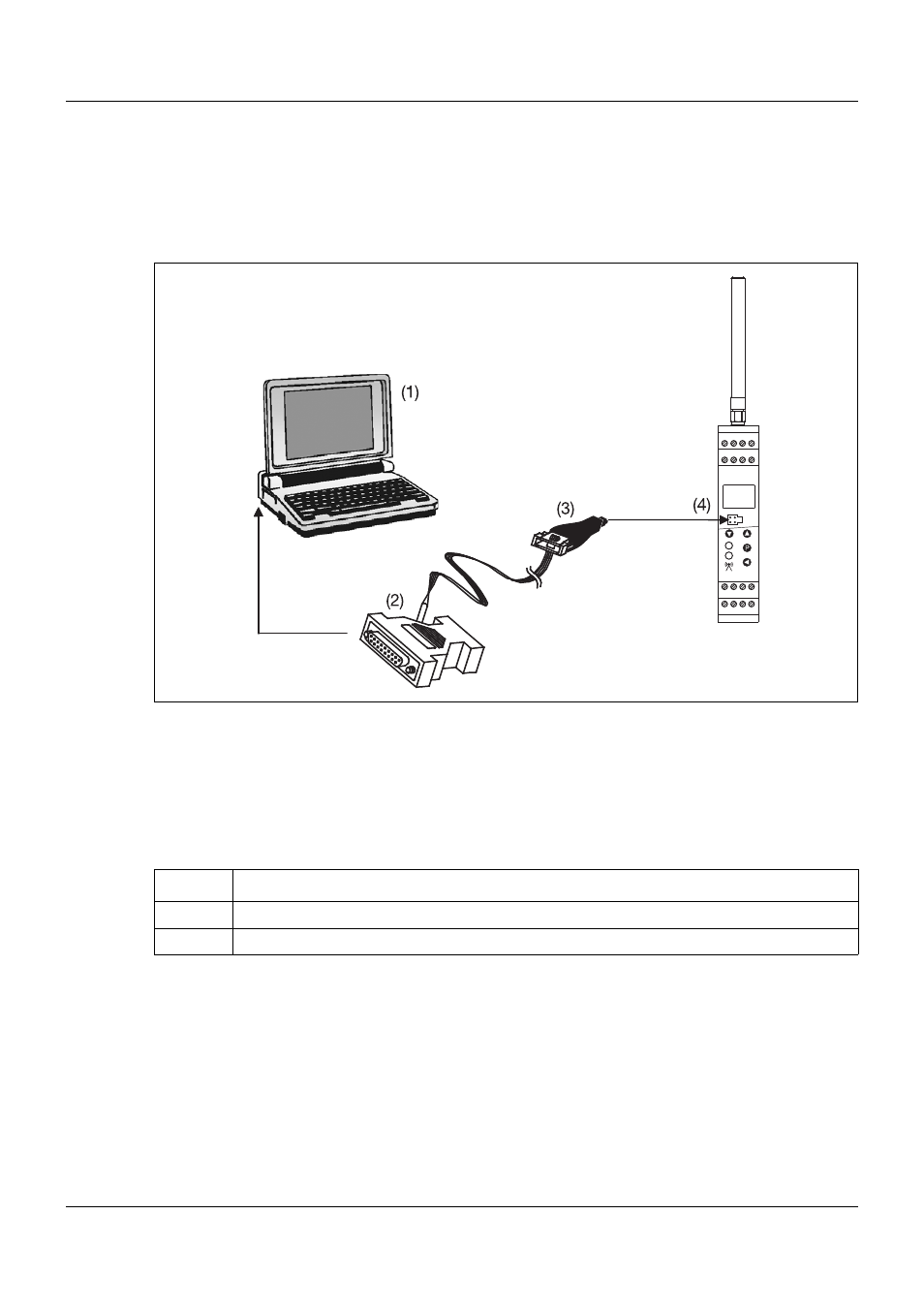

Figure 36: Establishing the connection between receiver and PC
via TTL/RS232 converter and adapter socket
Procedure:
(1) PC (3) Adapter socket, 4-pin
(2) RS232 connector (4) Receiver interface
Step Action
1 Connect the RS232 connector (2) to the PC (1).
2 Connect the 4-pin adapter socket (3) to the interface of the receiver (4).
