5 Electrical connection
32

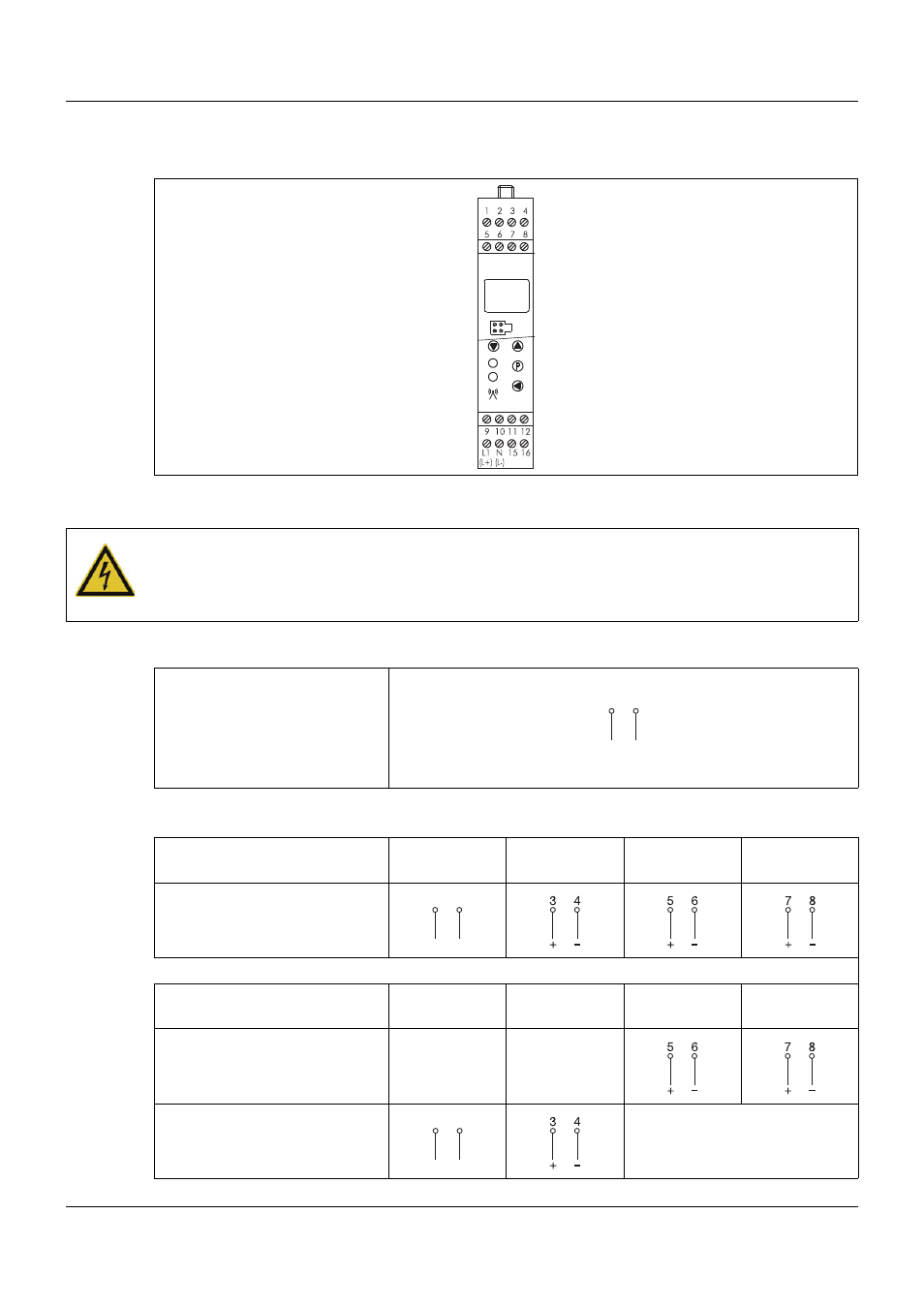

5.2 Connection diagram
Figure 15: Front view with terminal designation
Voltage supply
Outputs
DANGER!
The electrical installation may carry voltage.
Risk of electrocution.
Electrical connection must be performed by qualified personnel.
Voltage supply
according to nameplate:
L1 and N
at AC 110 to 240 V,
L+ and L-
at AC/DC 20 to 30 V
L1
(L+)
N
(L-)
L1
(L+)
N
(L-)
Basic type 902931/10 Analog
output 1 Analog
output 2 Analog
output 3 Analog
output 4
Voltage 0 to 10 V or current
0(4) to 20 mA
Basic type 902931/30 Relay
output 1 Relay
output 2 Analog
output 3 Analog
output 4
Voltage 0 to 10 V or current
0(4) to 20 mA
Relay
N/O contact, configurable as
N/C contact
1 2
– +
1 2
– +
