4 mounting – JUMO 902931 Wtrans Receiver with Wireless Data Transmission Operating Manual User Manual
Page 28
4 Mounting
28
4.4.2
Mounting the antenna on the holder for wall mounting

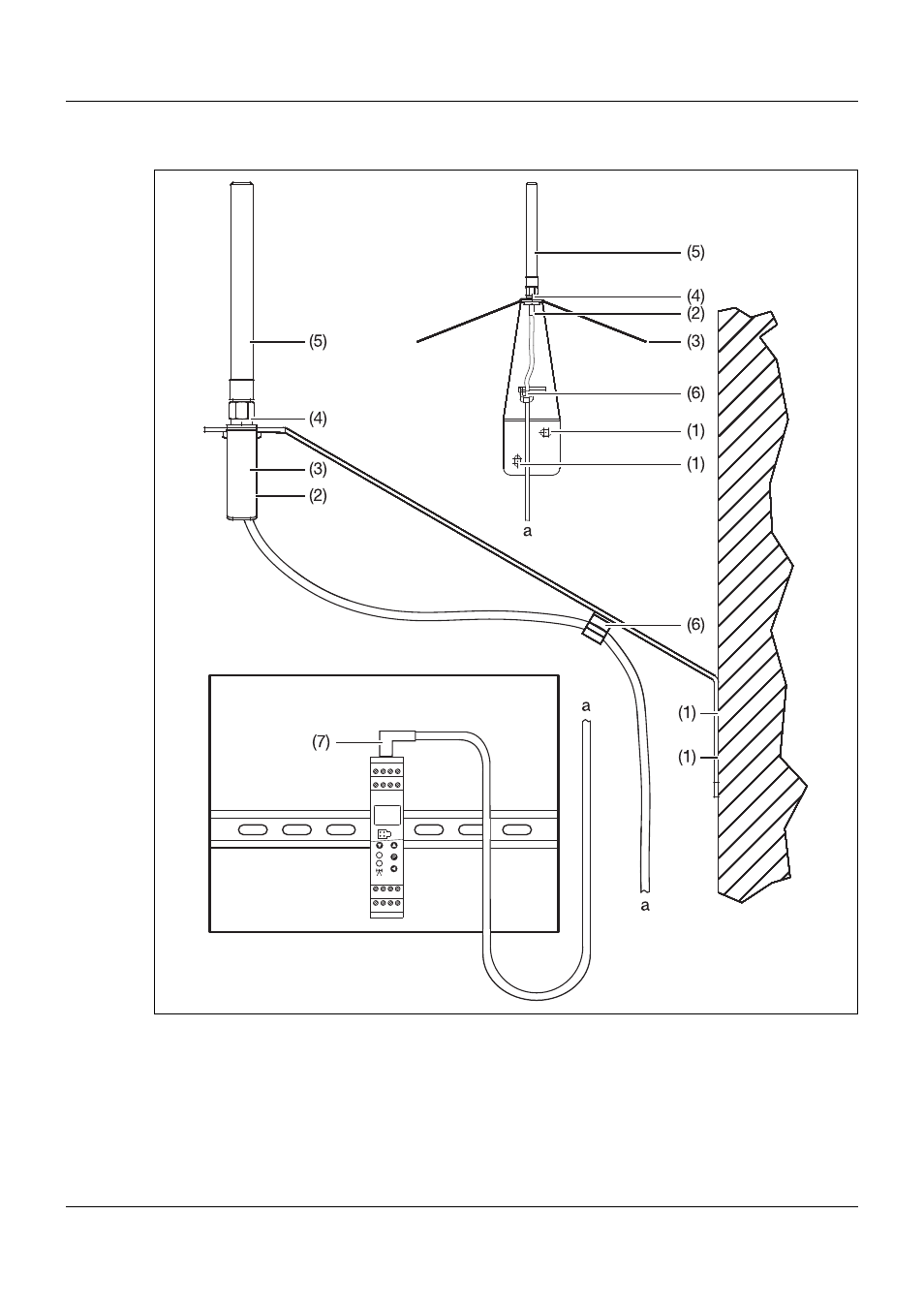

Figure 14: Mounting the antenna on the holder for wall mounting
(1) Drilled holes for wall holder fastening
(5) Lambda/4 antenna
(2) Screw-type connection of the antenna cable
(6) Cable guide for antenna cable
(3) Antenna antipole
(7) SMA angle connector of the antenna cable
(4) Counter nut M10
