8.1.2 Manual assignment of a transmitter ID to a channel

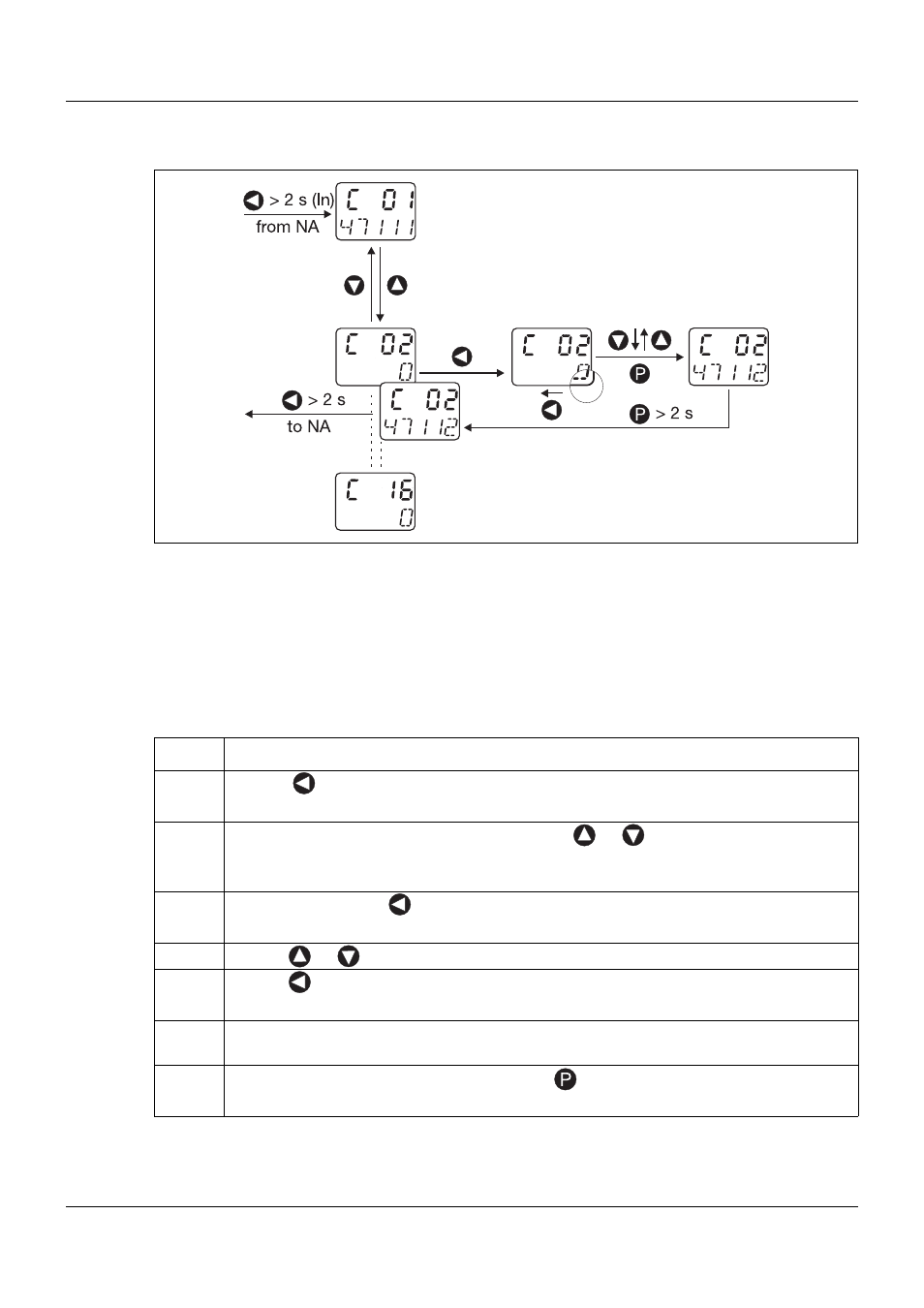

Figure 26: Manual assignment of a transmitter ID to a channel
Use this process if the receiver is to be set up before the transmitters are commissioned. The
transmitter ID (max. 5 digits) is applied to the the transmitter ex works and can be manually
entered for a receiver channel. You can use the function keys to assign the relevant transmitter
to a receiver channel. This ensures clear assignment of a transmitter (the measured value) to
the selected receiving channel. Proceed as described below to link the transmitter.
Procedure:
Step Action
1 Hold the key for > 2 s to change from the normal display to the startup level (In).
The display changes to the startup level.
2 Select the receiver channel to be linked using the or keys
(in Figure 26, channel 2).
0 appears on the right in the bottom line of the display.
3 Initiate editing with the key.
The lower segments of the number 0 on the right flash.
4 Use the or keys to edit the digits.
5 Use the key to confirm the first digit.
The lower segments of the second digit from the right flash.
6 Repeat steps 3 and 4 until all digits have been edited
(minimum 1 digit, maximum 5 digits).
7 Confirm the transmitter ID to be linked with the key.
The entire transmitter ID that was entered flashes.
