ContaminationSensor CS1000 Analog Output (ANAOUT)
HYDAC Filtertechnik GmbH en Page 73 / 100
BeWa CS1000 3247149n en 2009-02-04.doc 2009-02-04
NAS 2 / NAS 5 / NAS 15 / NAS 25 ( NAS 2/NAS 5/NAS 15/NAS 25 )
The NAS x setting enables the value of a class to be continuously output via the
analog output.
NAS + T ( NAS+T )

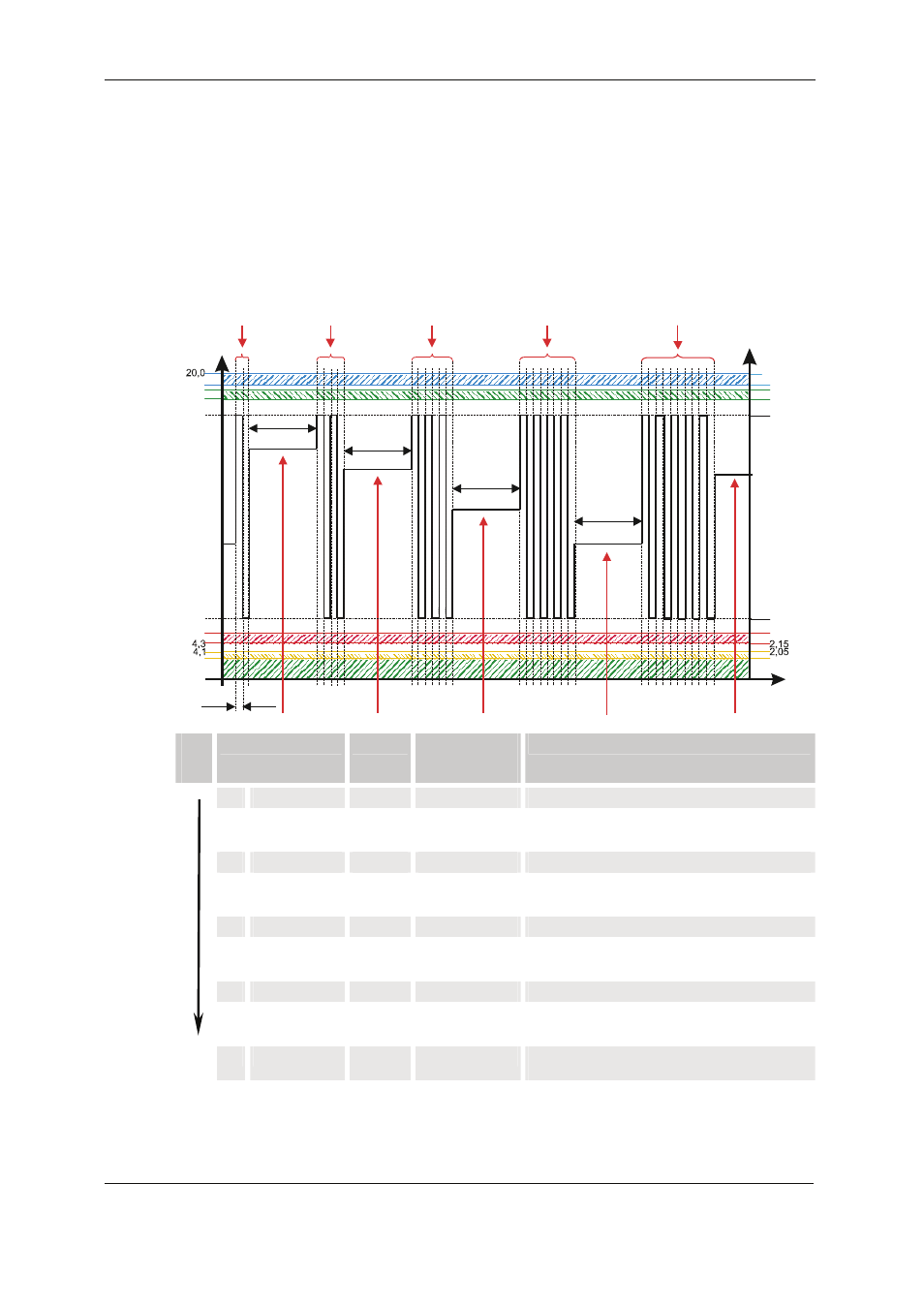

The NAS+T signal consists of 5 measured values which are transmitted time-coded
with the following time slices:
4,0 2,0
I (mA)
1
2 4 6 8 10
3 5 7 9
U (V)
time (ms)
4,8
19,2
High High
Low
Low
300
3000
3000
3000
3000
2,25
2,4
9,6
4,5
9,75 19,5
9,9
10,0
9,85 19,7
0,0
19,8
Ti
me
Signal Size Signal duration
per pulse
in ms
Current (I) / Voltage (U)
1 Identifier 2 µm 300 High / Low
2 Measured
value
2 µm 3000
Current for measured value
3 Identifier 5 µm 300 High / Low / High / Low
4 Measured
value
5 µm 3000
Current for measured value
5 Identifier 15 µm 300 High / Low / High / Low / High / Low
6 Measured
value
15 µm 3000
Current for measured value
7 Identifier 25 µm 300 High / Low / High / Low / High / Low / High / Low
8 Measured
value
25 µm 3000
Current for measured value
9 Identifier T 300 High / Low / High / Low / High / Low / High / Low /
High / Low
10 Measured
value
T 3000
Current for measured value
