ContaminationSensor CS1000 Operating the CS1000 per keyboard (Only CS1x2x)
HYDAC Filtertechnik GmbH en Page 33 / 100
BeWa CS1000 3247149n en 2009-02-04.doc 2009-02-04

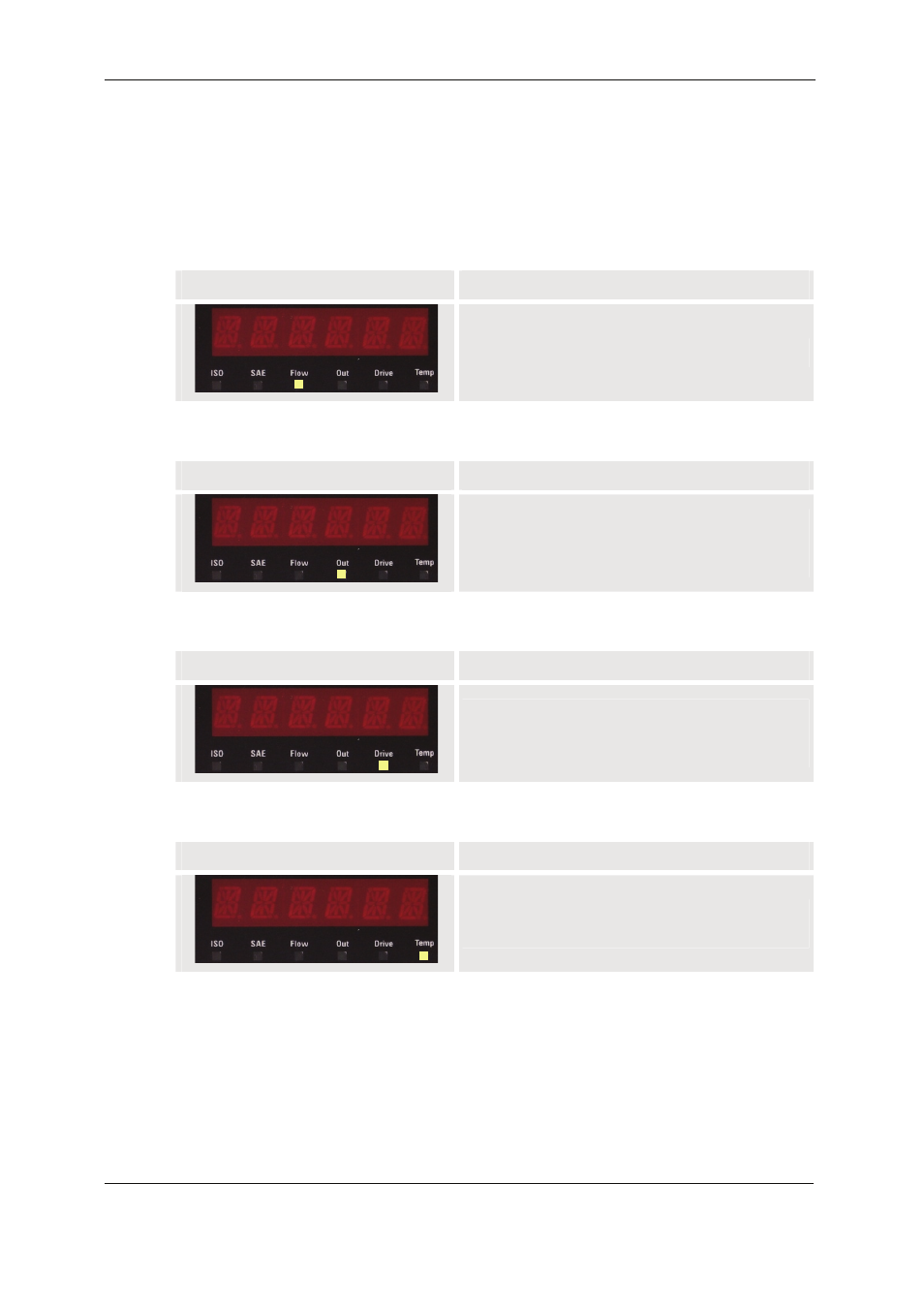

Service categories
The service categories enable users to retrieve information on the current status in
the ContaminationSensor. The service categories are not calibrated. They represent
an approximate value for installing the sensor in the hydraulic system.
Flow (flow rate)
Display Description
120
Flow rate display (e.g. 120 ml/min)
Out (Analog output)
Display Description
1§8
Display of the current or voltage output at the
analog output.
(example: 13.8 mA)
Drive (performance of the LED)
Display Description
60
Display of the efficiency (1-100%) with which
the LED currently works in the CS. (example:
60%)
Temp (Temperature)
Display Description
2)5C
Display of the temperature in the sensor.
(example: 29.5 °C or 84.2 °F)
