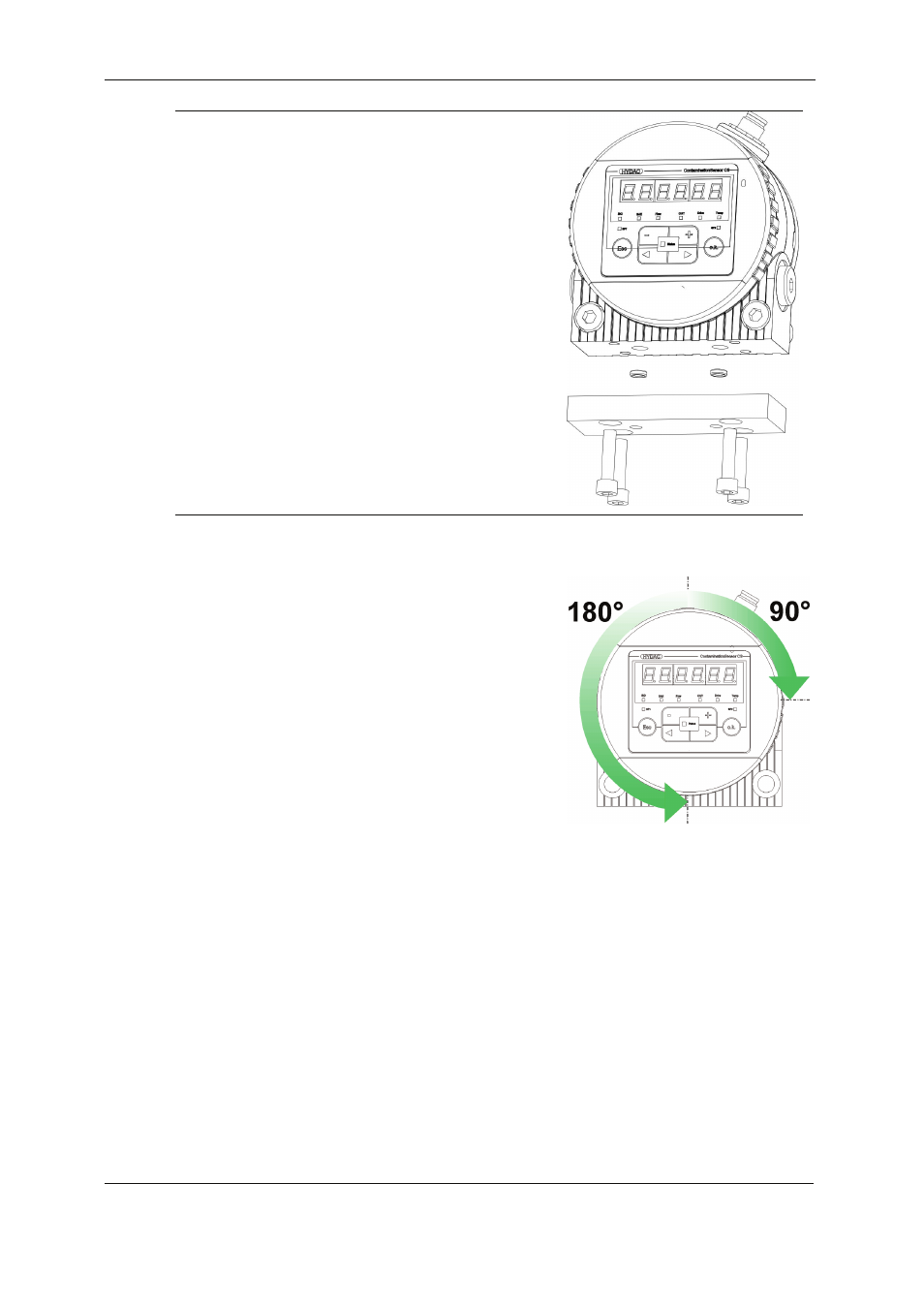

3. Connecting plate or valve manifold mounting:
using 4 cylindrical screws with an M6
hexagonal socket according to ISO4762.
Display rotatable/Adjustable As Needed
The CS1000 display can be continuously rotated
by a total of 270°; 180° counterclockwise and 90°
clockwise.
To rotate the display, manually turn the cover
plate required direction.
Do not use tools to rotate the display.
