ContaminationSensor CS1000 Analog Output (ANAOUT)
HYDAC Filtertechnik GmbH en Page 51 / 100
BeWa CS1000 3247149n en 2009-02-04.doc 2009-02-04
SAE Klassen A / B / C / D ( SAE )

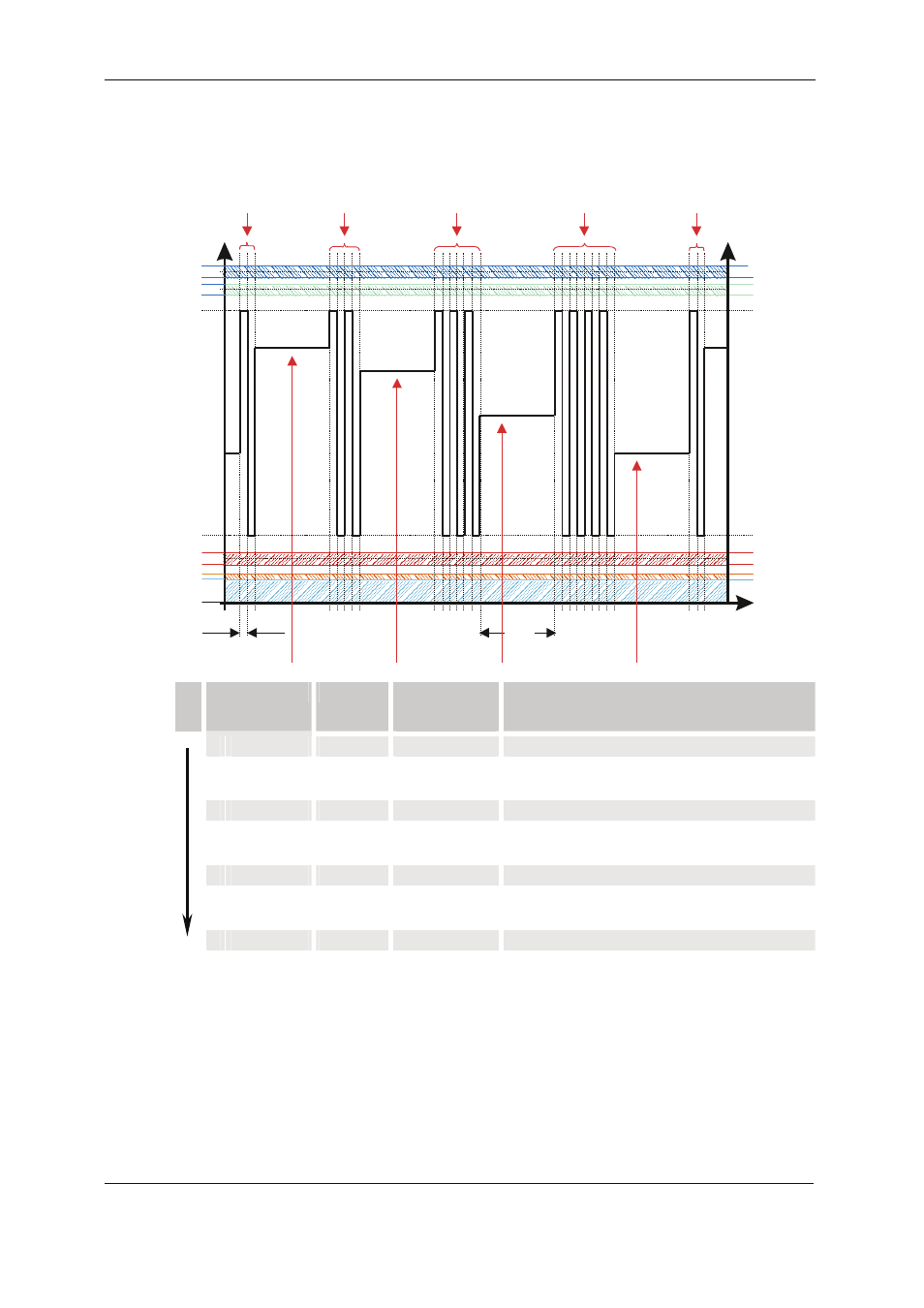

The SAE class A/B/C/D signal consists of 4 measured values transmitted with the
following time-coded time slices:
4,0
I (mA)
U (V)
t (ms)
4,8
Low
20,0
19,2
High High
Low
4,5
4,3
4,1
19,7
19,5
300
3000
1 3 5 7 1
2 4 6 8
2,0
2,05
2,25
2,4
9,85
9,75
2,15
9,6
0,0
19,8
10,0
9,9
Ti
me
Signal Size Signal duration
per pulse
in ms
Current (I) / Voltage (U)
1 Identifier SAE A 300 High / Low
2 Measured
value
SAE A 3000
Current/Voltage for measured value
3 Identifier SAE B 300 High / Low / High / Low
4 Measured
value
SAE B 3000
Current/Voltage for measured value
5 Identifier SAE C 300 High / Low / High / Low / High / Low
6 Measured
value
SAE C 3000
Current/Voltage for measured value
7 Identifier SAE D 300 High / Low / High / Low / High / Low / High / Low
8 Measured
value
SAE D 3000
Current/Voltage for measured value
