Connection cable - Assignment / Color coding

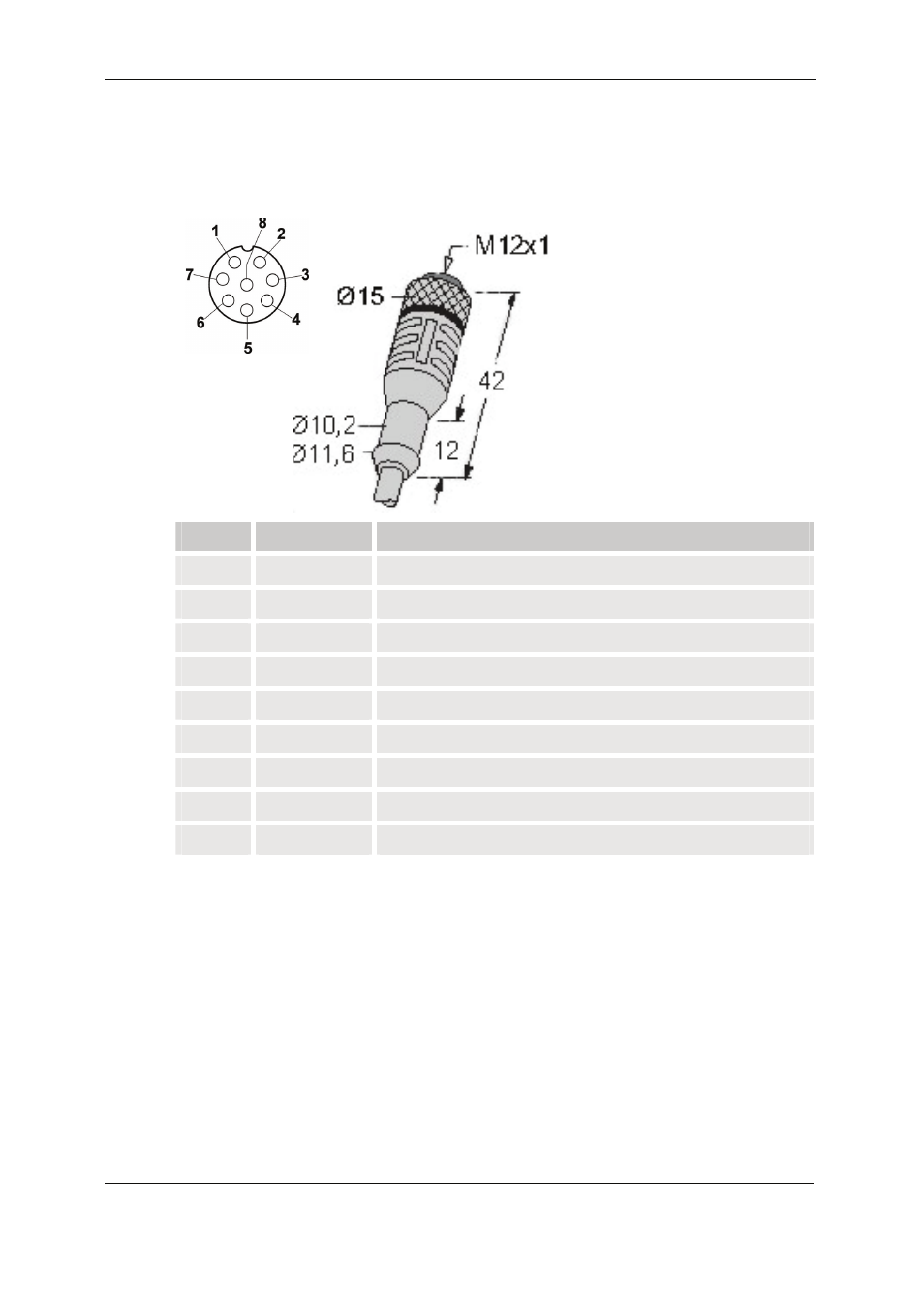

Our accessories list includes connection cables of various lengths with one
connection plug (8-pole, M12x1, according to DIN VDE 0627) and an open end.
HYDAC accessory cable color coding is listed in the table below.
Pin Color Connection to
1 White Supply voltage 9 – 36 V DC
2 Brown Analog output + (active)
3 Green GND supply voltage
4 Yellow GND ANALOG / SWITCH OUTPUTS
5 Gray HSI (HYDAC Sensor Interface)
6 Pink RS485 +
7 Blue RS485 -
8 Red Switch output (passive, n.c.)
Case - Screen
