Page 396: Configuration

380

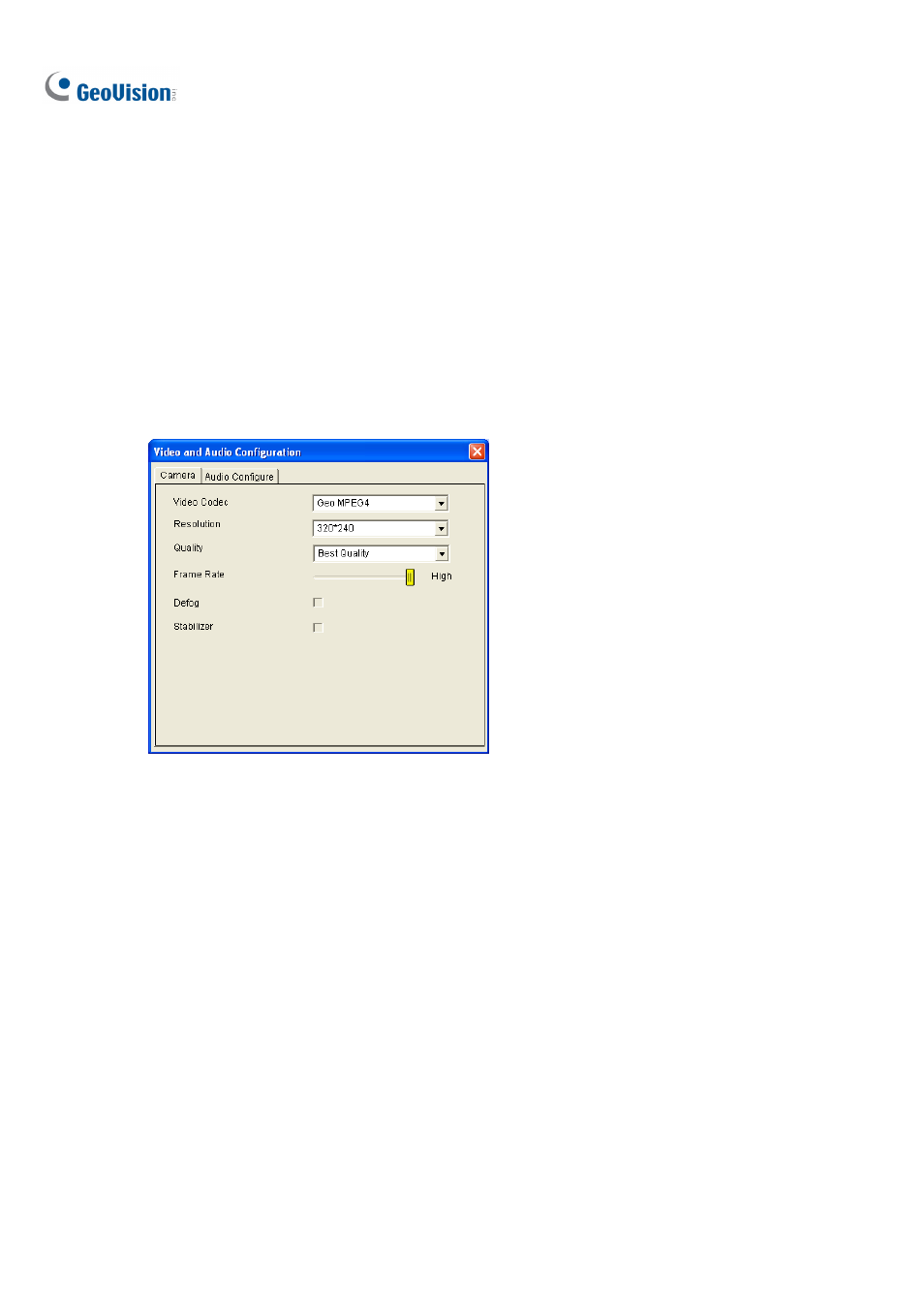

8.3.5 Video and Audio Configuration
To change the video and audio configurations of the connected camera, click the Show System Menu
button (No. 5, Figure 8-19), and select Video and Audio Configuration.
[Camera]
In this tab, you can change the video codec, quality and frame rate immediately. The resolution options
are corresponded to the maximum image size set on the connected GV-System. For details, see Video
Settings in WebCam Server Settings earlier in this chapter. Note the Defog and Stabilizer options are
only available after they are activated at the connected GV-System.
Figure 8-23
[Audio Configure]
In this tab, you can enable the microphone and speaker for two-way audio communication.
Select Speaker to access live audio from the server site, and select Microphone to speak to the
server site. Ensure the speaker and microphone are properly installed in the local computer, and the
audio settings (Figure 8-8) are activated on the WebCam server too.
