6.8 Virtual I/O Control
Through TCP/IP connection, the GV-System can remotely control the I/O devices connected from the
GV-I/O Box of Ethernet module, GV-Wiegand Capture and GV IP devices.
On the main screen, click the Configure button (No.14, Figure 1-2), select Accessories, click I/O
Application and select Virtual I/O Setting. This dialog box appears.

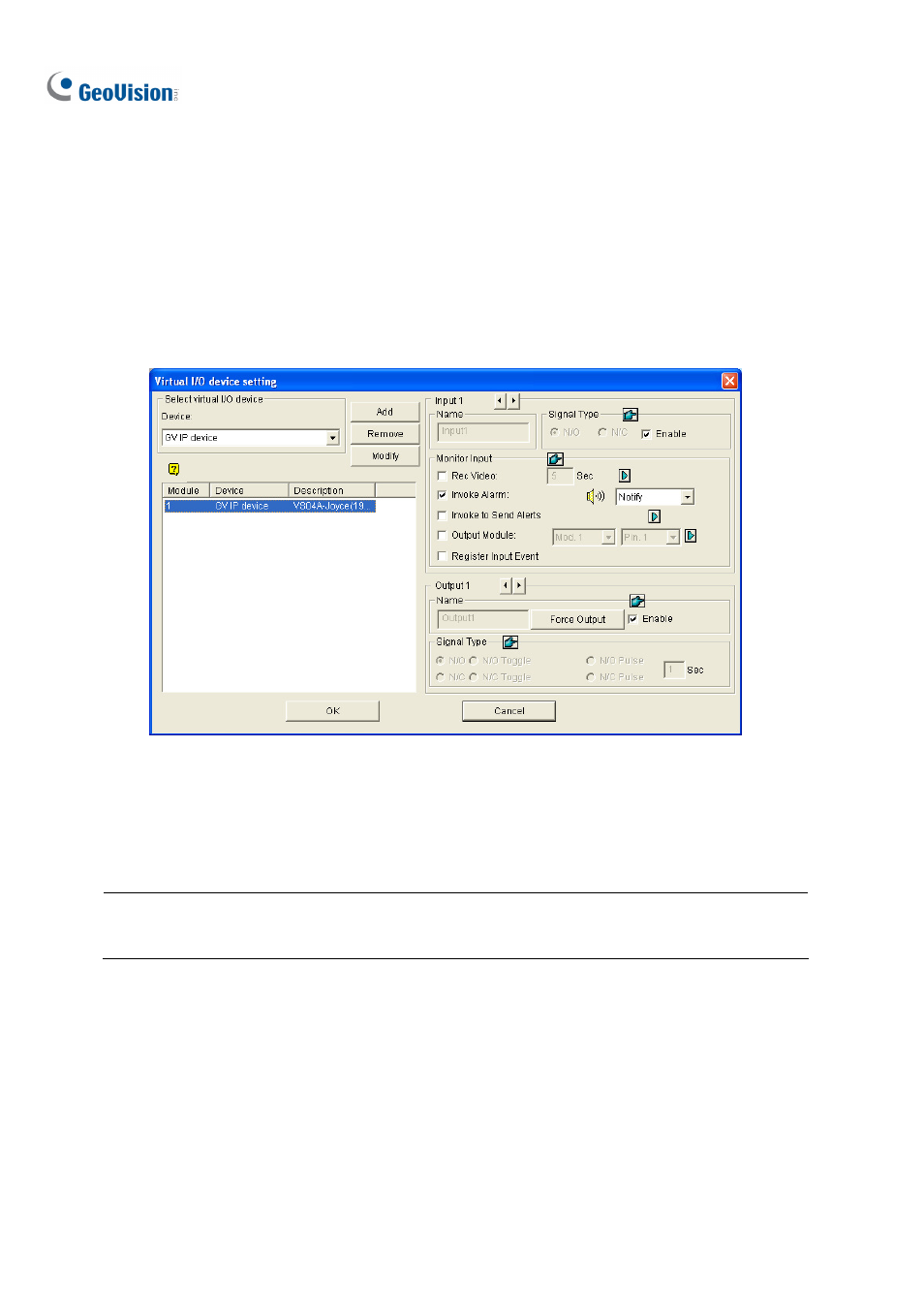

Figure 6-33
For details on the settings in the Virtual I/O Device Setting dialog box, see I/O Device Setup earlier in
this chapter.
Note: The Enable option in the upper right of the dialog box can turn on or off the I/O device of the
added IP device.
