I /O Applications 6
6.1 I/O Device Setup
To connect the I/O device to the computer of GV-System, you may need the additional device: GV-Net,
GV-Net Card, GV-NET/IO Card or GV-I/O Box. For details on these devices, see Chapter 2 in the
Installation Guide on the software DVD.
To install the I/O device on the GV-System, on the main screen, click the Configure button (No. 14,
Figure 1-2), select General Setting, click System Configure, and click the I/O Device tab. This
window appears.

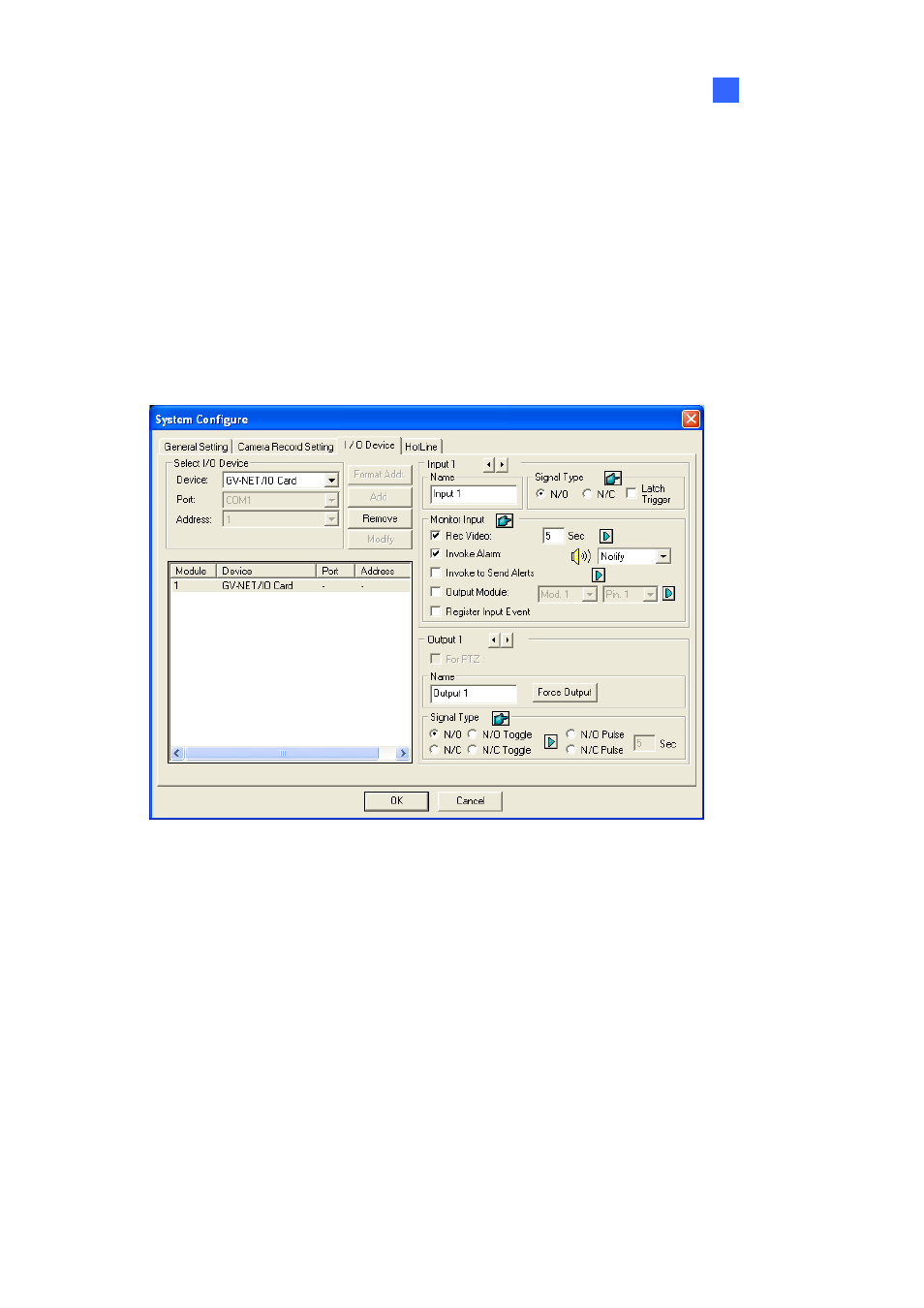

Figure 6-1 I/O Settings
[Select I/O Device] Adds an I/O device to the system:
1. Select the device from the Device drop-down list.
2. Click the Format Addr. button to assign an address to the device. The Format Address dialog box
appears.
3. Start your first device with New Address set to 1. Click the Write button to write the address to the
device. Click OK to apply the setting.
4. Click the Add button. You should see the device listed in the display window.
5. Repeat above steps to add more devices once at a time. Each device should have its own address;
therefore, in step 3 you should assign a different address for the new device.
293
