6.5 I/O Enable Setting
You can manually arm or disarm any I/O devices without interrupting the monitoring. For example,
when an output alarm is triggered at the front door, you can turn off the output while the system keeps
on recording and I/O monitoring.
Arming / Disarming I/O devices:
1. On the main screen, click the I/O button (No. 7, Figure 1-2), and select I/O Enable Setting. This
dialog box appears.

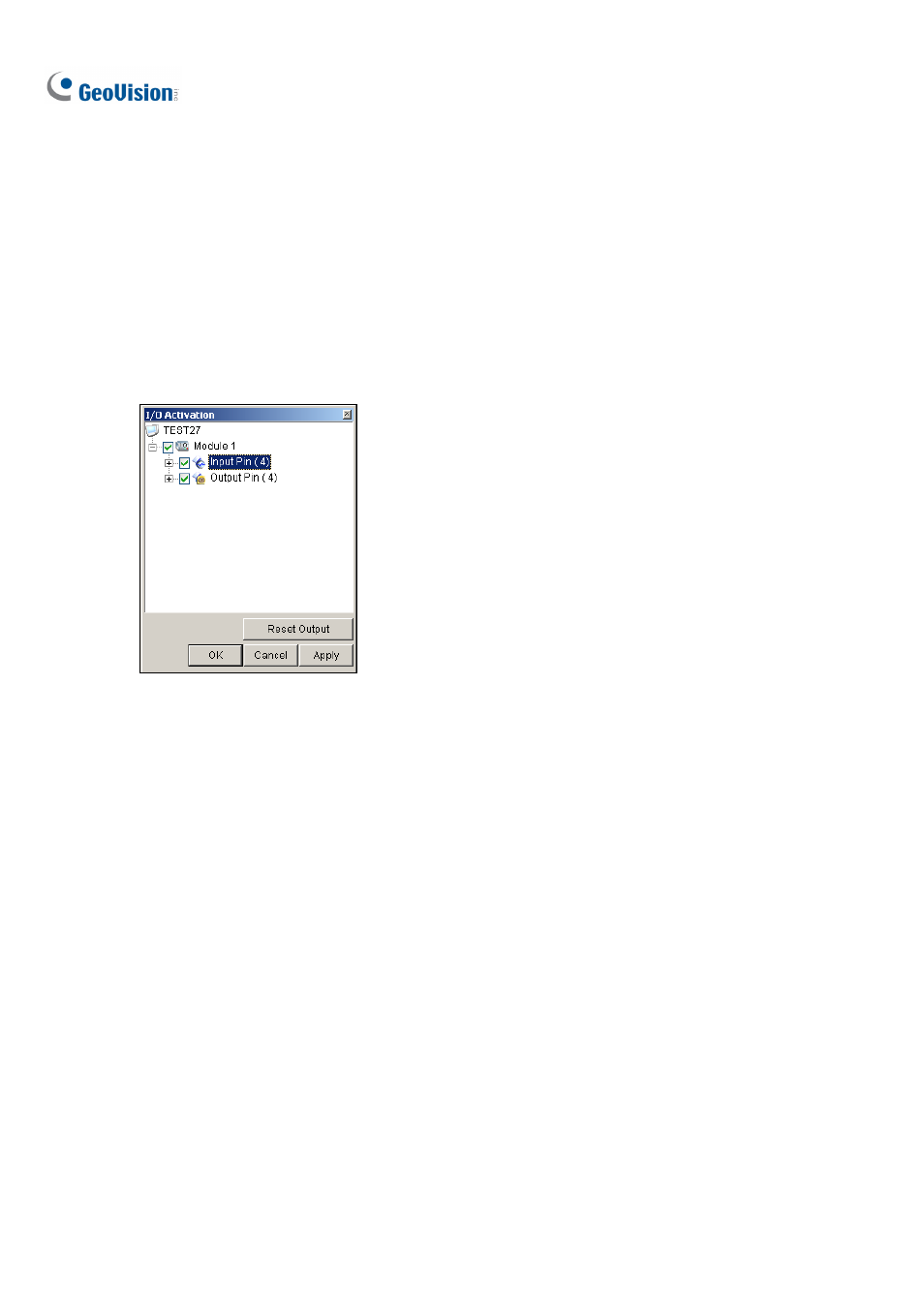

Figure 6-12
2. Check the Input/Output to arm or uncheck the Input/Output to disarm the device(s). Then click
Apply to verify the changes.
