316
6.6.5 Quick Link
The Quick Link provides a quick access to triggered I/O devices. It is a separate window to display all
group icons. The group icon flashes when any included I/O device is triggered. Clicking the flashing
icon will bring you to the I/O location in the Advanced I/O List.
¾ To open the Quick Link window, click the Toggle Quick Link button. (No. 3, Figure 6-13).
¾ To set the Quick Link window at panel startup, see the Show Quick Link option in Figure 6-18.

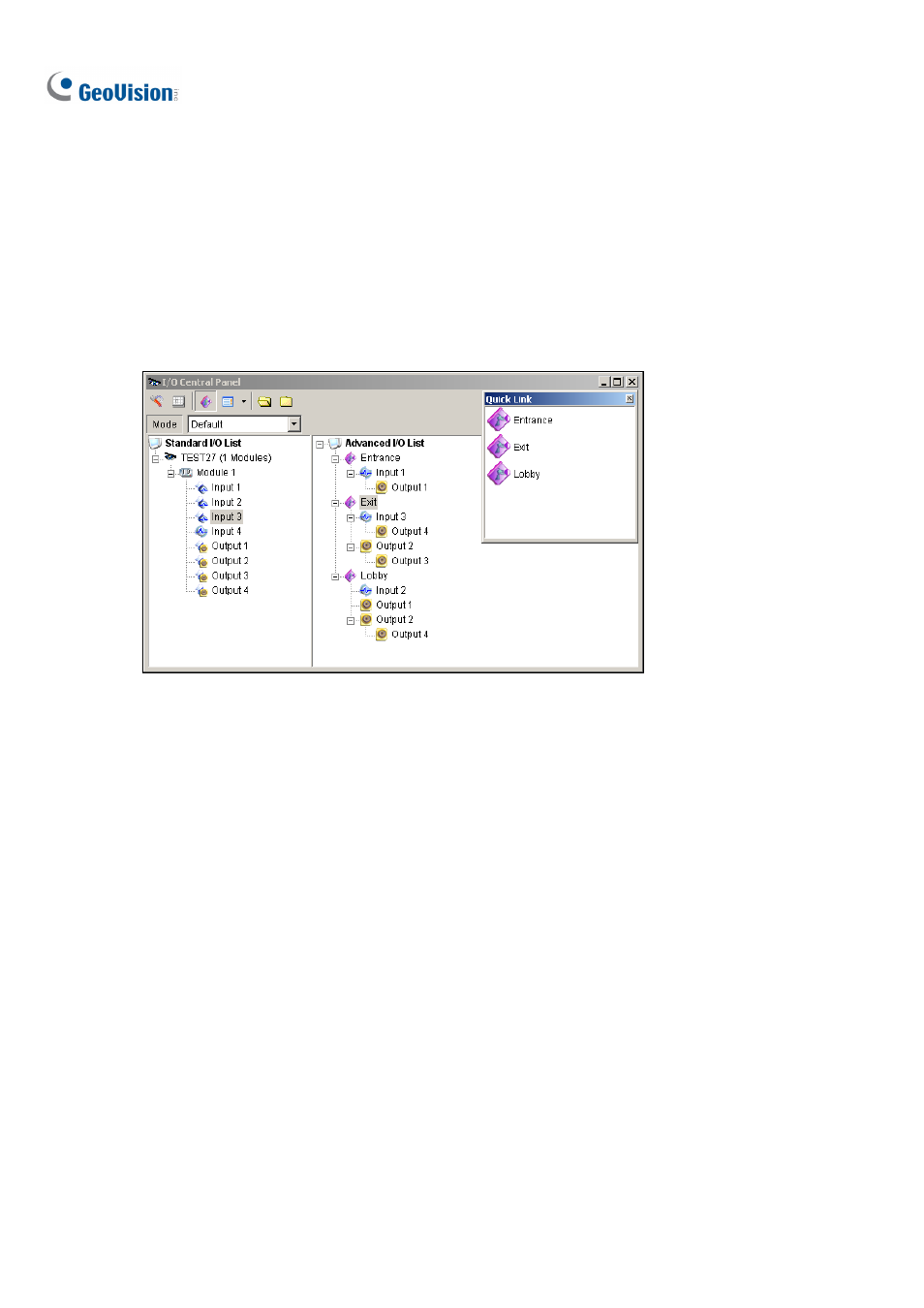

Figure 6-22
