CCTV Camera Pros Geovision 8.4 Multicam Digital Surveillance System - Manual (Page 108)

92
1.12.3 Auto Switching PTZ Control Panels
The function allows the corresponding PTZ control panels to be called up automatically when you
switch to different PTZ camera screens. To enable the function, follow the steps below:
1. Click the Configure button (No. 14, Figure 1-2), point to General Setting, and then select
System Configure. The System Configure window appears.
2. In the PTZ Control section, click the Arrow button, select PTZ Panel Switch and click Auto. The
Camera Mapping Setup dialog box appears.

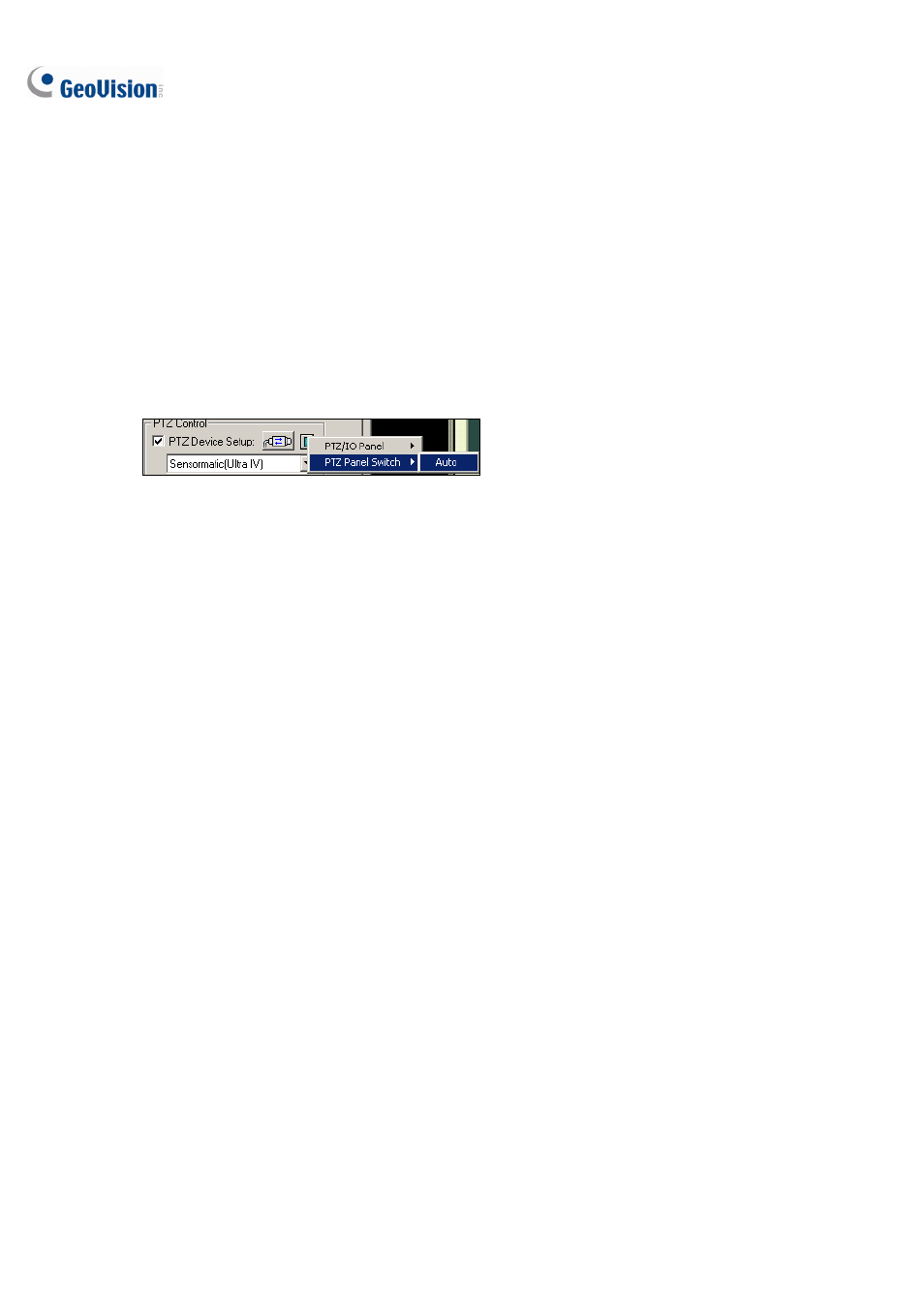

Figure 1-73
3. Select the corresponding camera channel, device model and hardware address for each PTZ
camera. For details, see Mapping PTZ Camera earlier.
4. Click OK. When you change the channel, the corresponding PTZ control panel will appear on the
screen.
