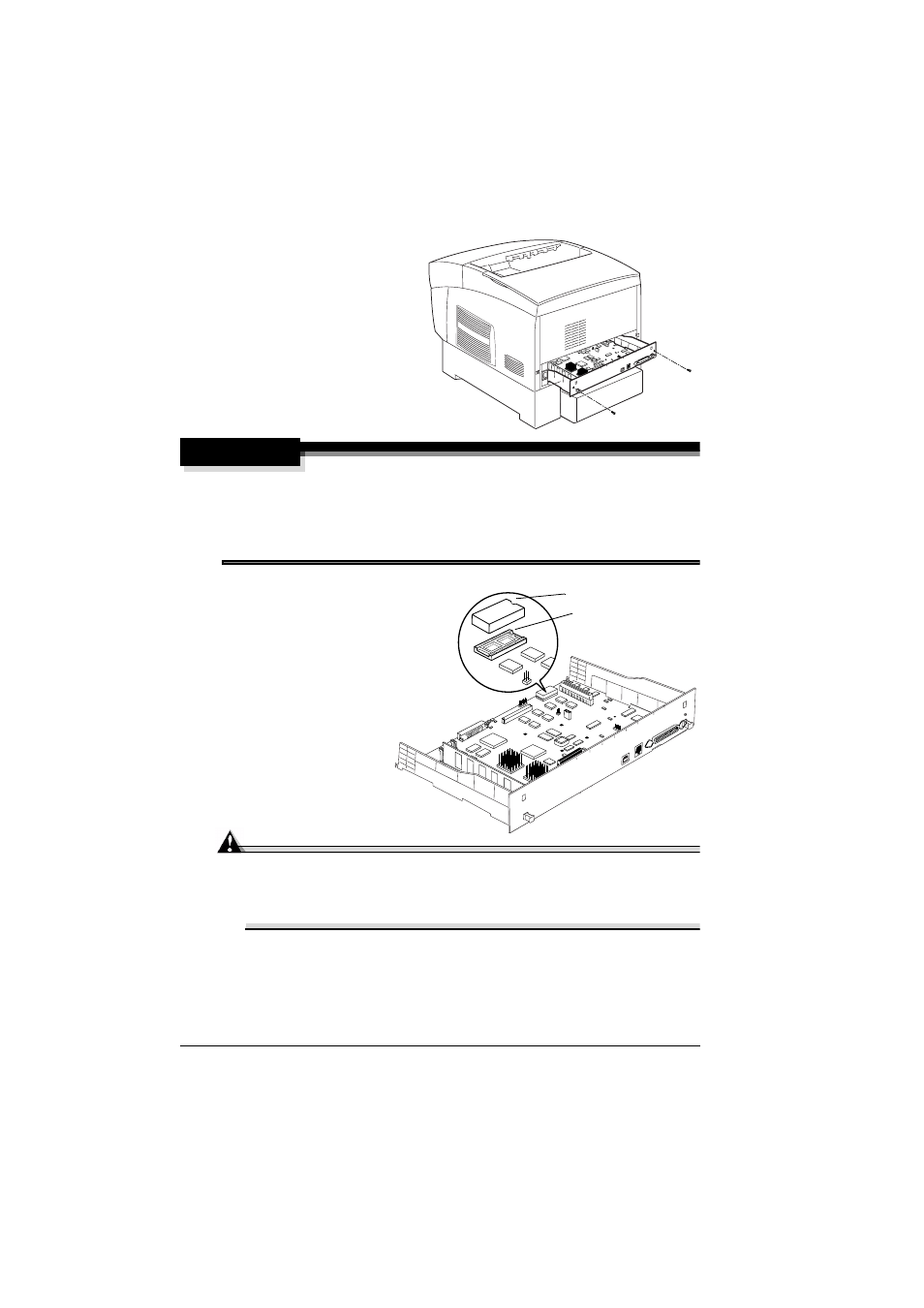

Time-of-Day Clock 148
1
Turn off the printer, and
then disconnect the
power cord and all
interface cables from the
printer.
2
Loosen the screws and
pull the controller board
from the printer.
WARNING!
Because the time-of-day clock includes an internal battery, there is a
danger of explosion if the clock is incorrectly installed or replaced.
Replace it only with a supported KONICA MINOLTA time-of-day clock.
Dispose of any used time-of-day clock in accordance with local laws
and regulations.
3
Attach the time-of-
day clock to the
controller board.
Attention
Make sure that the pins on the time-of-day clock are properly aligned
with those in the receiving socket on the controller board. Damage
to the time-of-day clock and/or controller board could result if the
pins are misaligned.
a Locate the time-of-day clock socket on the controller board and the pin
1 notch or printed label.
b Locate the pin 1 indicator mark on the top of the time-of-day clock.
This mark may be a notch or a slight depression on one end of the
clock.
IIIIIIII IIIIIIII IIIIIIII IIIIIIII IIIIIIII IIIIIII III IIIIIIII IIIIIIII IIIIIIII IIIIIIII II IIIIIII
IIIIIIII IIIIIIII IIIIIIII IIIIIIII IIIIIIII IIIIIII III IIIIIIII IIIIIIII IIIIIIII IIIIIIII II IIIIIII
IIIIII IIIIIIIIIIIIIIIIIIIIIIII
IIIIIIIIIIIIIIIII II
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIII
IIIIIIIIIIIIIIIIIIIIIIIIIIIIII
IIIIIIIIIIIIIIIII II
IIIIIIIIIIIIIIIIIIIIIIIII
IIIIIIII IIIIIIIII
Pin 1 indicator
Pin 1 notch/label
