CH.16 MAN0964-01-EN
June 29, 2012 Page 98 of 122

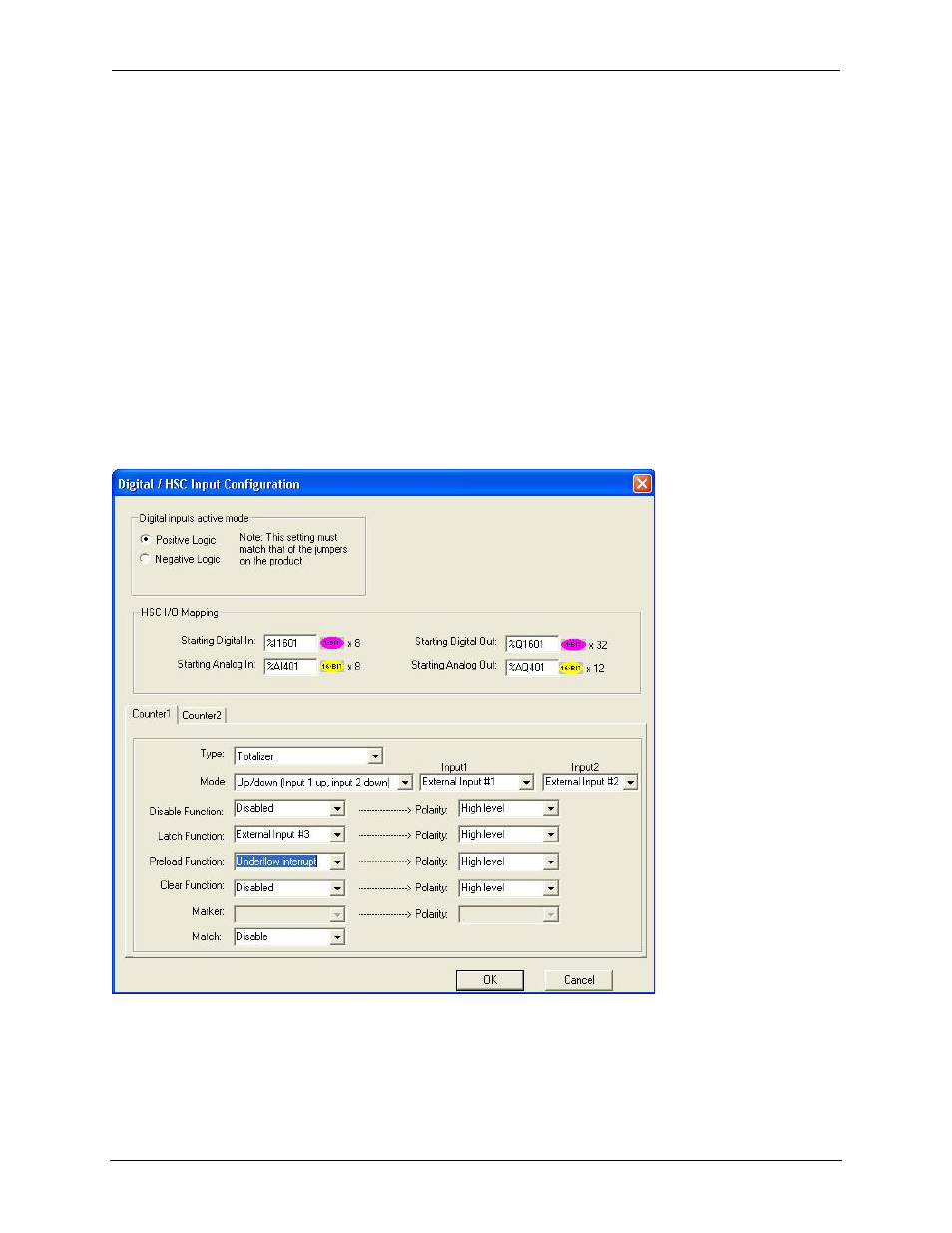

The Active mode group box allows the user to select if inputs are active high (Positive logic) or active low
(Negative logic). It is important that this setting match what the jumper settings are on the hardware.
The High Speed Counters group box contains all of the windows that are used for configuring the 4
available high speed counters on the XL4 OCS. In configuring a counter, the user needs to set the type,
mode, and counts per rev.
The type drop down includes the following options:
- Disabled
- Frequency Measurement
- Period Measurement
- Totalize
- Pulse Width Measurment
- Quadrature
15.7
Digital Output / PWM Configuration
The following figure illustrates the Digital Output / PWM Configuration dialog.
Figure 15.3 – Digital Output / PWM Configuration Dialog
