To check or change the ID on the XLe/XLt, press the UP and DOWN keys on the XLe/XLt
simultaneously to enter the system menu. The first item in the menu is Set Network ID.
Pressing Enter allows you to view or modify the ID of the unit.
To change the Target ID of Cscape use the Controller | Set Target Network ID dialog.
15.3.2 Communicating via On Board Ethernet Port
From Cscape go to Controller -> I/O Configure and do auto configuration for the connected
controller, Click on Config of Ethernet & go to Module Setup.
You can temporarily set the IP address, Net Mask and Gateway of the controller from the system
menu under the Set Networks menu item. Once running or power cycled the configuration will
come from the Cscape configuration stored in the unit.
In Module configuration dialog go to IP Address field enter unused IP Address and configure

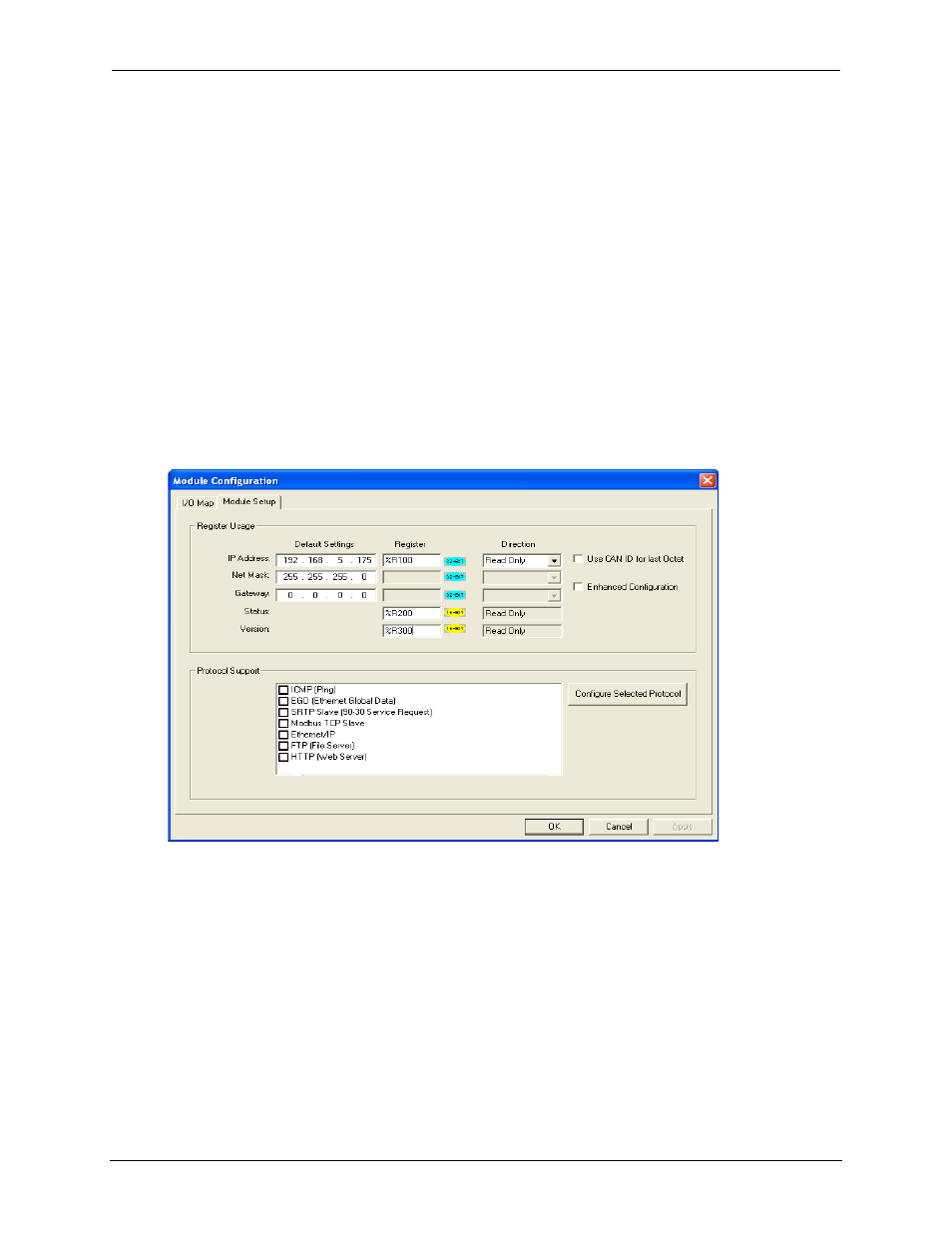

unused registers in Register field & then click OK. Screen shot for the same as follows:
Download the configuration in to Controller. Connect LAN cable to the Controller in default LAN
Port.
From Cscape go to Tools -> Editor Options -> Communication Port -> configure. Select Ethernet
and enter IP address which is configured in the file. Select mode as XL Series mode from drop
down list.
The controller should get connected to Cscape. If communications are successful, the target
indicator should show the mode of the controller Target: yy(R) as shown in the status section
above.
