15.3 Establishing Communications
The preferred method of communicating between Cscape and an XL4 OCS is via USB port. The XL4
OCS can communicate with Cscape using USB to USB, USB to serial adapters, serial port
communications via MJ1 Port, Ethernet (with an Ethernet adapter board), onboard Ethernet Port), CAN
(CsCAN) or modems. For communications other than USB or the MJ1 port please refer to the manual
which ships with the communications adapter hardware being used for programming.
To communicate with the XL4 via USB you will need the automated driver installer located on the Horner
APG web site.
For XL4 use Cscape Ver 9.30 SP3 or newer.
Next, connect a PC’s (Personal Computer running a Windows Microsoft operating system) USB port via
USB cable to the USB mini B port on the XL4 OCS.

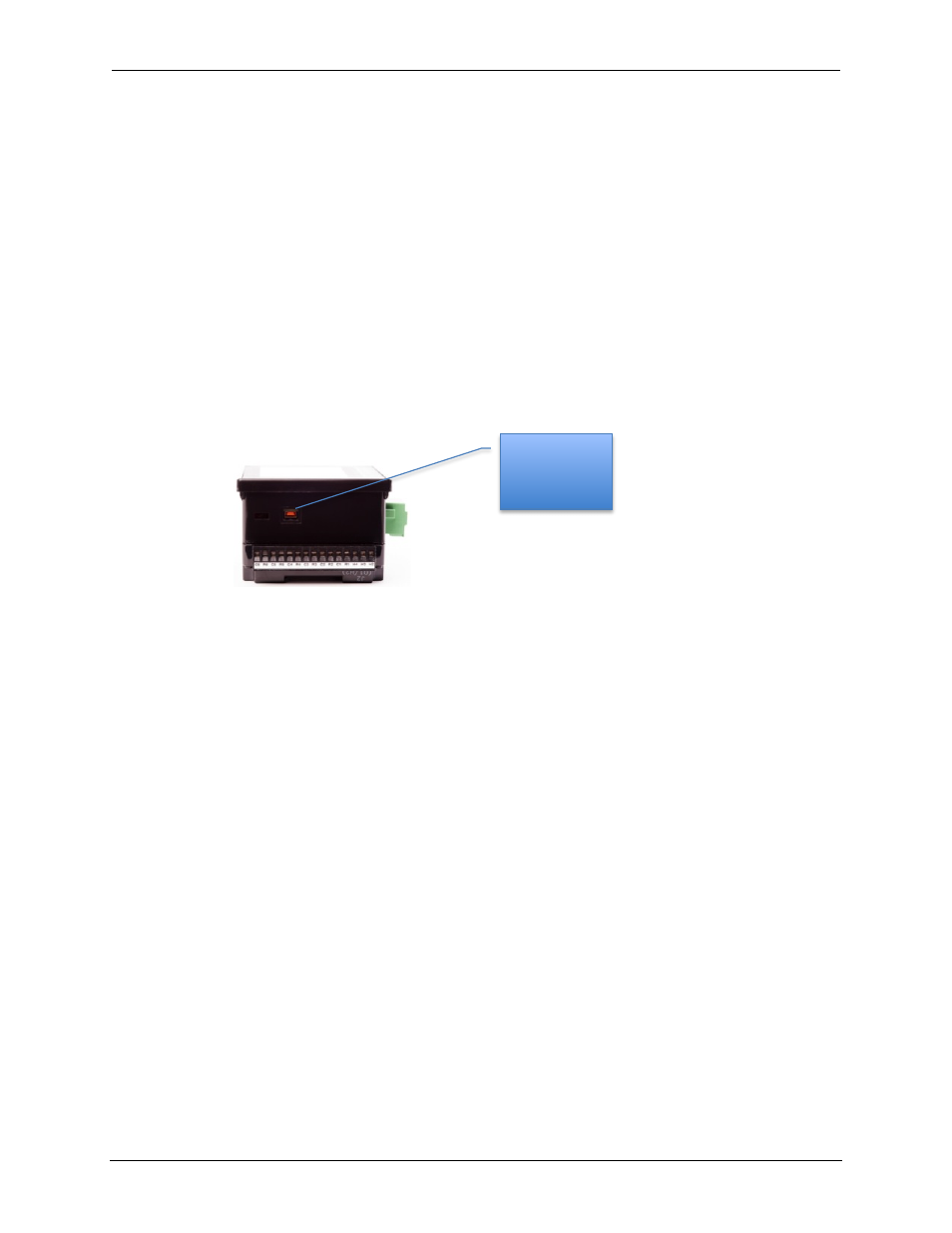

Figure 15.1 – USB Programming Connector
The PC will detect a new device has been plugged into the USB port.
USB 2.0
Mini B
