Port 2:
Protocol name
= (None Loaded) or name of the protocol assigned to MJ2
Protocol version = Blank or version of the protocol assigned to MJ2
Set Fkeys Mode

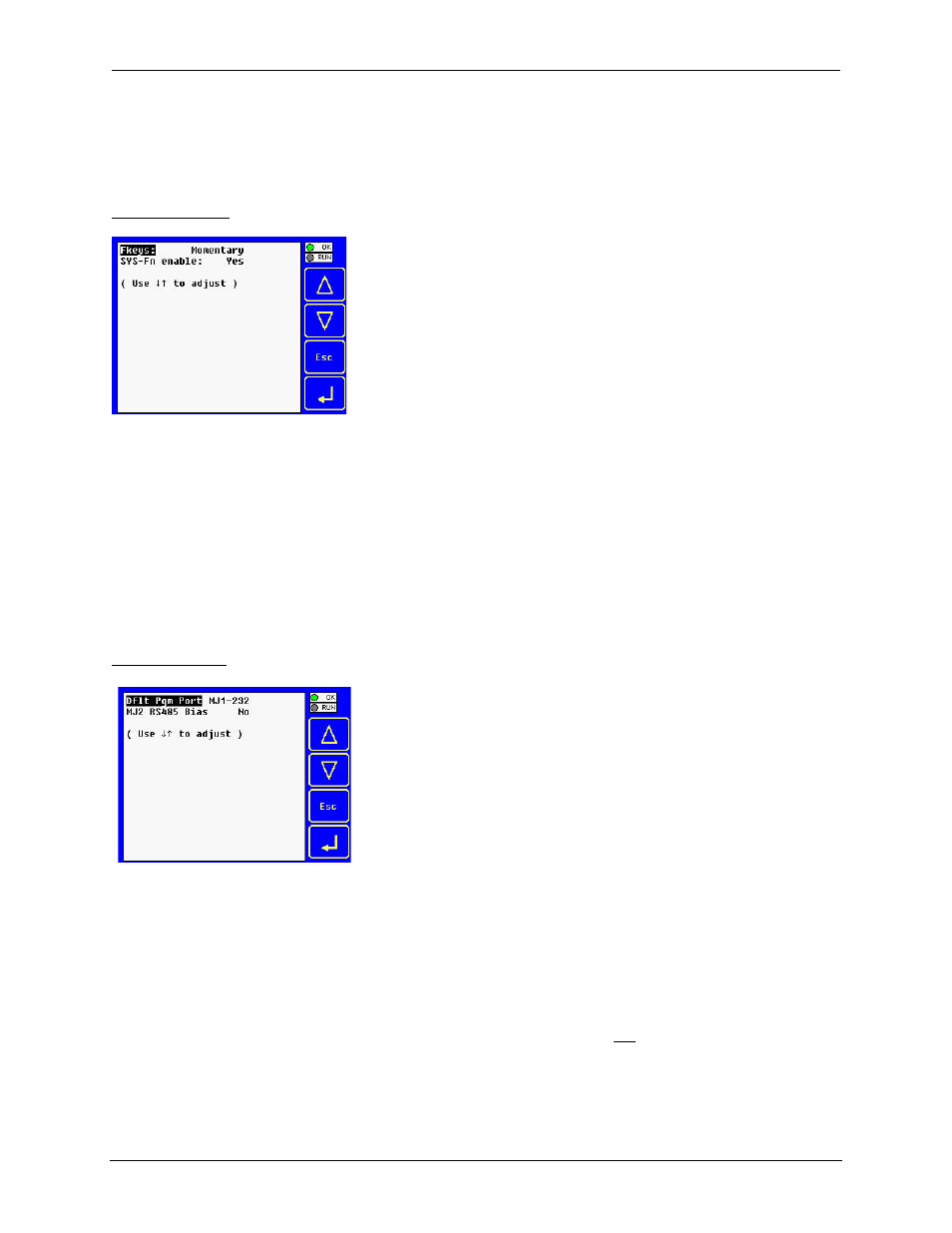

The Set Fkeys Sub-Menu displays two System Settings, both of which are editable.
Fkeys: Momentary = %K1-4 bits go On & Off as F1-F4 are pressed & released
Toggle = %K1-4 bits toggle each time F1-F4 are pressed
SYS_Fn enable:
Yes = Reset and all clear system functions enabled
No = Reset and all clear system functions disabled
Set Serial Ports
The Set Serial Ports Sub-Menu displays three System Settings, all of which are editable, and one optional
item. For the Dflt Pgm Port System setting, only MJ1-232 can be selected, unless a Modem (XMC)
COM module is installed.
Dflt Pgm Port: MJ1-232 = MJ1 RS232 port is the default programming port
Modem = Modem COM module is the default programming port
MJ2 RS485 Bias:
No = MJ2 RS485 bias resistors are not switched in
Yes = MJ2 RS485 bias resistors are switched in
