CHAPTER 9: REMOVABLE MEDIA
9.1
Overview
All XL4 OCS models provide a Removable Media slot, labeled Memory Card, which supports standard
Micro SD Flash memory cards. Micro SD cards can be used to save and load applications, to capture
graphics screens and to log data for later retrieval.

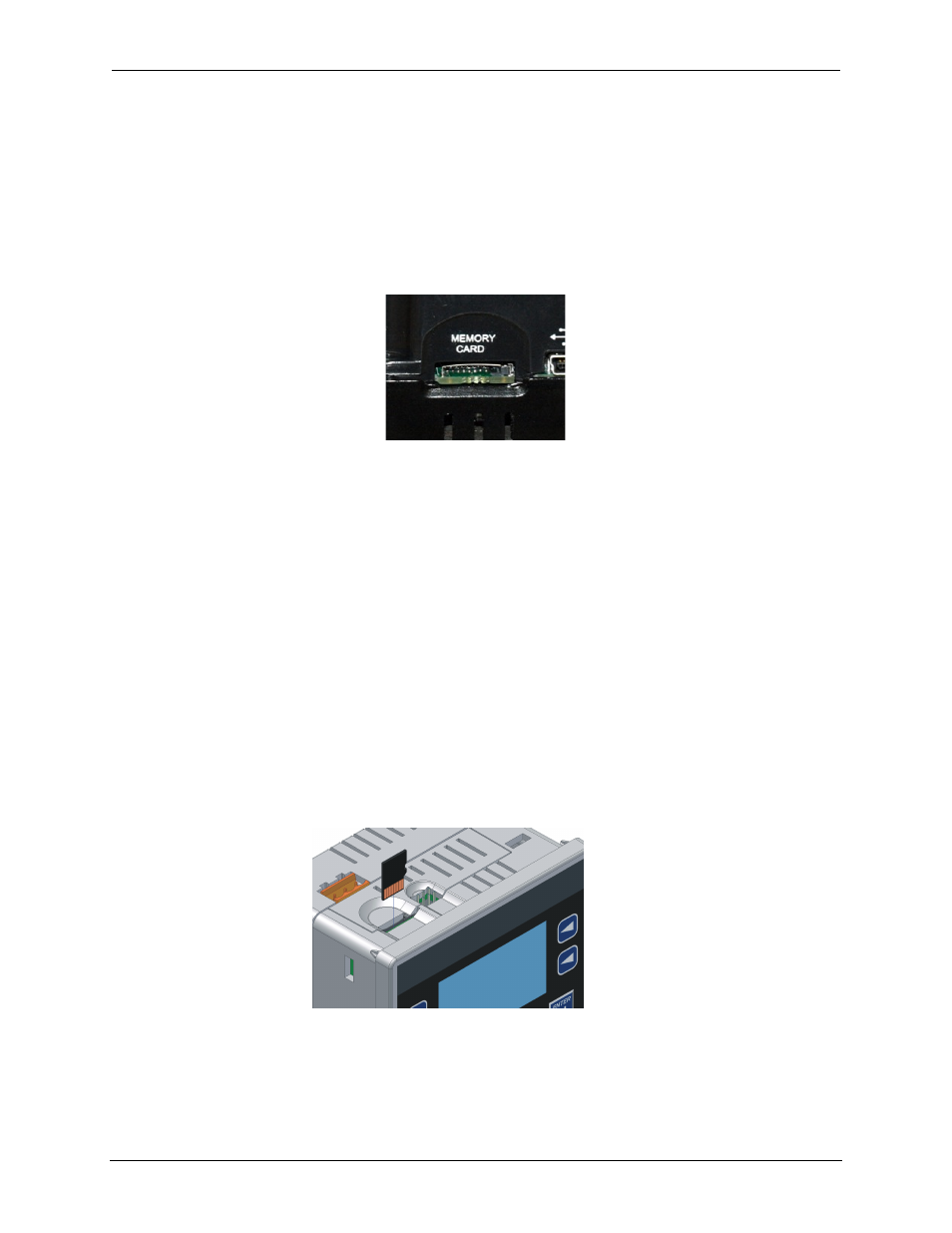

Figure 9.1 – Removable Micro SD Memory Card Slot
9.2
Micro SD Cards
When the Micro SD card format was introduced, it was originally called TransFlash. Cards labeled either
Micro SD or TransFlash, with up to 32 GB of Flash memory, are compatible with the XL4 OCS Memory
slot (larger sizes were not tested at time of publication).
The Memory slot is equipped with a “push-in, push-out” connector and a Micro SD card can be safely
inserted into the Memory slot whether the XL4 OCS power is On or Off.
To install a Micro SD card: Align its 8-pin gold edge connector down, facing the front of the XL4
OCS unit as shown in Figure 9.2; then carefully push it all the way into the Memory slot. Ensure
that it clicks into place.
To remove the Micro SD card: Push down on the top of the card gently to release the spring.
The card pops up for removal.
Figure 9.2 – Installing Removable Memory Card
