MAN0964-01-EN CH.12
June 29, 2012 Page 61 of 122
12.3 System Menu – Details
The following sections describe each of the Sub-Menus in detail.
Set Networks
This sub menu allows setting for the CAN and Ethernet network to be viewed or changed.
CAN Ok? Yes = CAN1 connected to a CAN network and functioning properly
No = Not ready to communicate on CAN network
CAN ID:
1 to 253 = This node’s CsCAN Network ID; must be unique on network
CAN Baud? 125 KB = 125 KBaud CAN network
250 KB = 250 KBaud CAN network
500 KB = 500 KBaud CAN network
1 MB = 1 MBaud CAN network
MAC ID: Displays the Ethernet MAC ID of the unit
IP: Displays the Ethernet IP address of the unit
NetM: Displays the Ethernet net mask of the unit
GatWy: Displays the Ethernet gateway of the unit
Note: The IP address, Net Mask and Gateway can be changed from the system menu. This is
designed for commissioning or temporary field changes. The actual parameters are defined in
Cscape under the Ethernet configuration.

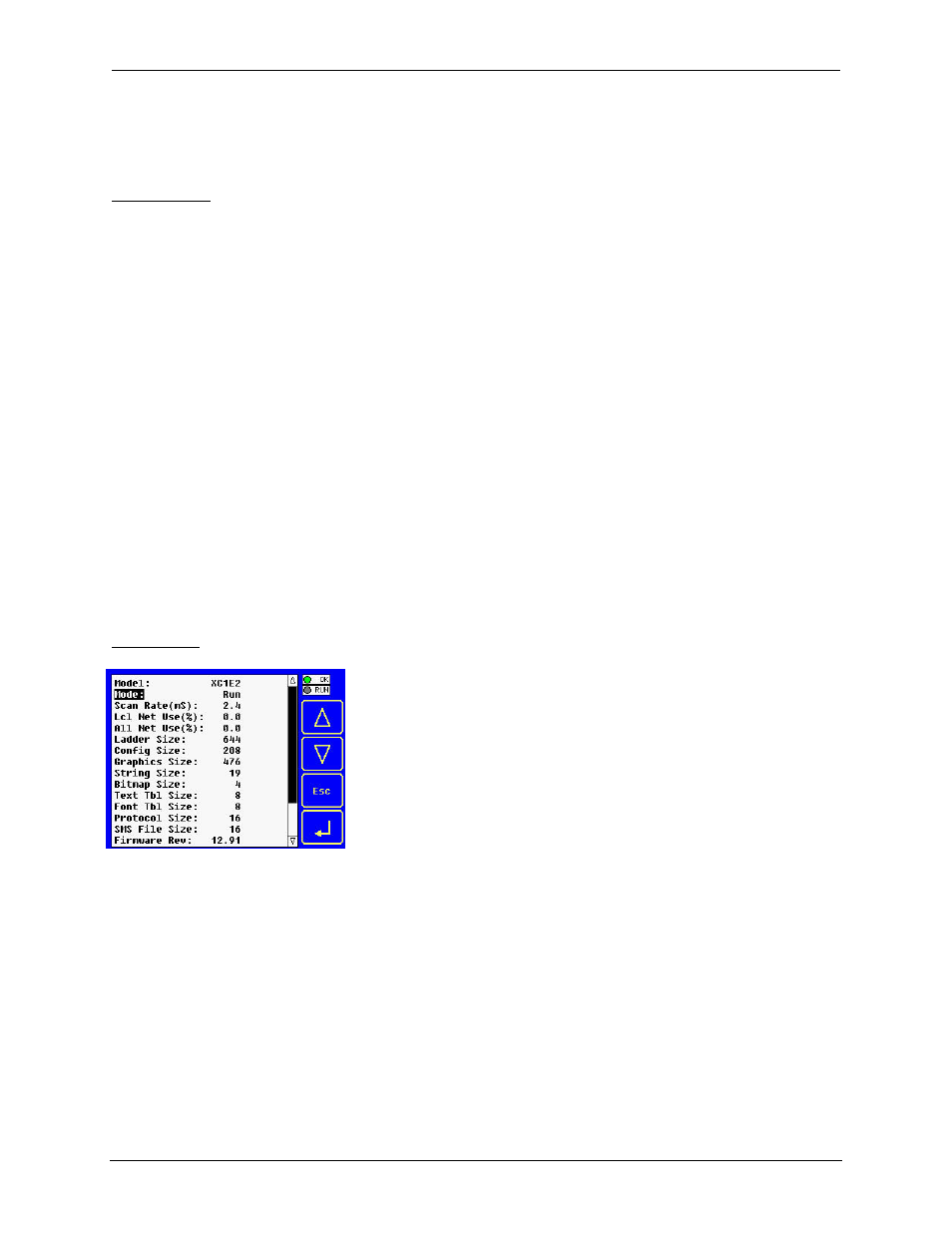

View Status
The View Status Sub-Menu displays up to 19 System Settings. Only the Mode System Setting is
editable.
Model: XL1yz = Model number of this XL4 OCS unit
1yz indicates the installed I/O module; 00 = no I/O module
OCS Mode:
Idle = XL4 OCS is in Idle mode
DoIO = XL4 OCS is in Do I/O mode
Run = XL4 OCS is in Run mode
Scan Rate(mS):
0.0 = XL4 OCS is not in Run mode
0.1 to 999.9 = Average number of mS for each ladder scan
