MAN0964-01-EN CH.3
June 29, 2012 Page 19 of 122 #1037

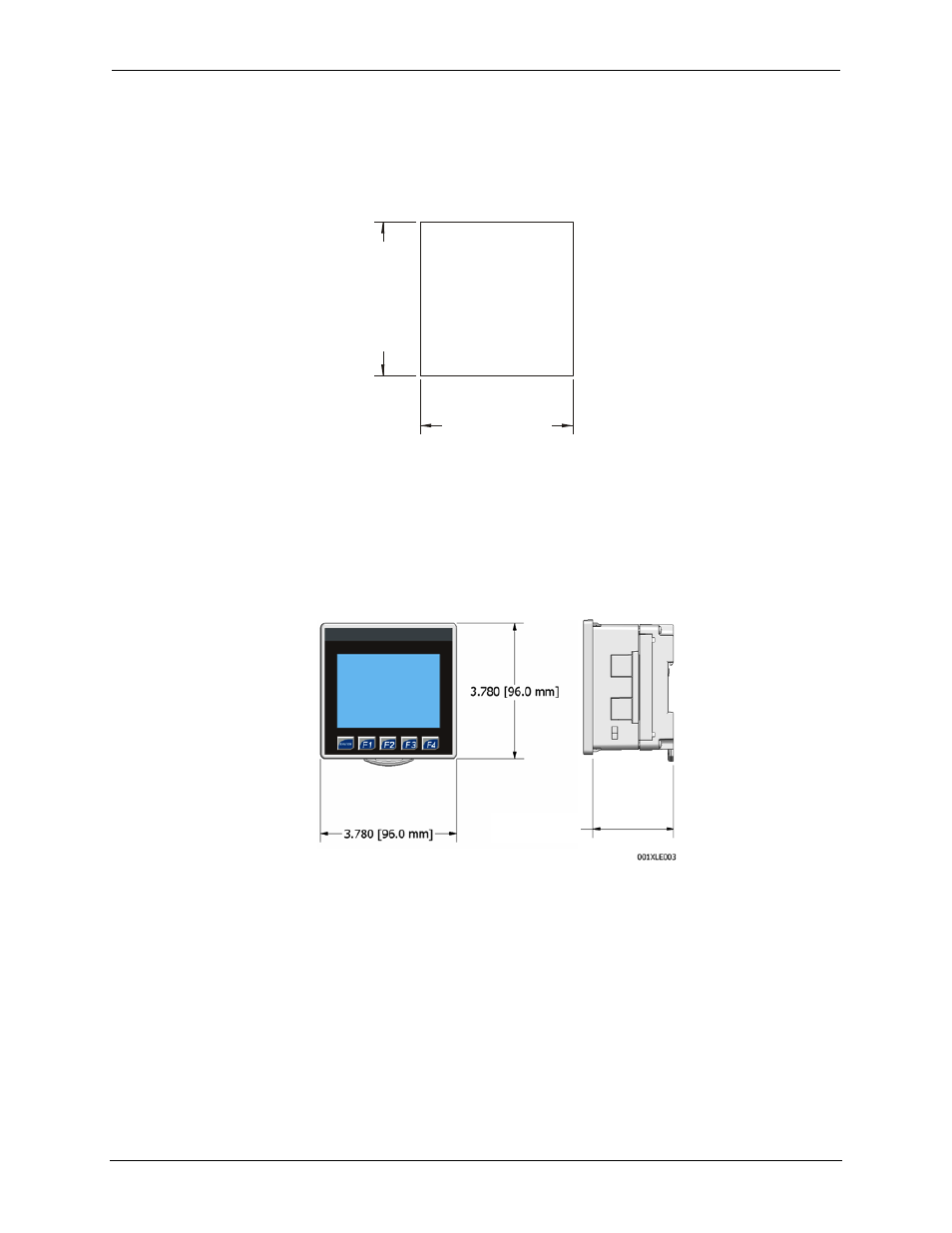

3.4
Panel Cut-Out
For installations requiring NEMA4X liquid and dust protection the panel cutout should be cut with a
tolerance of ± 0.005” (0.1 mm).
Figure 3.4 – Panel Cutout Tolerances
3.5
XL4 Dimensions
Figure 3.5 – XL4 OCS Dimensions
3
.6
2
2
[9
2
m
m
]
3.622 [92mm]
001XLE002
