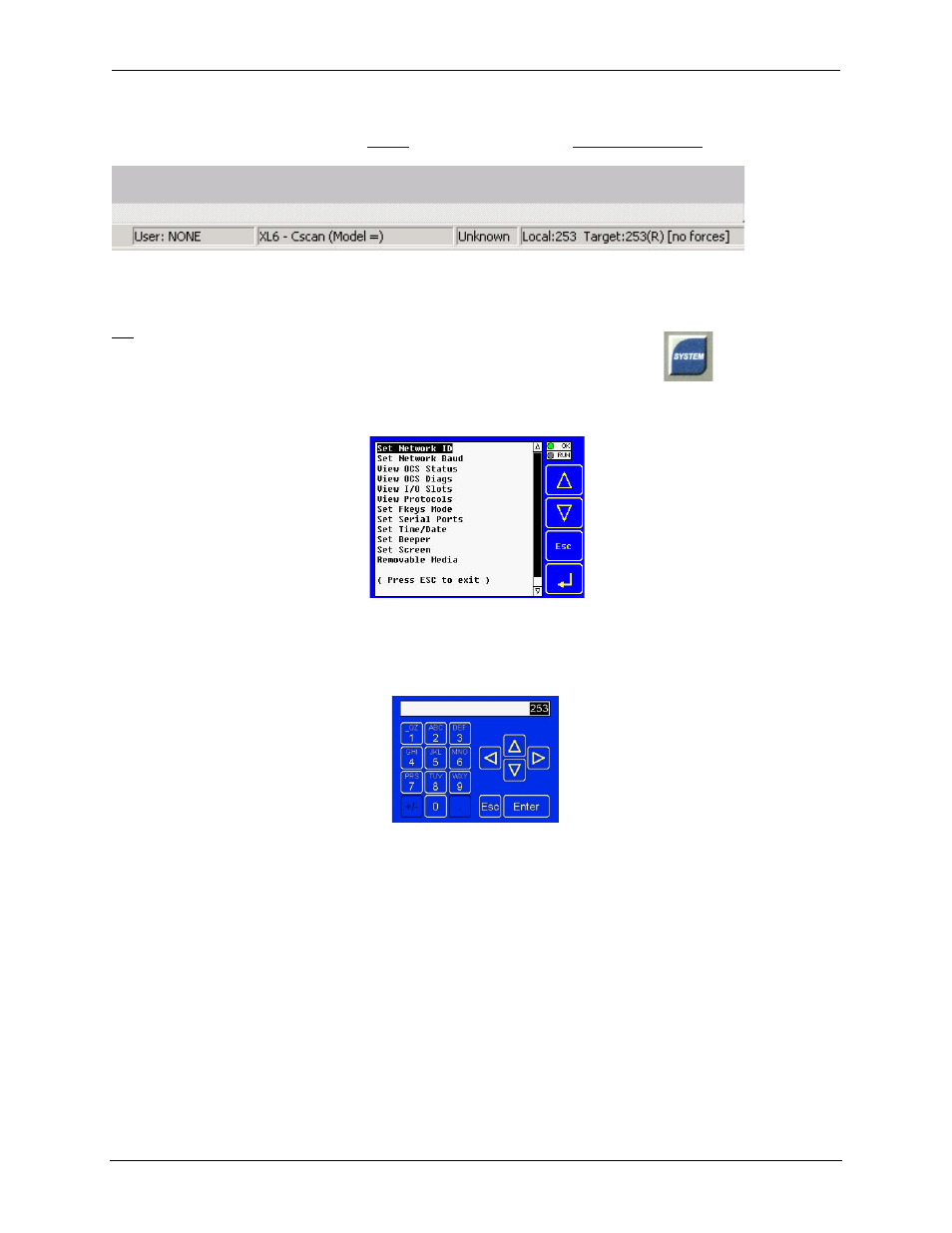

If communications are successful, the target indicator should show the mode of the controller Target:
yy(R) as shown in the status section
above in this chapter, section Cscape Status Bar .
If the controller is not communicating you may need to set the target ID of the controller in Cscape or on
the unit. The Target ID allows directing communications to a particular unit when multiple units are
connected via a CsCAN network. Units without CsCAN network ports respond to any network ID and do
not require the ID to be configured.
To check or change the ID on the XL4 OCS, press the system menu key.
The first item in the menu is Set Networks. Pressing Enter allows you to view or modify the ID of the
unit.
To change the Target ID of Cscape use the Controller | Set Target Network ID dialog.
15.3.1 Communicating via MJ1 Serial Port
Start by configuring Cscape to use the correct communications port. This can be done using the
Tools | Options | Communication Port dialog in Cscape.
Next connect the PC’s serial port to the port labeled MJ1 on the XL4.
If communications are successful, the target indicator should show the mode of the controller
Target: yy(R) as shown in the status section above.
If the controller is not communicating you may need to set the target ID of the controller in
Cscape or on the unit. The Target ID allows directing communications to a particular unit when
multiple units are connected via a CsCAN network. Units without CsCAN network ports respond
to any network ID and do not require the ID to be configured.
