CH.12 MAN0964-01-EN
June 29, 2012 Page 64 of 122
Slot 1: I/O: Empty = No I/O module installed or configured
Slot 1:*Unsupported = Unsupported I/O module installed
Slot 1:-I/O Missing = No I/O module installed but an I/O module is configured
Slot 1:+I/O: XExyy = yy I/O module installed but no I/O module configured
Slot 1:?I/O: XExyy = yy I/O module installed but another I/O module configured
Slot 1: I/O: XExyy = yy I/O module installed and configured properly
Depending on the COM module that is installed and the COM module that has been configured by
Cscape, one of the following six System Settings appears for Slot 2:
Slot 2: I/O: Empty = No COM module installed or configured
Slot 2:*Unsupported = Unsupported COM module installed
Slot 2:-I/O Missing = No COM module installed but a COM module is configured
Slot 2:+I/O: XzC = z COM module installed but no COM module configured
Slot 2:?I/O: XzC = z COM module installed but another COM module configured
Slot 2: I/O: XzC = z COM module installed and configured properly
Slot 3: I/O: ETN300
= ETN300 has been configured through Cscape.

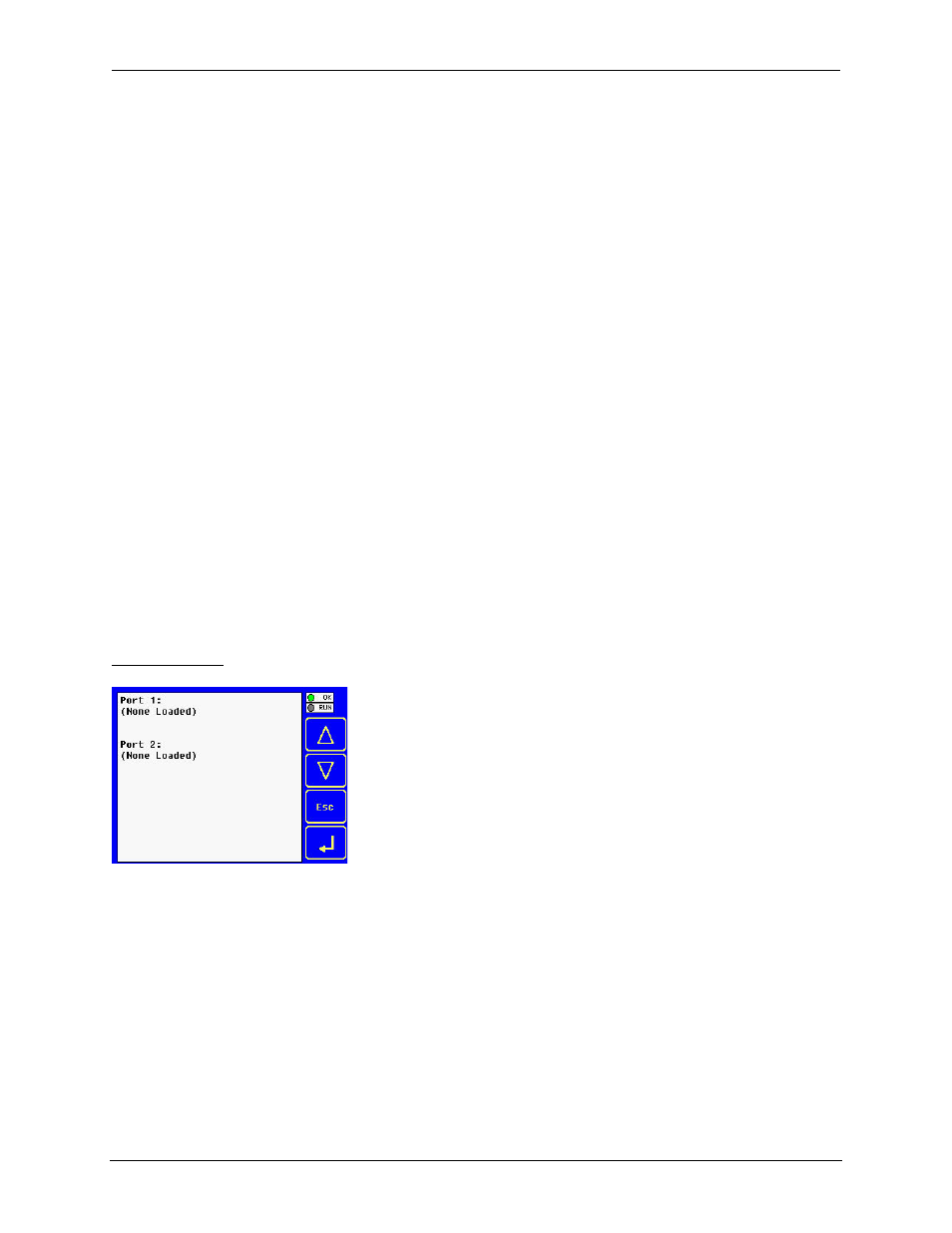

View Protocols
The View Protocols Sub-Menu displays two System Settings, neither of which are editable.
As mentioned in 0, both the MJ1 (Port 1) and MJ2 (Port 2) serial ports support downloadable protocols.
To assign a downloadable protocol to an XL4 OCS serial port, select the Protocol Config item in
Cscape’s Program menu and then setup a protocol for Port 1 or Port 2 (or both).
In the View Protocols Sub-Menu, the currently downloaded protocol, if any, and its version number are
displayed for both Port 1 and Port 2.
Port 1:
Protocol name
= (None Loaded) or name of the protocol assigned to MJ1
Protocol version = Blank or version of the protocol assigned to MJ1
