CH.12 MAN0964-01-EN
June 29, 2012 Page 62 of 122
OCS Net Use %: 0.0 to 100.0 = CAN network bandwidth % used by this XL4 OCS node
All Net Use %:
0.0 to 100.0 = CAN network bandwidth % used by all nodes
Ladder Size:
x = Number of bytes in application ladder program
Config Size:
x = Number of bytes in application I/O configuration
Graphics Size:
x = Number of bytes in application graphic screens
String Size:
x = Number of bytes in application string table
Bitmap Size:
x = Number of bytes in application bitmaps
Text Tbl Size:
x = Number of bytes in application text tables
Font Tbl Size:
x = Number of bytes in application font tables
Protocol Size:
x = Number of bytes in application downloaded protocols
SMS File Size:
x = Number of bytes in application SMS protocol configuration
Firmware Rev:
xx.yy = Current firmware version
OS Ver:
a.b.cd.yz = Current Operating System version
FPGA Rev:
x.y = Current FPGA version (High Speed IO Sub System)
InitRD Rev:
x.yz = Bootloader version
Self-Test:
Ok = All power-on self-tests passed
Fault = One or more power-on self-tests failed

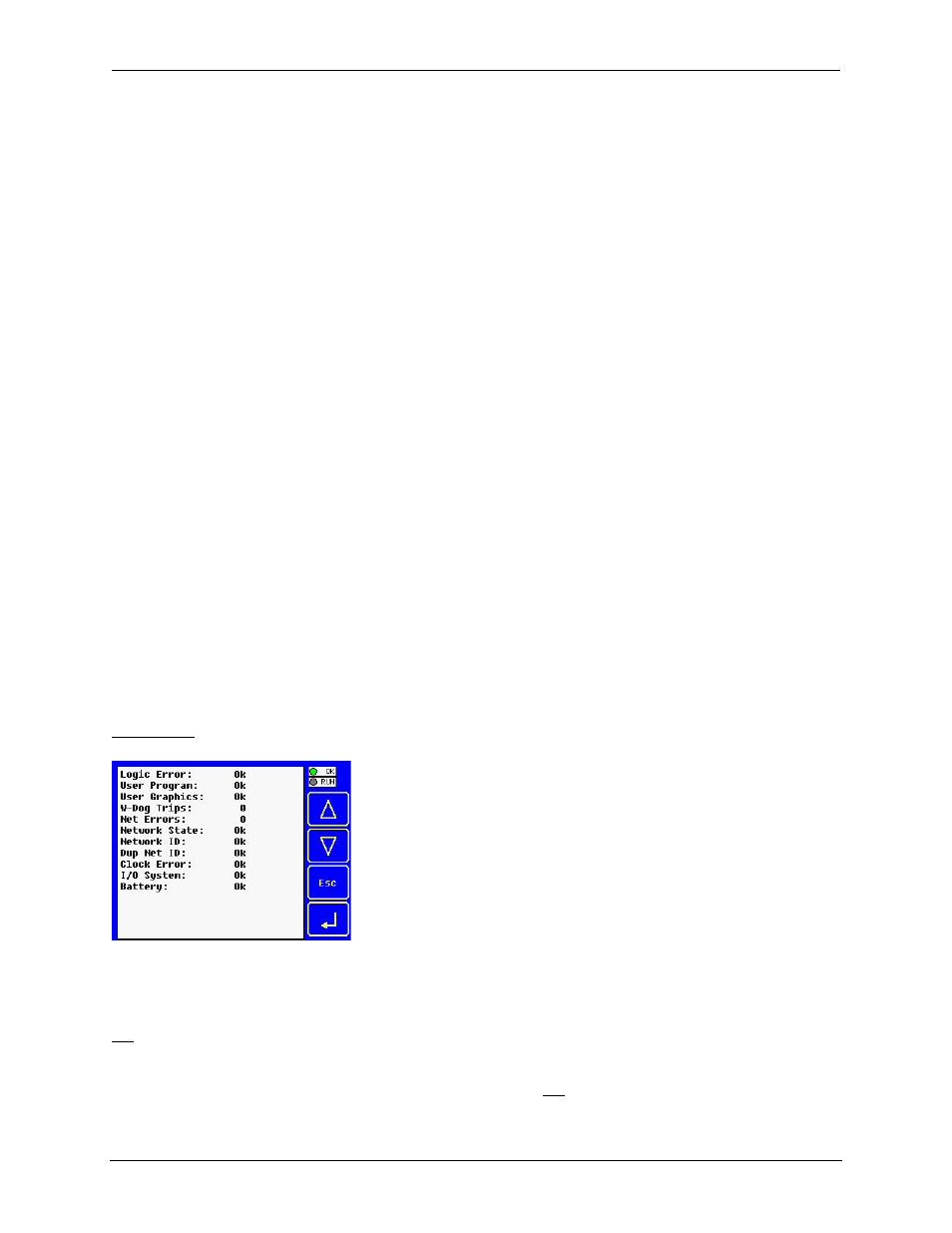

View Diags
The View Diags Sub-Menu displays up to 11 System Diagnostics, none of which are editable.
The first two System Diagnostics are critical. If any of them indicate a Fault condition, the XL4 OCS will
not enter or remain in Run mode, and the problem must be investigated and corrected.
Logic Error: Ok = All executed ladder instructions are legal for loaded firmware
Fault = A ladder instruction not supported by firmware was found
