15.5 Configuration
An overview of configuration:
(1) Start the configuration by selecting the Controller | I/O Configure menu item.
(2) If the XL4 OCS is connected to the PC press the Auto Config System button to automatically
detect the Base model, I/O and any communication options.
(3) If the XL4 OCS is not connected press the Config button to the right of the top of the unit. This
allows the base CPU to be selected.
(4) Select either XL4 OCS Cscan from the type drop down box.
(5) Once the type of XL4 OCS is selected, the model # drop down box will provide the XL4 OCS
model numbers from which to choose from.
(6) Once the XL4 OCS CPU is selected, press OK to exit the dialog and configure the I/O that is
present in the first slot.
(7) The I/O configure dialog (Specifically the Module Setup tab) provides 4 buttons to configure all of
the I/O. Go through each area of I/O and configure it.
(8) Once done configuring the I/O OK out of configuration dialogs.
Configuring the XL4 OCS I/O has four main portions that are covered in this chapter. For additional
information on I/O, refer the chapters covering General I/O or High Speed I/O in this manual.
The four areas of I/O configuration are:
- Digital in / HSC
- Digital out / PWM
- Analog in
- Analog out
15.6
Digital Input / HSC Configuration

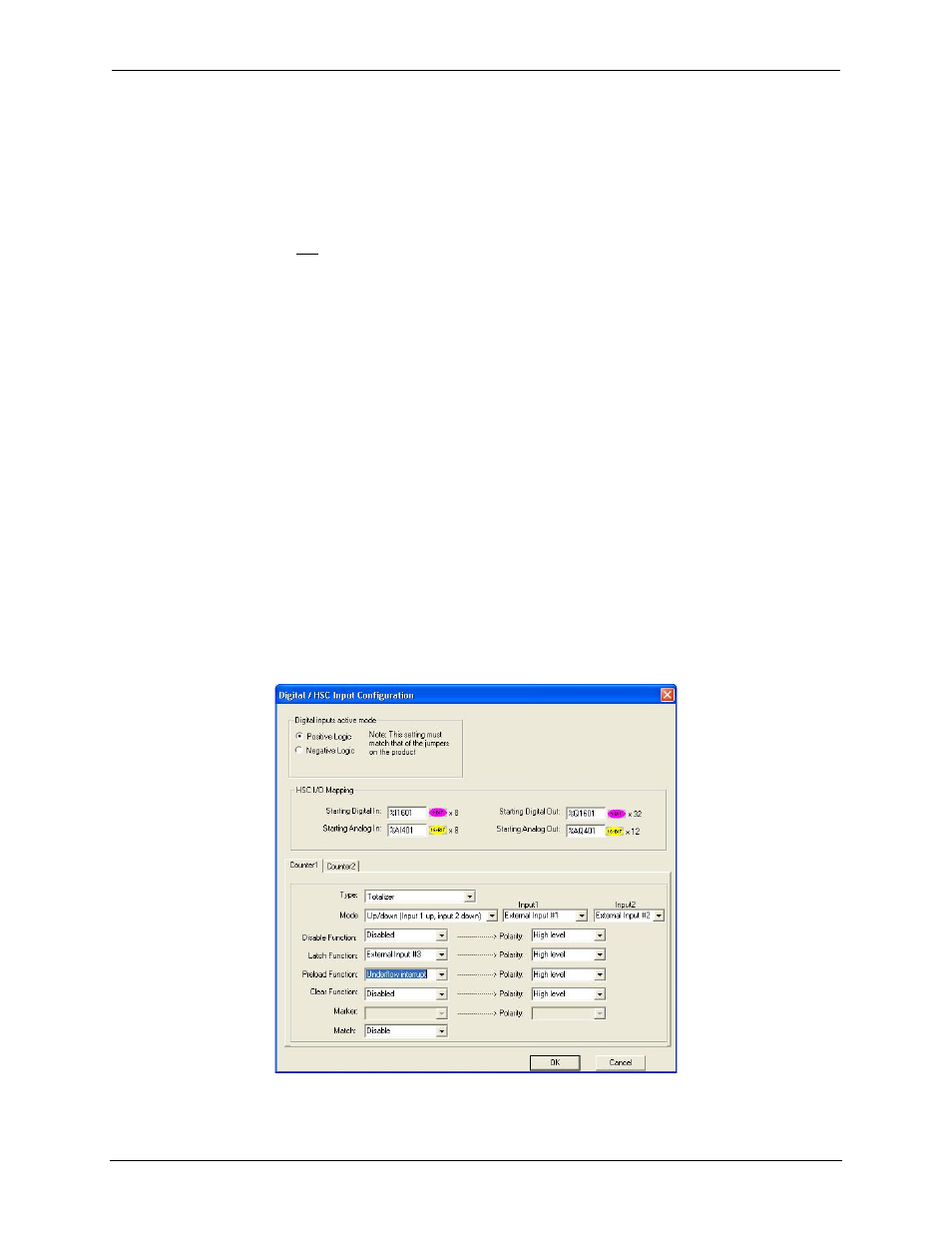

The following figure illustrates the Digital Input / HSC Configuration dialog.
Figure 15.2 – Digital Input / HSC Configuration Dialog
