AMD Geode™ SC2200 Processor Data Book 431
Electrical Specifications 32580B

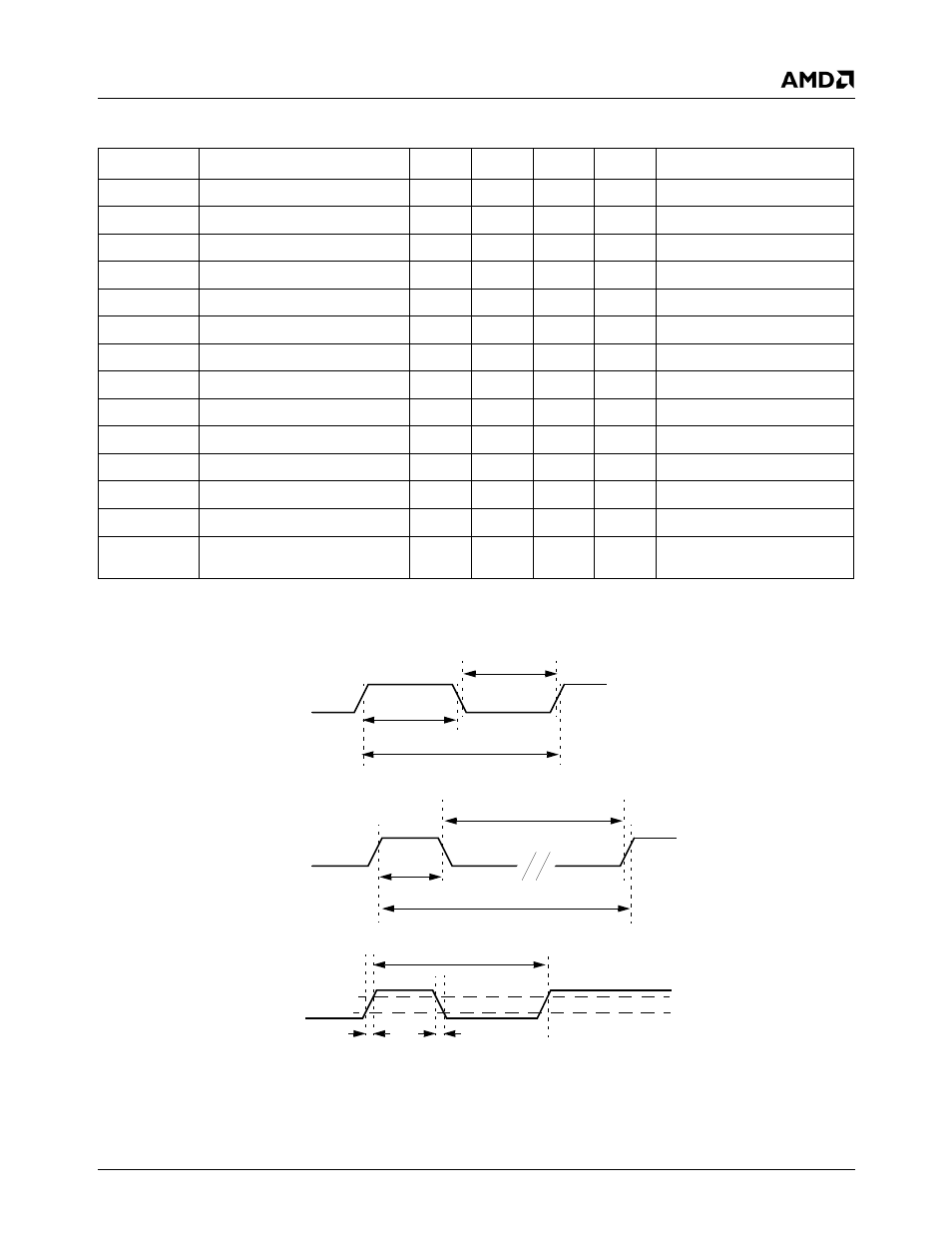

Figure 9-49. AC97 Clocks Diagram
Table 9-38. AC97 Clocks Parameters
Symbol Parameter Min Typ Max Unit Comments
F
BIT_CLK
BIT_CLK frequency 12.288 MHz
t
CLK_PD
BIT_CLK period 81.4 ns
t
CLK_J
BIT_CLK output jitter 750 ps
t
CLK_H
BIT_CLK high pulse width 32.56 40.7 48.84 ns Note 1
t
CLK_L
BIT_CLK low pulse width 32.56 40.7 48.84 ns Note 1
F
SYNC
SYNC frequency 48.0 KHz
t
SYNC_PD
SYNC period 20.8 µs
t
SYNC_H
SYNC high pulse width 1.3 µs
t
SYNC_L
SYNC low pulse width 19.5 µs
F
AC97_CLK
AC97_CLK frequency 24.576 MHz
t
AC97_CLK_PD
AC97_CLK period 40.7 ns
t
AC97_CLK_D
AC97_CLK duty cycle 45 55 %
t
AC97_CLK_FR
AC97_CLK fall/rise time 2 5 ns
t
AC97_CLK_J
AC97_CLK output edge-to-
edge jitter 100 ps Measured from edge to edge
Note 1. Worst case duty cycle restricted to 40/60.
BIT_CLK
SYNC
t
CLK_PD
t
CLK_H
t
CLK_L
t
SYNC_H
t
SYNC_L
t
SYNC_PD
t
AC97_CLK_FR
V
OHD
V
OLD
t
AC97_CLK_PD
AC97_CLK
