AMD Geode™ SC2200 Processor Data Book 335
Video Processor Module 32580B
7.2.4 VESA DDSC2B and DPMS Support
The Video Processor supports VESA, DDSC2B, and
DPMS standards for enhanced monitor communications
and power management support. This support is provided
via signals DDC_SCL (muxed with IDE_DATA10) and
DDC_SDA (muxed with IDE_DATA9). F4BAR0+Memory
Offset 04h[24, 23, 22] controls the interface.
7.2.5 Integrated DACs
The Video Processor uses a Digital to Analog Converter
(DAC) for CRT display.
To interface directly with the CRT display, the Video Pro-
cessor incorporates triple 8-bit video DACs. The integrated
DACs drive the RED, GREEN and BLUE inputs of the CRT.
Each integrated DAC is an 8-bit current output type which
can run at a clock rate of up to 135 MHz. The integrated
DAC can generate voltage levels from 0 to 1.0V, when driv-
ing 75
Ω double-terminated loads.
Differential and integral linearity errors, over full tempera-
ture and voltage ranges, are less than one LSB.
The peak white voltage (V
FR
- full range output voltage),
generated at the DAC, is defined according to the following
formula:
V
FR
= 3.35(V
REF
/ R
SET
)
*
75
where:
V
REF
is the voltage at VREF (either internal bandgap refer-
ence, or externally connected voltage reference).
R
SET
is the value of resistance between SETRES and
AV
SS
(typically 470
Ω).

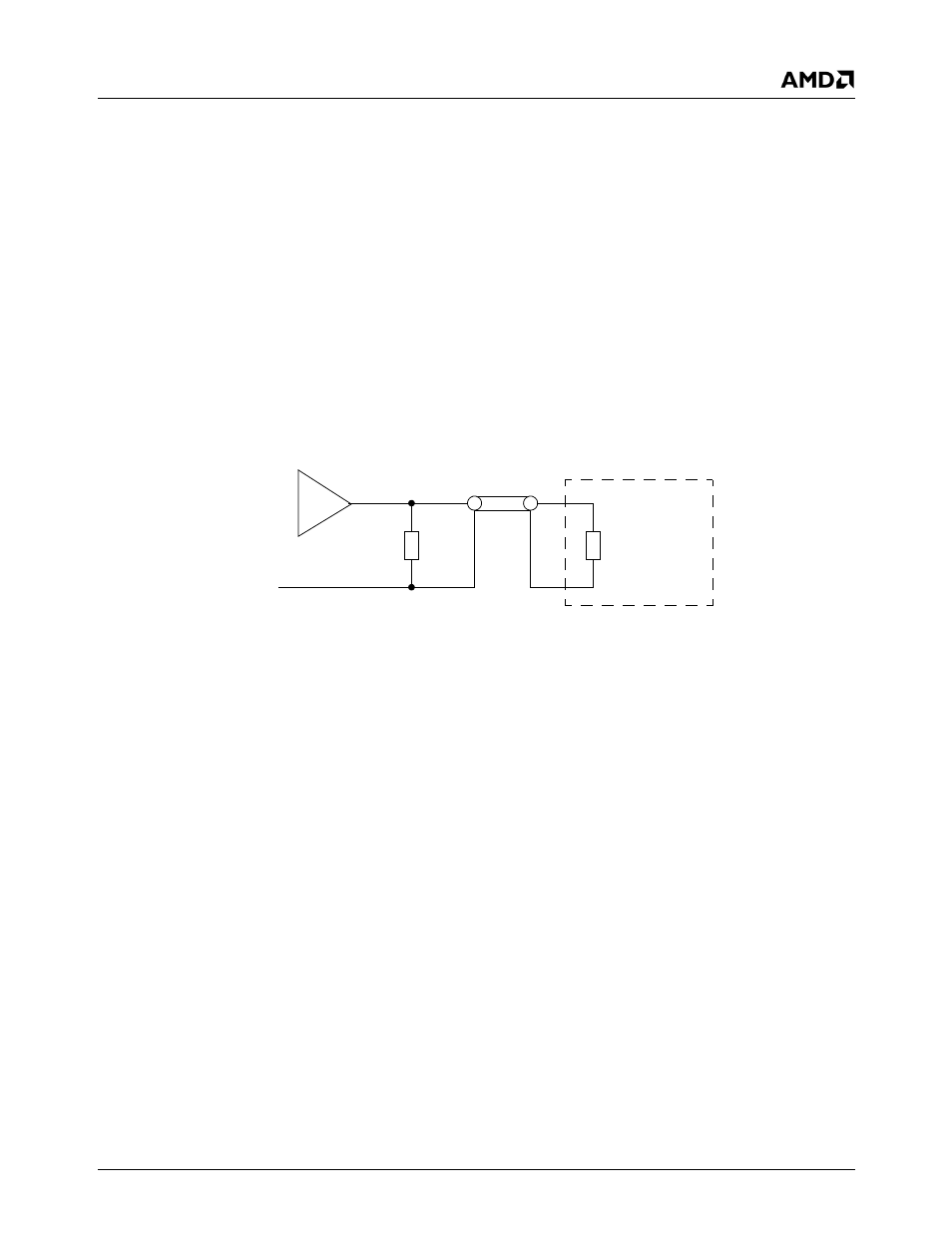

Figure 7-13. DAC Voltage Levels
DAC
AV
SS
CRT
R
L
R
L
Monitor
