Design Center

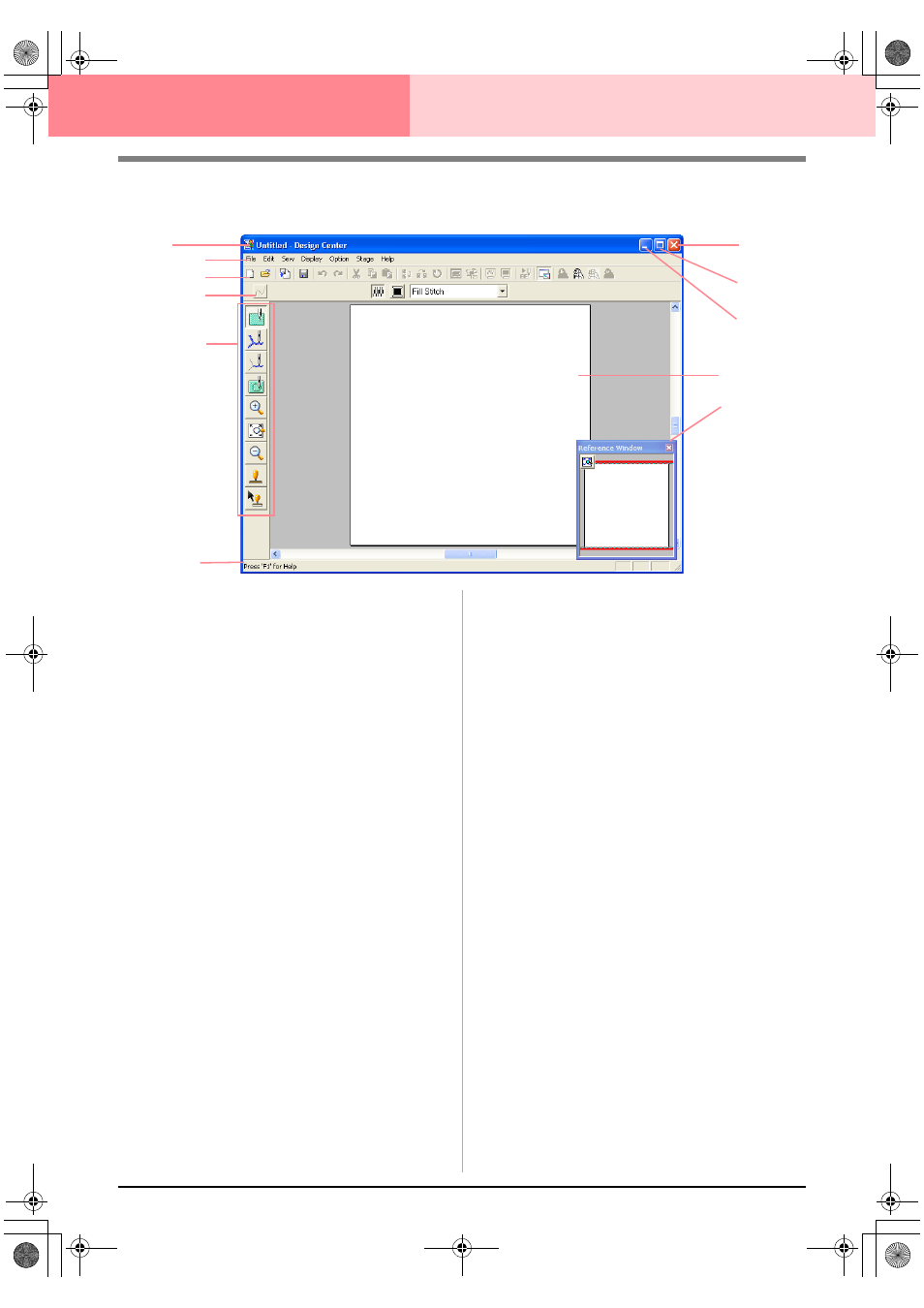

Main Window
1 Title bar
2 Menu bar
Provides access to the functions.
3 Toolbar
Provides shortcuts for the menu commands.
4 Sewing Attributes bar
Sets the sewing attributes (color and sew type)
of the lines and regions in the pattern
(only in stage 4 (Sew Setting stage))
5 Tool Box
Used to select and edit the image or pattern.
Stage 1 has no Tool Box; the other stages all
have a different tools in the Tool Box.
6 Status bar
Provides helpful information, such as the size.
7 Reference Window
Displays all outlines and patterns in the work ar-
ea, giving you an overview while you work on a
detailed area. (For more details, refer to “View-
ing Patterns in the Reference Window” on
page 103.)
8 Design Page
The actual part of the work area that can be
saved and sewn.
9 Minimize button
0 Maximize button
A Close button
