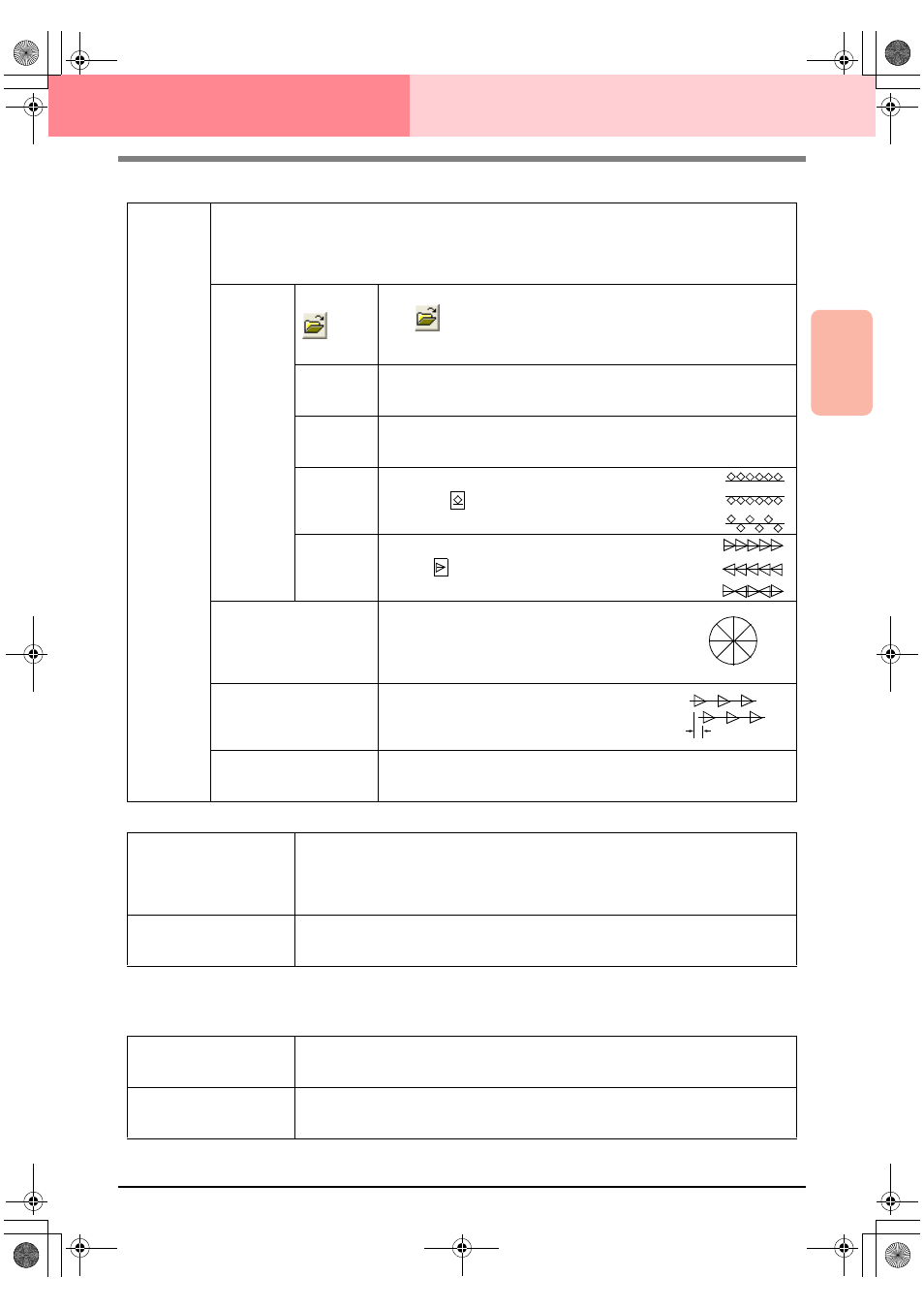

Advanced Opreation
Design Center
95
Design Center
Stage 4 (Sew Setting Stage)
Motif stitch
Cross stitch
Concentric circle stitch, radial stitch and spiral stitch
For details on moving the center point of the concentric circle stitch and the radial stitch, refer to “Moving the
center point of the concentric circle stitch and radial stitch” on page 97.
Motif
Selects whether to use pattern 1 or pattern 2 for the motif stitch. If you choose to use both patterns, the data
is created to sew alternating rows of the two.
Pattern1 only: Uses only pattern 1 (Default)
Pattern2 only: Uses only pattern 2
Pattern1 and 2: Uses pattern 1 and pattern 2
Pattern1
Pattern 2
Select a pattern for the motif stitch.
Click , and then, in the Browse dialog box that appeared, select the
folder containing the .pmf file that you want to use. Double-click the desired
pattern, or select it, and then click OK.
Width (hori-
zontal length)
Sets the pattern width (the direction along the line).
Range: 2–10 mm (0.08–0.39 inch)
Default: 5.0 mm (0.20 inch)
Height (verti-
cal length)
Sets the pattern height (the direction perpendicular to the line).
Range: 2–10 mm (0.08–0.39 inch)
Default: 5.0 mm (0.20 inch)
H-Arrange
(horizontal
arrange-
ment)
Sets the horizontal arrangement of the pattern. For
patterns like
, the patterns will be arranged along
the line as shown at the right.
V-Arrange
(vertical
arrange-
ment)
Sets the vertical arrangement of the pattern. For pat-
terns like
, the patterns will be arranged along the
line as shown at the right.
Direction
Allows you to rotate the angle of the motif stitch.
Range: 0–359 degrees
Default: 0 degrees
Row Offset
Sets the amount of offset for each row.
Range: 0–10 mm (0.00–0.39 inch)
Default: 0.0 mm (0.00 inch)
Run Pitch
Sets the pitch of the sewing.
Range: 1–10 mm (0.04–0.39 inch)
Default: 2.0 mm (0.08 inch)
Normal:
Mirror:
Alternate:
Normal:
Mirror:
Alternate:
0°
45°
90°
135°
180°
225°
270°
315°
Size
Sets the horizontal and vertical size of the pattern.
In Expert mode, the set value is converted automatically and displayed in the box for the other
measurement units.
Range: 1.5–5.0 mm (0.06–0.20 inch) or 5–17 counts
Default: 2.5 mm (0.10 inch) or 10 counts
Times
Sets the number of times that the pattern will be sewn. Sews twice per time.
Range: Single, Double, Triple
Default: Single
Density
Sets the number of lines per millimeter.
Range: 0.5–7.0 lines per mm (13–178 lines per inch)
Default: 2.0 lines per mm (51 lines per inch)
Run pitch
Sets the pitch of the line sewing.
Range: 1–10 mm (0.04–0.39 inch)
Default: 2.0 mm (0.08 inch)
