94
Design Center

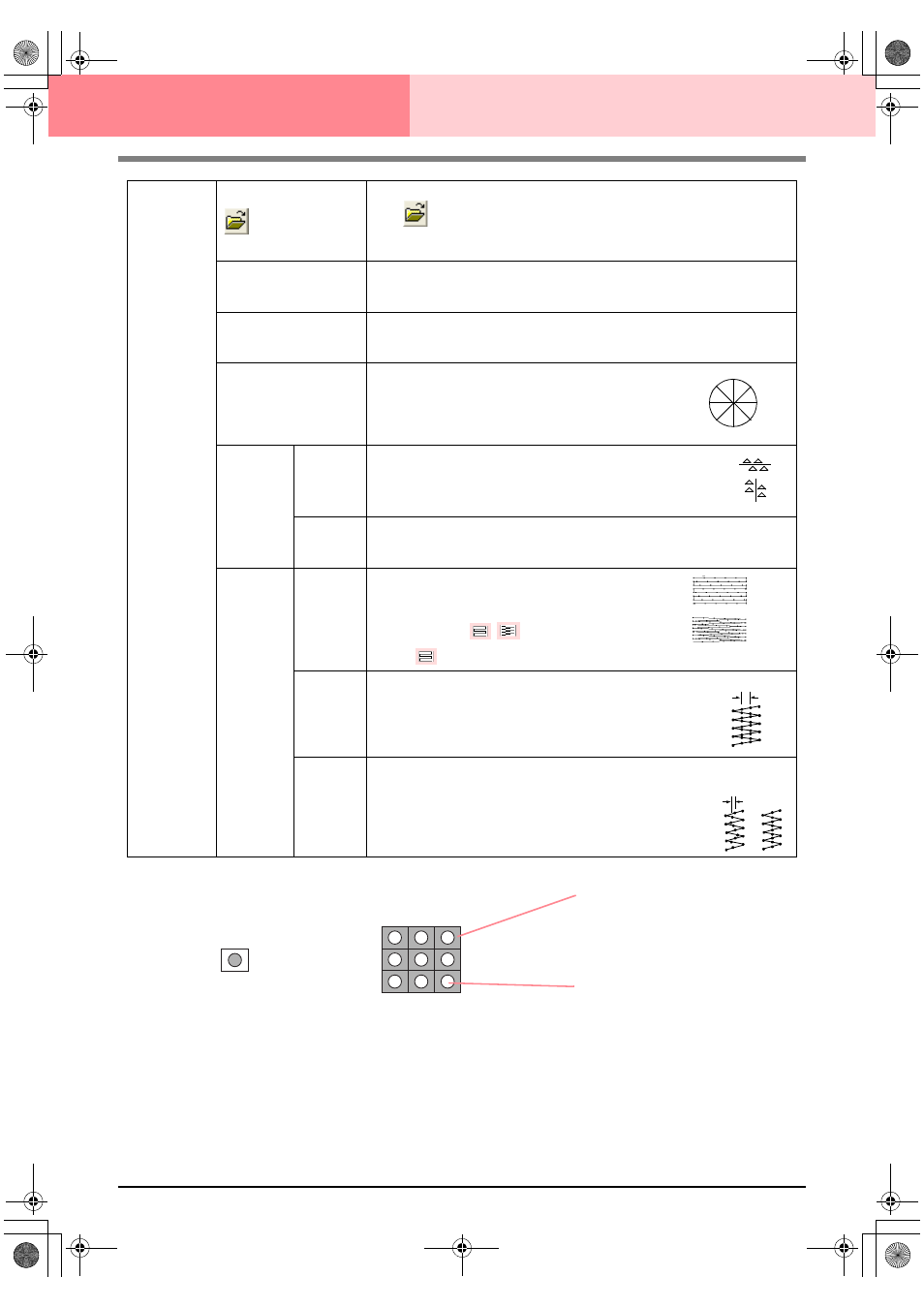

Stage 4 (Sew Setting Stage)
Programma-
ble fill
Select a pattern for programmable fill stitch.
Click , and then, in the Browse dialog box that appeared, select the folder
containing the .pas file that you want to use. Double-click the desired pattern, or
select it, and then click OK.
Width (horizontal length)
Sets the stitch pattern width.
Range: 2–10 mm (0.20–0.39 inch)
Default: 7.5 mm (0.30 inch)
Height (vertical length)
Sets the stitch pattern height.
Range: 5–10 mm (0.20–0.39 inch)
Default: 7.5 mm (0.30 inch)
Direction
Allows you to rotate the angle of the stitch patterns.
Range: 0–359 degrees
Default: 0 degrees
Offset
Direction
Sets the direction of the offset as row/column.
Value
When the pattern’s arrangement is offset, sets the amount of offset.
Range: 0–99%
Default: 0%
Base
Sew
Specifies
the base
stitching.
(For details,
refer to the
illustration
below.)
Stitch
Type
Specifies the shape of stitching on the edges.
Available only when the Base Sew check box is
selected.
Available settings: ,
Default:
Step Pitch
Sets the pitch of the stitching for the base of a programmable fill stitch.
Available only when the Base Sew check box is
selected.
Range: 1–10 mm (0.04–0.39 inch)
Default: 4.0 mm (0.16 inch)
Frequency
Sets the spacial frequency steps of the stitching for the base of a programmable
fill stitch.
Available only when the Base Sew check box is
selected.
Range: 0–99%
Default: 30%
0°
45°
90°
135°
180°
225°
270°
315°
row
column
Step pitch
0% 30%
Pattern
The stitching for the base (area
other than the pattern indicated
by the diagonal lines) of the pro-
grammable fill stitch can be set.
The pattern is sewn with the
specified stitching.
