Reference
Design Center
235
Design Center
Stage 4 (Sew Setting stage)
In stage 4 (Sew Setting stage), outline data from stage 3 (Figure Handle stage) are assigned line and region
sewing attributes. This is done by using the Tool Box and the Sewing Attributes bar.

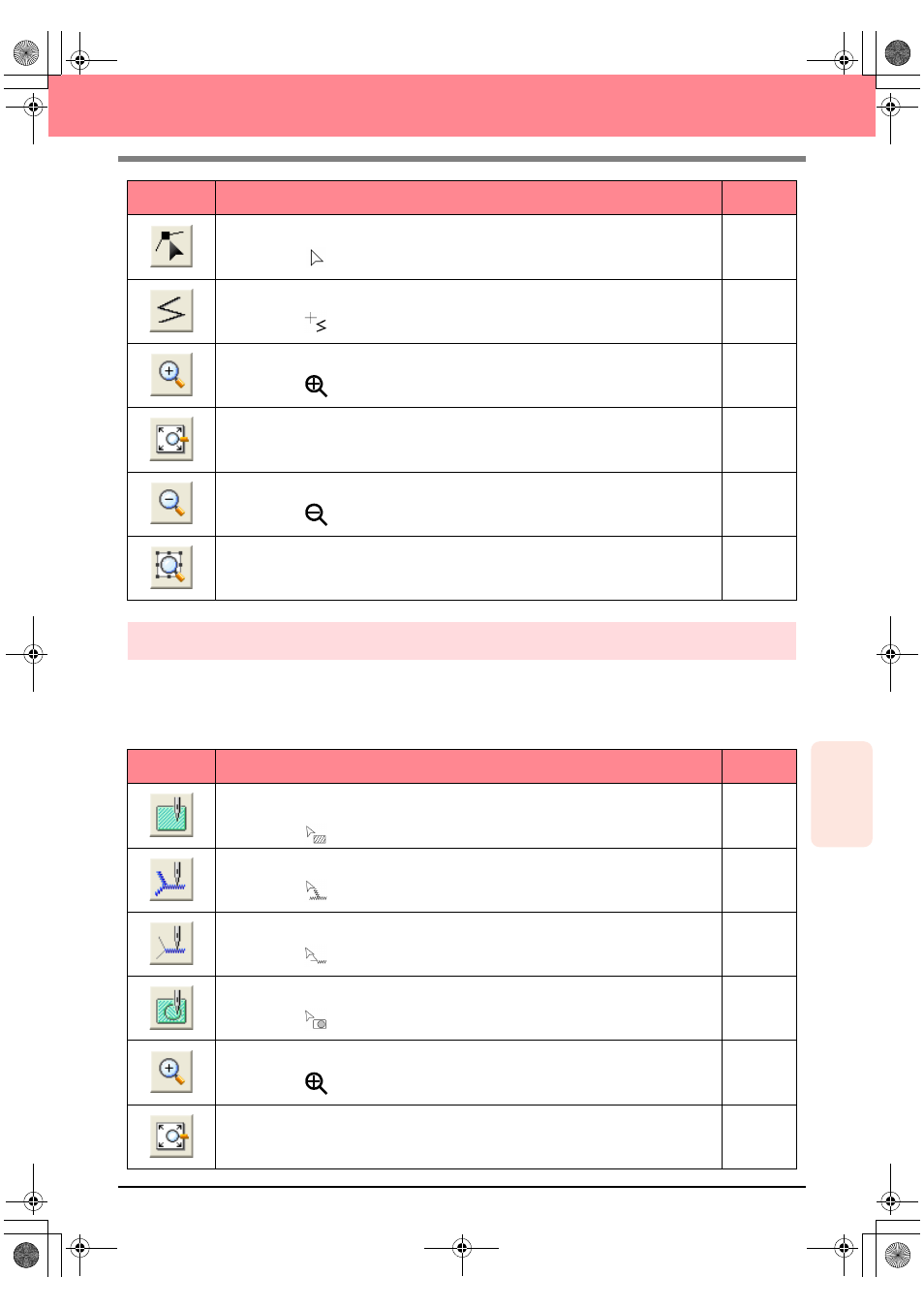

Selecting a button on the Tool Box changes the pointer mode and shape. A description of each tool appears
at the left side of the status bar.
Sets the pointer in point edit mode.
Pointer shape:
p. 81
Sets the pointer in line drawing mode.
Pointer shape:
p. 82
Sets the pointer in zoom-in mode.
Pointer shape:
p. 102
Maximizes the selected Design Page to fit in the window.
p. 32
Sets the pointer in zoom-out mode.
Pointer shape:
p. 102
Fills the display with the selected objects.
Tool Box Purpose See page
Sets the pointer in region sewing mode.
When you start up the application, this tool is selected.
Pointer shape: p. 84
Sets the pointer in line (all) sewing mode.
Pointer shape:
p. 85
Sets the pointer in line (part) sewing mode.
Pointer shape:
p. 86
Sets the pointer in hole sewing mode.
Pointer shape:
p. 97
Sets the pointer in zoom-in mode.
Pointer shape:
p. 102
Maximizes the selected Design Page to fit in the window.
p. 32
Tool Box Purpose See page
