Pulse and frequency output passive P
N
NAMUR, modular I/O
• Connection in conformity with EN 60947-5-6
• open:
I
nom
= 0.6 mA
closed:
I
nom
= 3.8 mA
• X designates the connection terminals A, B or D, depending on the version of the signal
converter.
INFORMATION!
•
Compact and field housing versions: Compact and field housing versions: Compact and field housing versions: Compact and field housing versions: Shield connected via the cable terminals in the terminal
compartment.
• Any connection polarity.

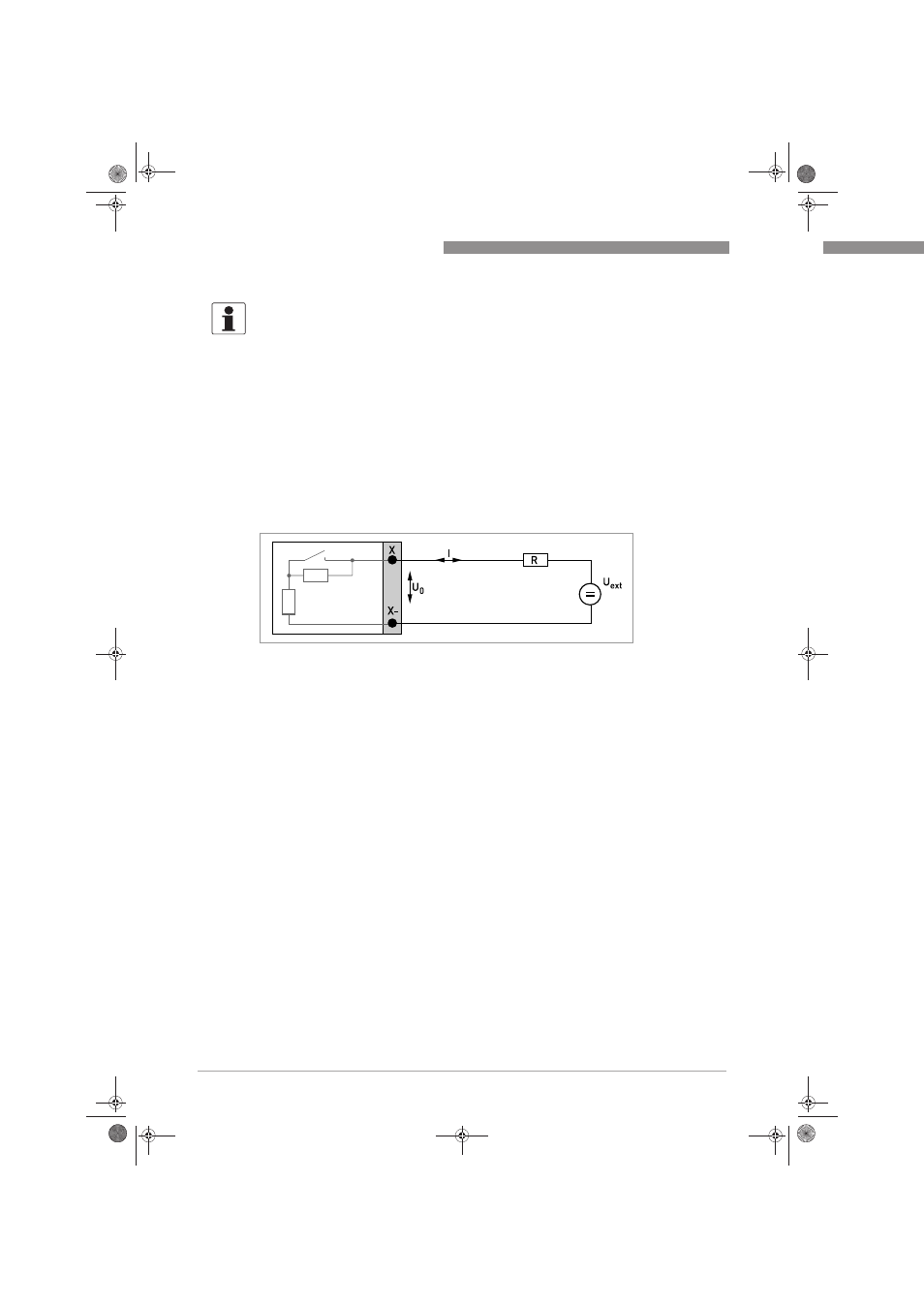

Figure 4-15: Pulse and frequency output passive P
N
to NAMUR EN 60947-5-6
