4
ELECTRICAL CONNECTIONS
24
MFC 400
www.krohne.com 08/2013 - 4002075802 - MA MFC 400 R02 en
4.4.2 Connection diagram
DANGER!
The device must be grounded in accordance with regulations in order to protect personnel
against electric shocks.

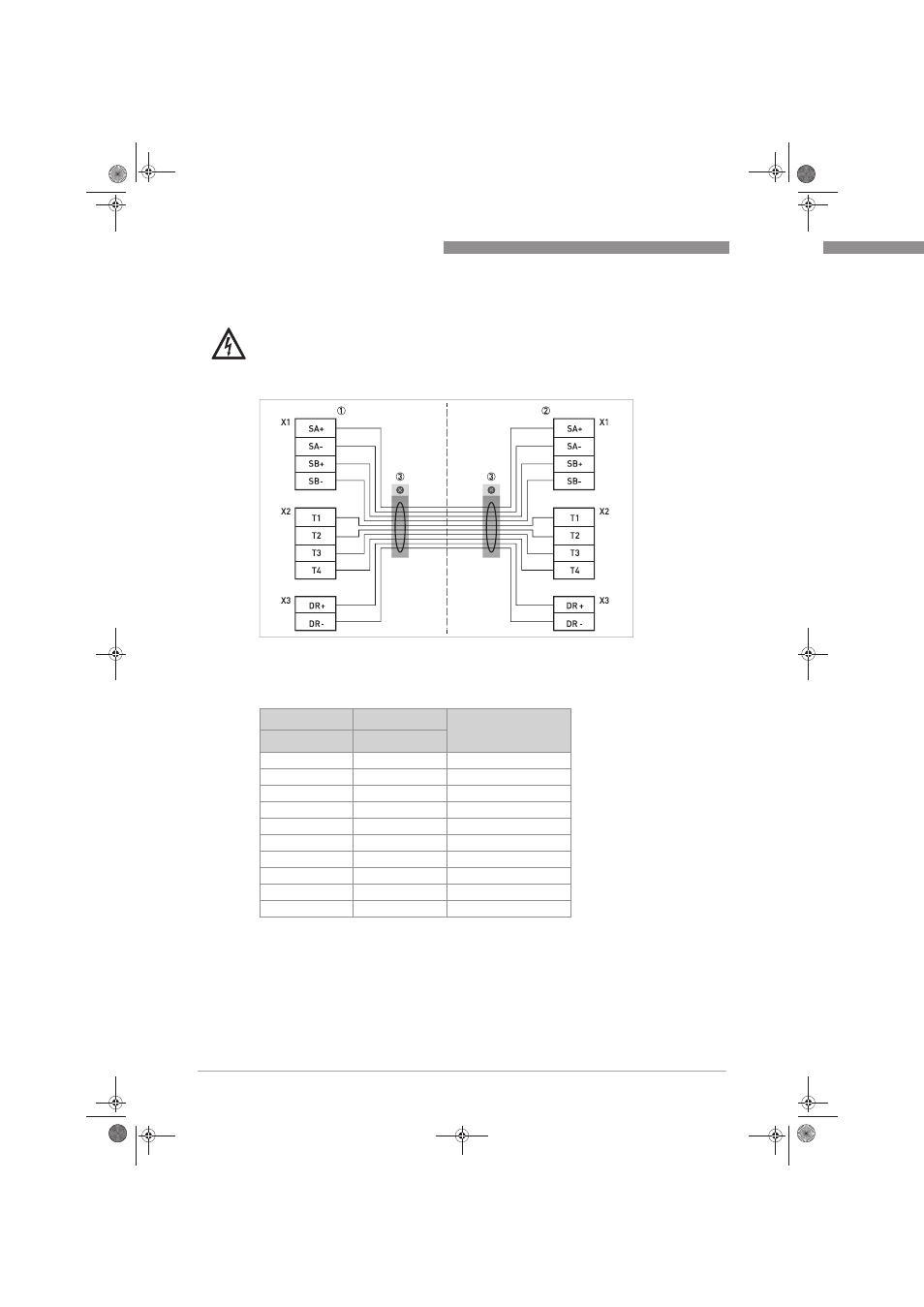

Figure 4-2: Connection diagram
1 Terminal compartment for signal converter
2 Terminal compartment for measuring sensor
3 Connect shielding to spring terminal (drain wire and overall shield)
Cable Cable Connection terminal
Cable pair Colour
1 yellow X1 SA+
1 black X1 SA-
2 green X1 SB+
2 black X1 SB-
3 blue X2 T1
3 black X2 T2
4 red X2 T3
4 black X2 T4
5 white X3 DR+
5 black X3 DR-
