SECTION 5: PROFILING

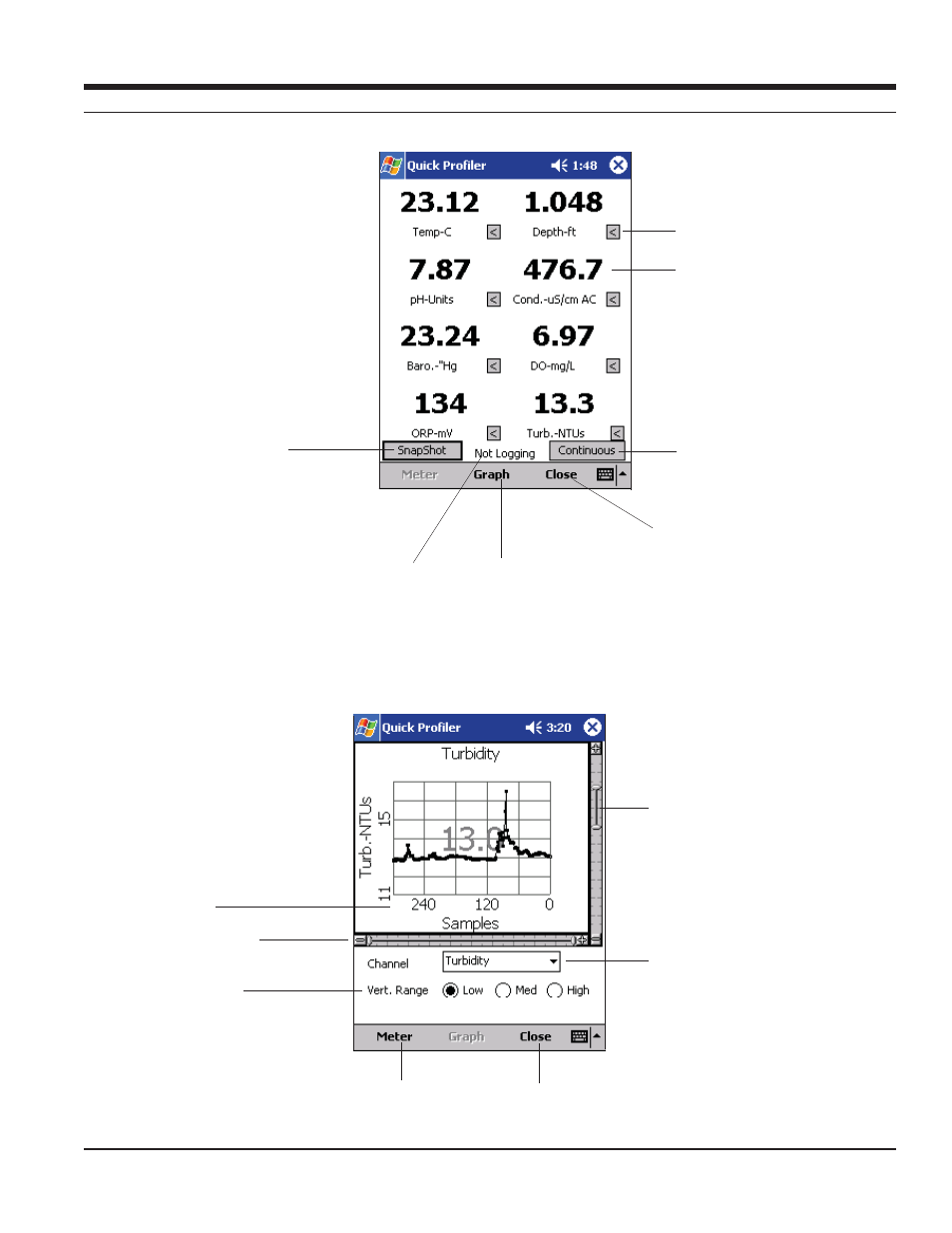

Close the Profiler and return to the
Parameter display
Display a graph of the data, starting with the first channel
Log next set of readings to
the Data Folder on the PC
Log continuously updated readings to the
Data Folder on the PC. Changes to “Stop
Log” during continuous logging.
Select a different channel for display
in this position
Profiler logging status
Click any reading to display a
graph of the channel
Select the channel to graph
Y axis range slider.
Double-click to zoom fully out;
double-click again to restore
Close the Profiler and return
to the Parameter view Return to the Profiler’s
channel display
Up to 300 readings (including
the current reading) can be
graphed
X axis range slider
Auto-scales the Y axis for the
selected range (available for
some channels)
