TROLL 9500 Operator’s Manual
0095110 rev. 007 01/09

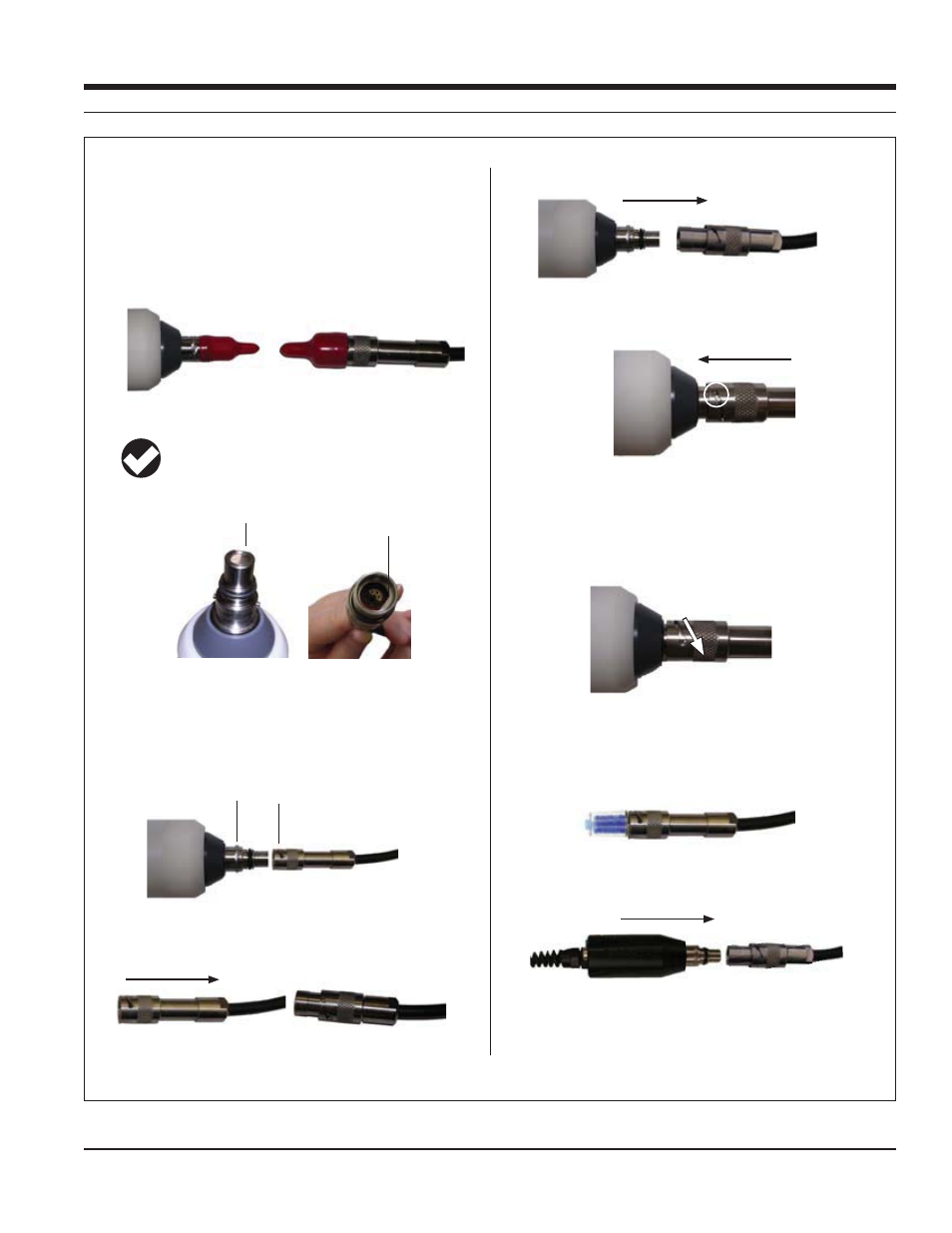

TWIST-LOCK CABLE CONNECTIONS
RuggedCable mates to the TROLL 9500 and to Cable Connect
TROLL Coms with a bayonet-type Twist-Lock connector.
1. Remove the soft protective caps from the TROLL 9500 and the
cable.
TIP: Keep the dust caps to protect the connector pins and
o-ring when the connectors are not mated.
Note the pins on the body connector (one on each side) and the
diagonal slots on the cable connector (one on each side).
3. Slide back the sleeve on the cable connector.
connector firmly into the cable connector.
5. Slide the sleeve on the cable toward the body until the pin on the
body pops into the round hole in the slot on the cable.
6. Grasp the textured section of the cable connector in one hand
and the body in the other. Push and twist firmly so that the pin
on the body slides along the slot on the cable and locks securely
into the other hole. The “click” ensures the cable is securely
attached.
To attach a Cable Connect TROLL Com, first remove the desiccant
from the cable (if present): Grasp the textured section of the cable
connector in one hand and the desiccant in the other. Twist in op-
posite directions to unlock the desiccant from the cable.
/RIENT
Push, twist, and click to lock.
TROLL 9500
(or Cable Connect TROLL Com)
Cable
Flat
Flat
TROLL 9500
(or Cable
Connect
TROLL Com)
Cable
pin
slot
SECTION 3: GETTING STARTED
