TROLL 9500 Operator’s Manual

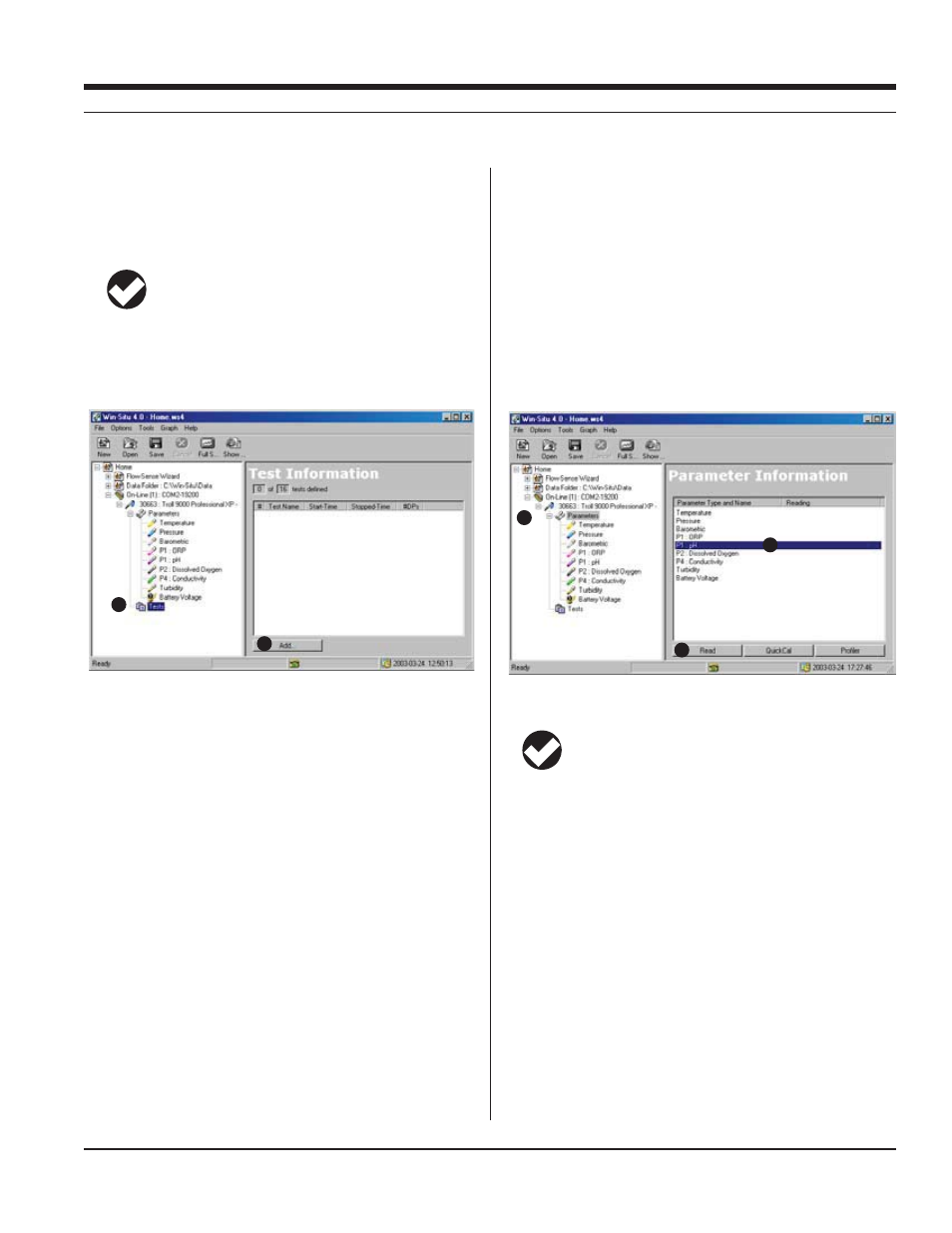

LOGGING DATA (ADDING A TEST)
Logging data with the MP TROLL 9500 is called “running a test.” To
tell the instrument how to run the test—which parameters to measure,
how often, when to start, etc.—you “add” a test to the device.
TIP: For more on logging, extracting, viewing, and deleting
data, refer to Section 6.
1. With the MP TROLL 9500 connected to a host PC and selected in
the Navigation tree, click or tap Tests.
2. Click or tap Add....
The Test Wizard starts. See Section 6 for a description of the ele-
ments that constitute a complete test definition.
3. When you finish the Wizard, the information is sent to the device
and the display is updated.
SECTION 4: CONTROL SOFTWARE
1
2
3
1
2
TAKING “MANUAL” READINGS
The MP TROLL 9500 collects data in “tests” but you can get a quick
“manual” reading from any device apart from a test, even while a test
is running.
1. With the MP TROLL 9500 connected to a host PC and selected in
the Navigation tree, click or tap Parameters.
2. In the Information pane, select one or more parameters to read. To
select multiple parameters, hold the Control key while selecting.
(To display the CTRL key on a PDA, tap the keyboard symbol in
the Command bar.)
3. Click or tap Read.
TIP: For continuously updated real-time “manual” readings
of all parameters, select Profiler in the Information pane.
Refer to Section 5 for Profiler information.
