CONFIGURATION
95
Horizontal View
This section describes how to set the horizontal scale, position, and
waveform display mode.

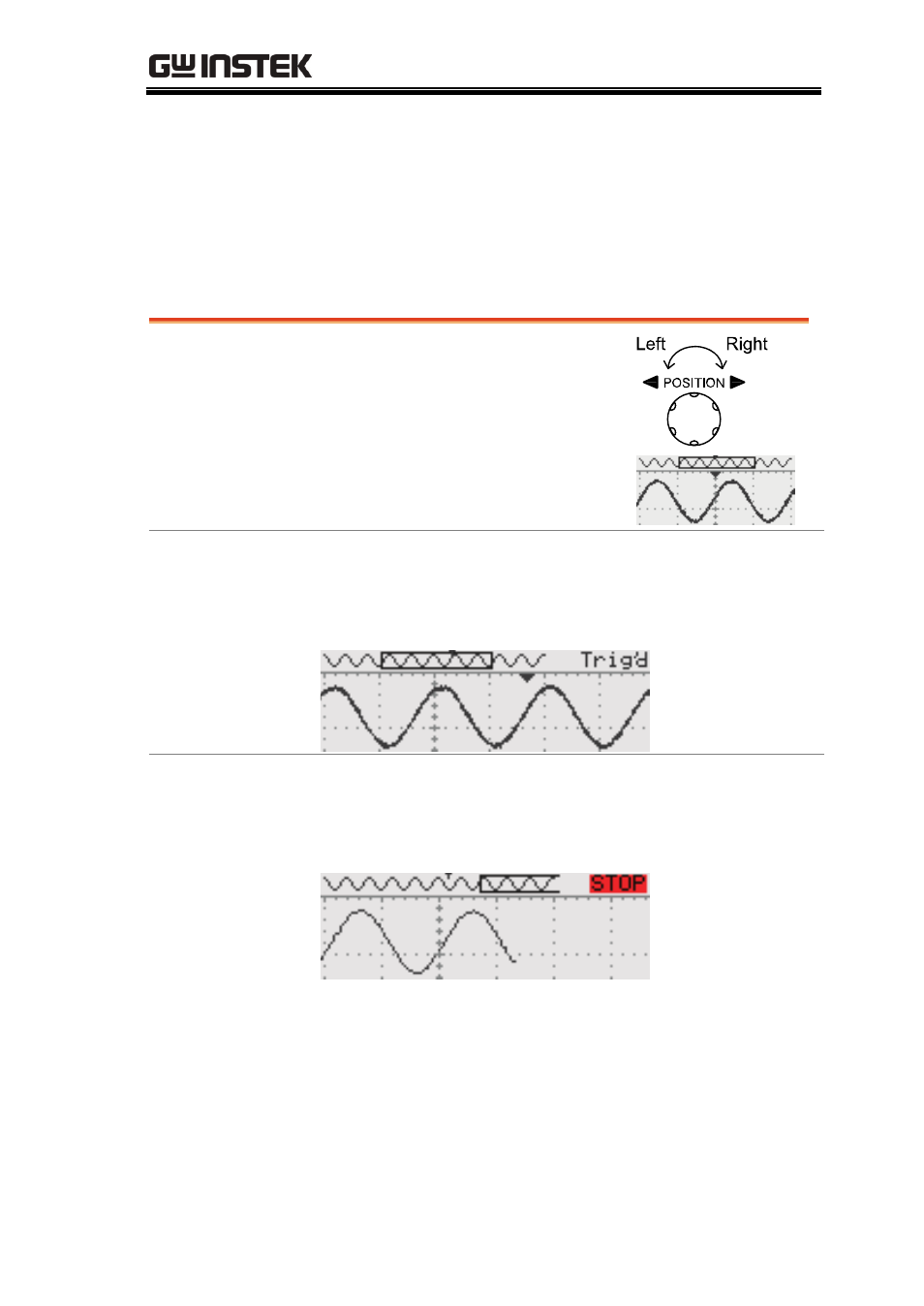

Move waveform position horizontally
Panel operation The horizontal position knob
moves the waveform left/right.
As the waveform moves, the
memory bar appears on the top
of the display indicating the
portion of displayed waveform
in the memory.
Run mode In Run mode, the memory bar keeps its relative
position in the memory since the entire memory is
continuously captured and updated.
Stop mode In Stop mode, the memory bar moves along with
the waveform until it reaches the end of the
memory.
