GDS-2000 Series User Manual
52

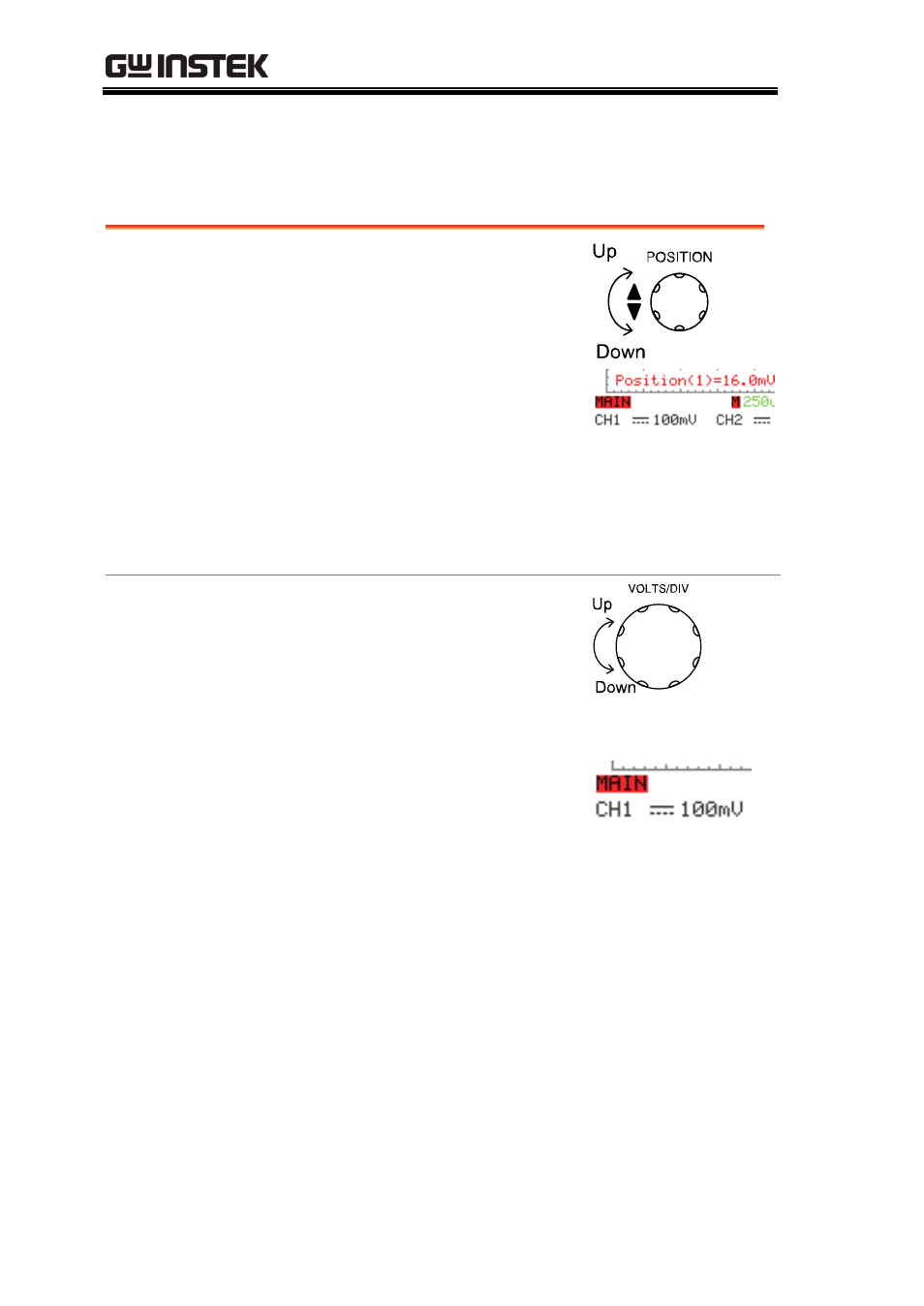

Vertical position/scale
For more detailed configuration, see page102.
Set vertical
position To move the waveform up or
down, turn the vertical position
knob for each channel.
As the waveform moves, the
vertical position of the cursor
appears at the bottom left
corner of the display.
Run/Stop
mode
The waveform can be moved
vertically in both Run and Stop
mode.
Select vertical
scale To change the vertical scale,
turn the VOLTS/DIV knob; left
(down) or right (up).
Range 2mV/Div ~ 5V/Div, 1-2-5 increment
The vertical scale indicator for
each channel on the bottom left
of the display changes
accordingly.
Stop mode In Stop mode, the vertical scale
setting can be changed but the shape
of the waveform does not change
until the next acquisition.
