GDS-2000 Series User Manual

146

P

RINT OUT

Display printout is also available using proprietary PC software,
downloadable from GWInstek website.

Overview

Printout step

Listed below are the steps that have to be followed
when printing out the display image through USB
connector.

1. Connect the printer to the USB host port

2. Configure the interface to printout mode

3. Configure the content and printout

4. Printout

1 Connect printer

1. Connect the printer to the USB host port, front

or rear panel.

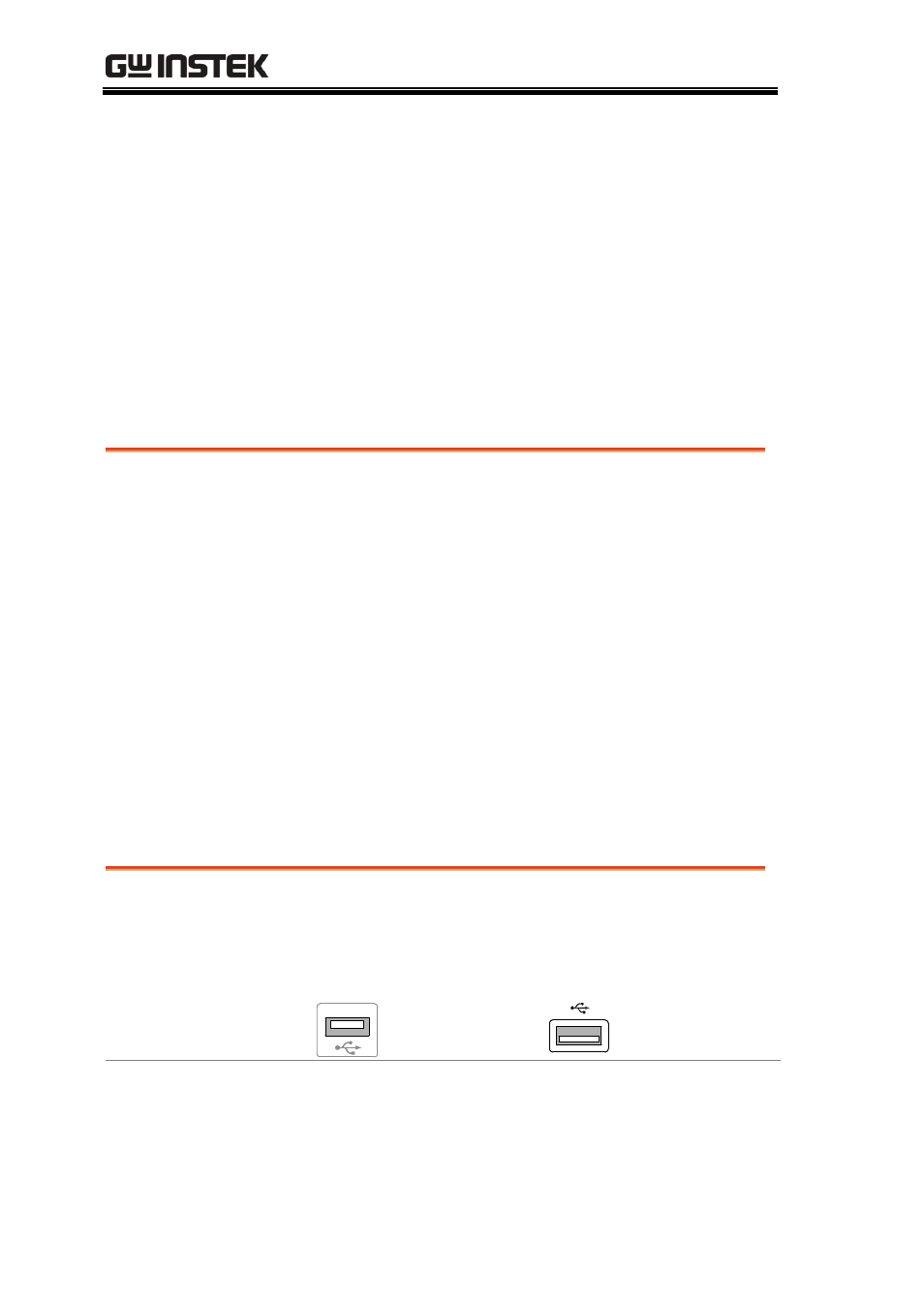

Front panel

Rear panel

USB Note

Using the front and rear USB host port at the same
time is forbidden (Example: printer to the rear
panel, storage device to the front panel).
